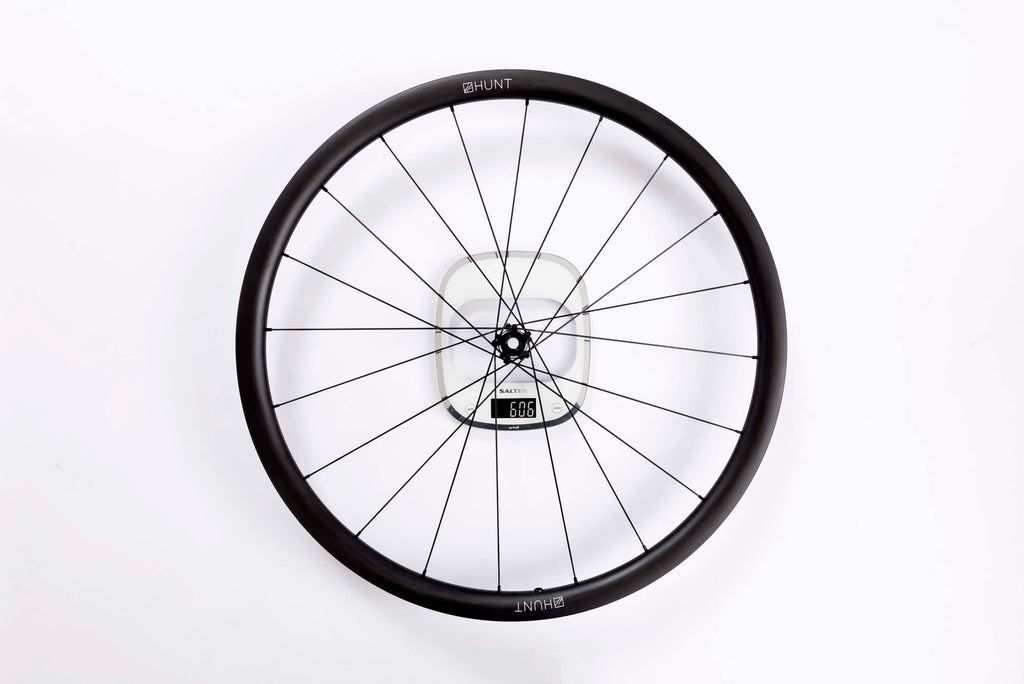

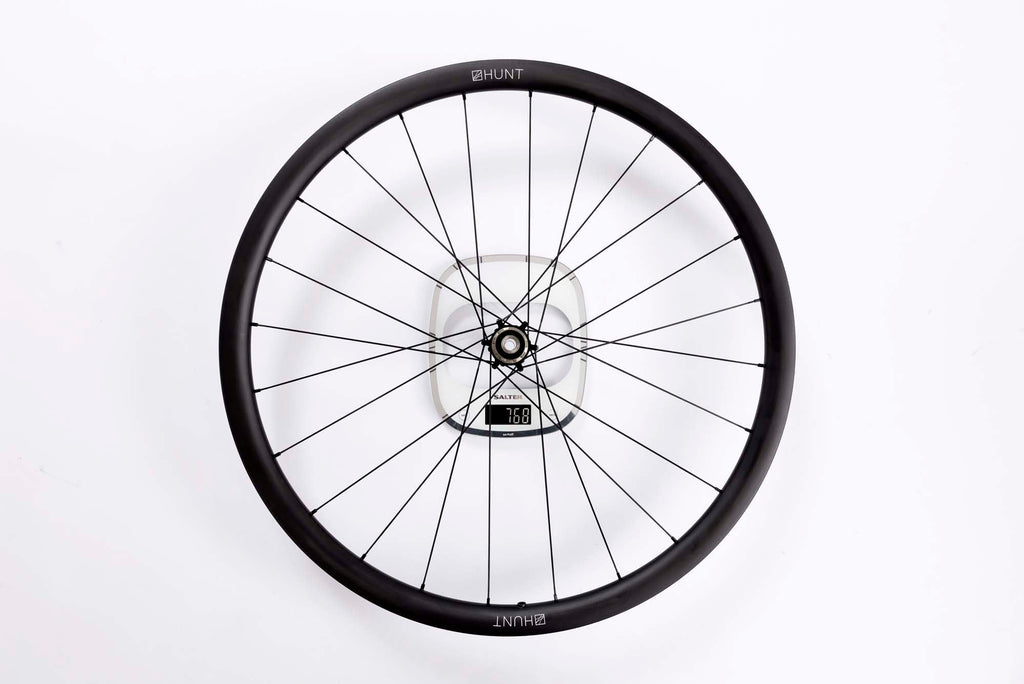

<h1>Weight</h1><i>The consequence of the fanatical attention to detail is an outstandingly light 1374g wheelset weight. We can't promise you'll be the next Quintana but you will seriously notice the climbing and acceleration prowess, don't tell your ride mates the secret!</i>

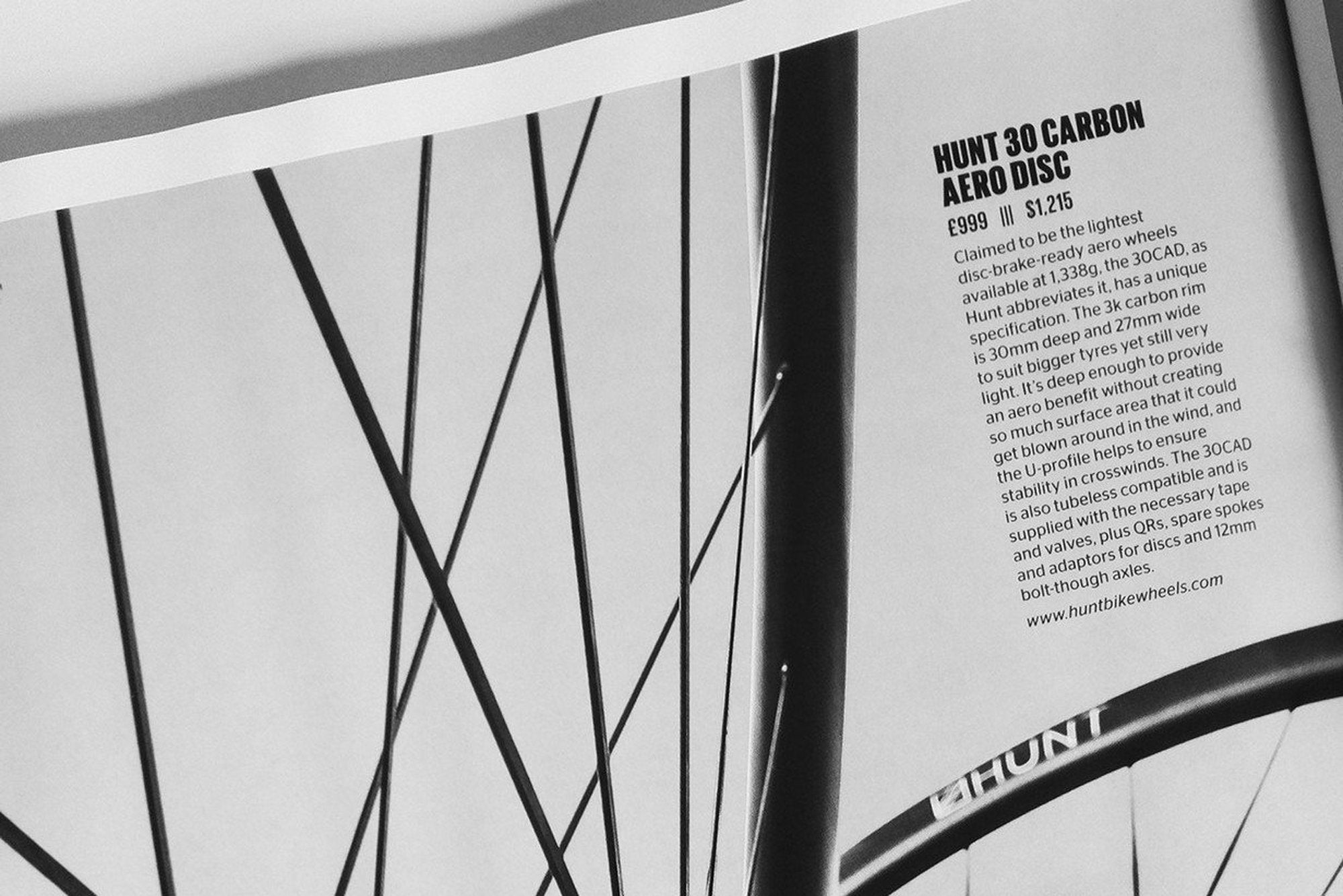

<h1>HUNT 30CARBON AERO DISC REVIEW PRO CYCLING MAGAZINE.</h1>
<h1>In the Box</h1><ul><li>Hunt Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>
<h1>Rims</h1><i>A strong and super-lightweight rim featuring unidirectional Toray T700/T800 carbon fibre with 3K weave re-enforced spoke holes. The wide aero profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim-brake rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on it's primary roles of supporting the tyre and spoke forces.</i>
<h1>Rim Surface</h1><i>V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.</i>
<h1>Bearings</h1><i>The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings. This wheelset has three of the rear hub bearings upgraded to low-friction LU/LB seals on the internal bearing face to further reduce rolling resistance whilst maintaining excellent sealing on the exposed faces.</i>
<h1>Freehub Body</h1><i>Durability is a theme for Hunt as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.</i>
<h1>Spokes</h1><i>We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a hex head so you can achieve precise tensioning. Combining these components well is key which is why all Hunt wheels are hand-built.</i>
<h1>Rim Bed</h1><i>H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tires. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
<h1>Adaptability</h1><i>Our wheels are seriously future-proof. We can adapt your wheels to any current axle standard, you just need to let us know what you require by filling in the simple form on the confirmation page after checkout. Please note these wheels will not work with the older 15mm front road TA standard.</i>
<h1>Tires</h1><i>At Hunt we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow you the same option, but of course these tubeless-ready wheels are also designed to work perfectly with inner tubes, just use tubes in tubeless ready tires.</i>
<h1>Weight</h1><i>The consequence of the fanatical attention to detail is an outstandingly light 1374g wheelset weight. We can't promise you'll be the next Quintana but you will seriously notice the climbing and acceleration prowess, don't tell your ride mates the secret!</i>
<h1>HUNT 30CARBON AERO DISC REVIEW PRO CYCLING MAGAZINE.</h1>
<h1>In the Box</h1><ul><li>Hunt Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>

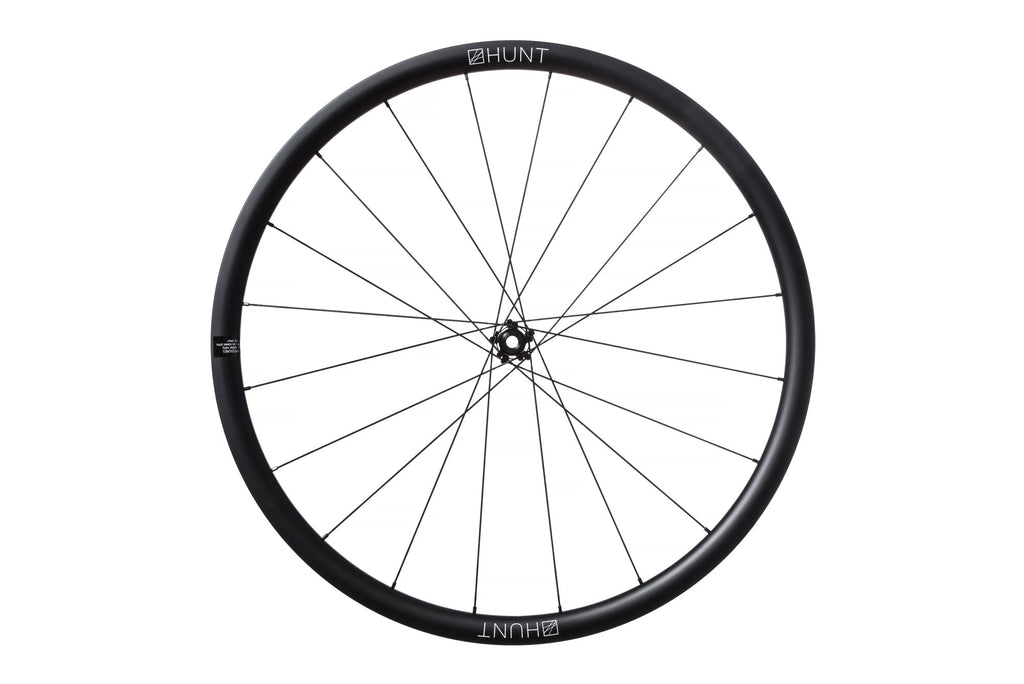

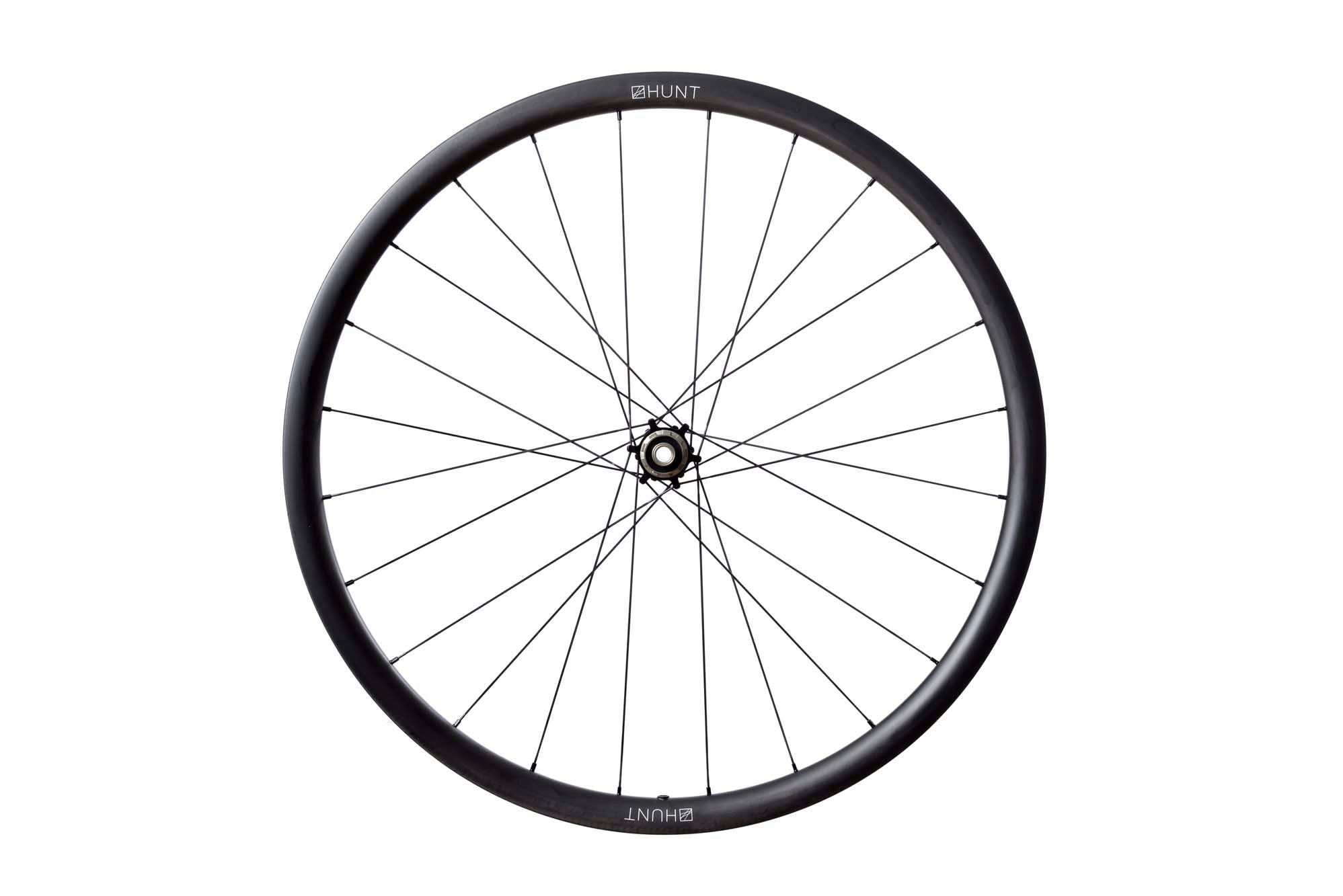

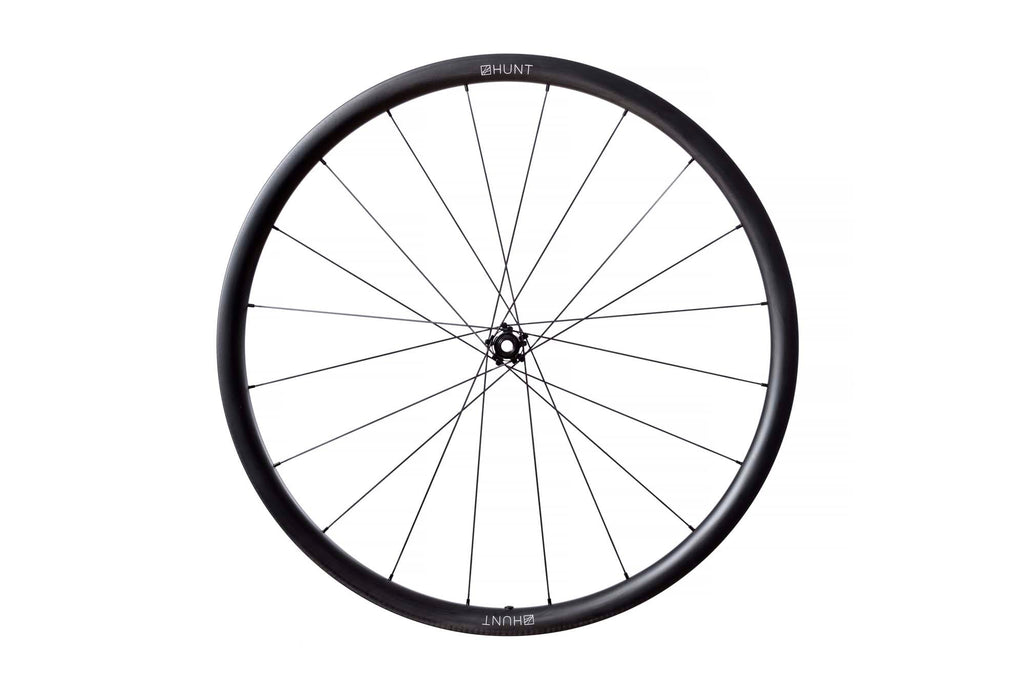

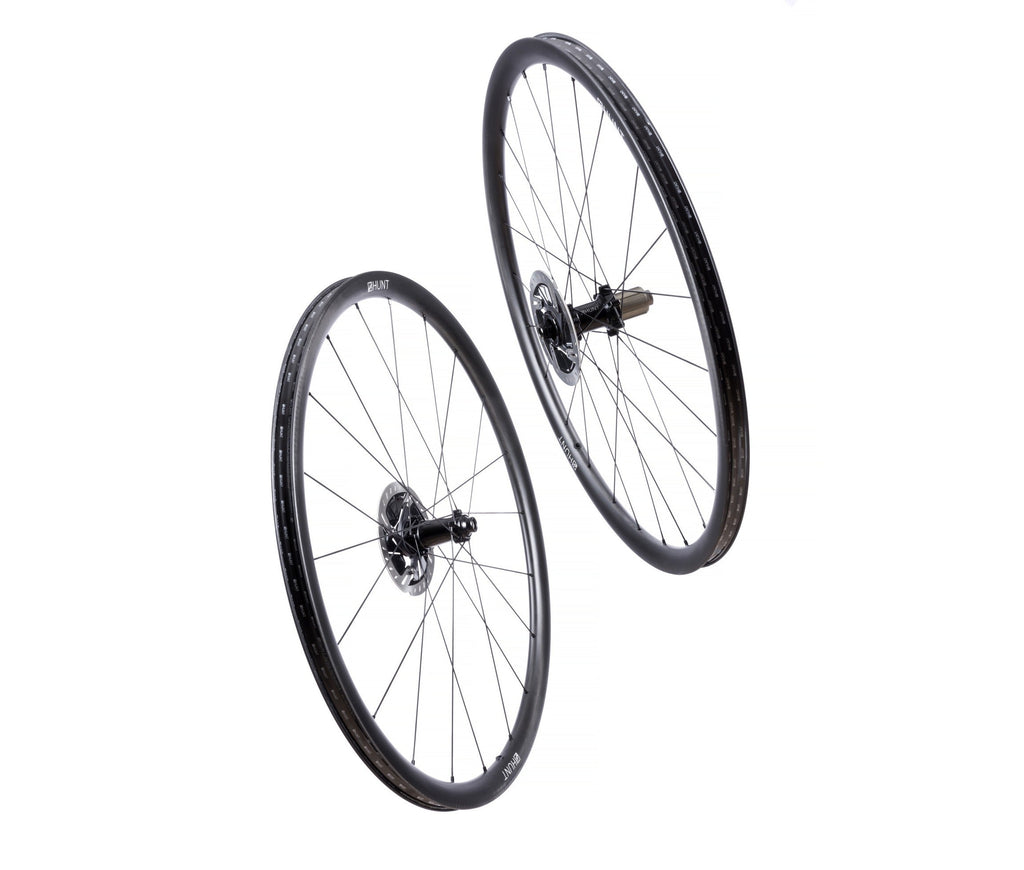

HUNT 30 Carbon Aero Disc Wheelset

1357g Depth Width ext Width int size
30 mm 27 mm 21 mm 700c

Aero, wide, and incredibly lightweight. Designed specifically for disc braking for riders looking to improve their bike's acceleration and cornering capabilities with an exceedingly lightweight, well-rounded carbon wheelset.

Tyre size: Optimized for 25 to 28mm tyres; work well with 23mm up to 40mm.

More details Right

The Purpose _

The 30 Carbon Aero Disc being used out on the road

The Purpose _

Look no further for a do-it-all carbon disc-brake wheelset than the 30 Carbon Aero Disc. Ultimate climbing performance, and incredibly capable on rolling terrain. The super-wide 27mm rim provides superior aerodynamic performance. The U-profile serves up great handling and reduces drag across multiple wind yaw-angles. The extra-wide 21mm internal rim bed opens out your tyre profile providing exceptional vibration reduction, grip and low rolling-resistance. Stretch the gaps and burn the legs of your riding compatriots.

The straight pull hubs and bladed spokes reduce weight, add strength and respond instantly to your accelerations. The freehub body on the HUNT Sprint hub features 48 teeth on the ratchet ring, and treble-tooth pawls, providing incredible 7.5 degree engagement. Perfect for when the hammer goes down and you need an instant response.

The latest breed of tubeless tyres give-up nothing in weight to their clincher counterparts, as well as removing the tube for weight saving and reducing rolling resistance, so tubeless-ready was essential. Go on, scare the climbers with your discs!

KEY FEATURES_

Rims

Toray T700/T800 carbon-fibre. Unidirectional sidewalls with 3K weave bed and spoke areas, the wide aero profile delivers excellent handling and speed.

<h1>Tyres</h1><i>At HUNT we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow you the same option, but of course these tubeless-ready wheels are also designed to work perfectly inner tubes, just use tubes in tubeless ready tyres.</i>

Spokes

Black Pillar PSR EXTRA Spokes with increased wear and corrosion resistance.

Hubs

Race Season SPRINT straight-pull hubs, boasting an engagement rate of just 7.5° owing to the leaf-sprung, multi-point pawls and 48 ratchets in the hub shell. Center-lock brake mount.

Full Specs _

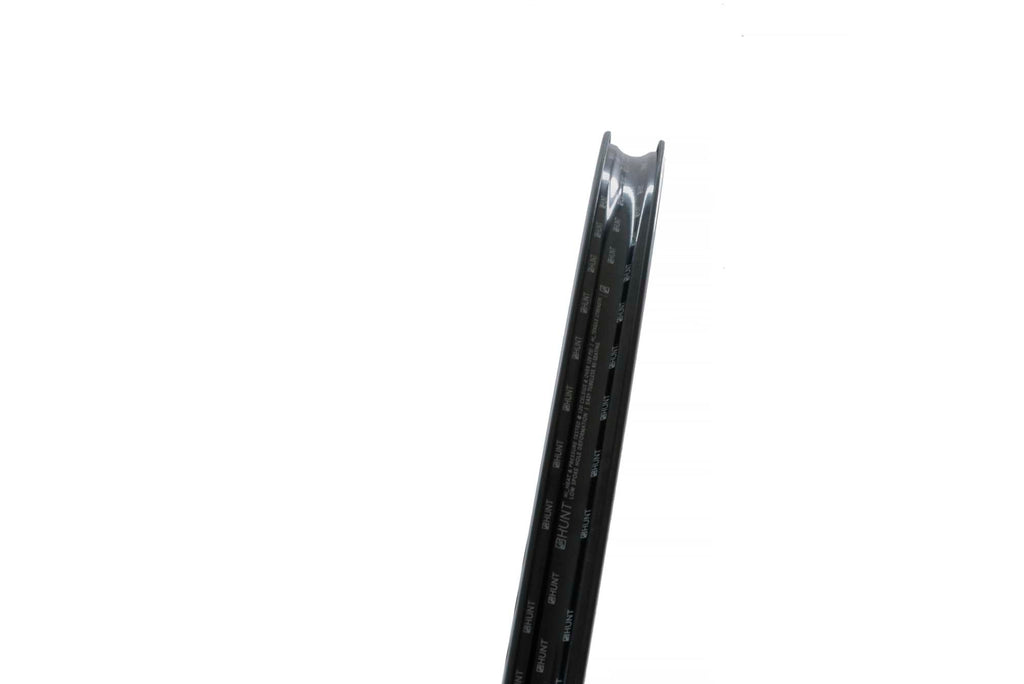

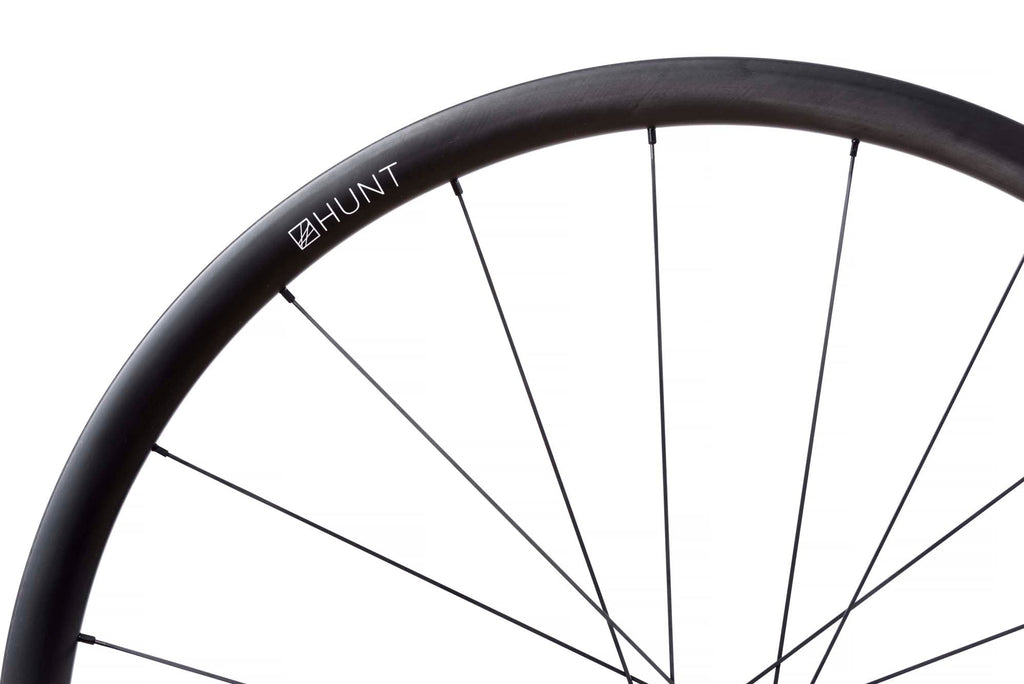

Rims
Hooked tubeless-ready rim profile. Full carbon fiber construction with re-enforced spoke holes. 30mm external and 22m internal width. 30mm depth UD finish with matte white contrasting graphics.
  • Hooked tubeless-ready rim profile.
  • Full carbon fiber construction with re-enforced spoke holes.
  • 30mm external and 22m internal width.
  • 30mm depth
  • UD finish with matte white contrasting graphics.
Spokes
24 front and 24 rear laced 2 cross. J-bend cold drawn. Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden. Front Triple butted 2.0-1.5-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement). Rear Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement). Black stainless treatment.
  • 24 front and 24 rear laced 2 cross.
  • J-bend cold drawn.
  • Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
  • Front Triple butted 2.0-1.5-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
  • Rear Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
  • Black stainless treatment.
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. 16mm length with washer for a strong connection to the spoke added durability. 14 gauge. Black anodized finish.
  • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
  • 16mm length with washer for a strong connection to the spoke added durability.
  • 14 gauge.
  • Black anodized finish.

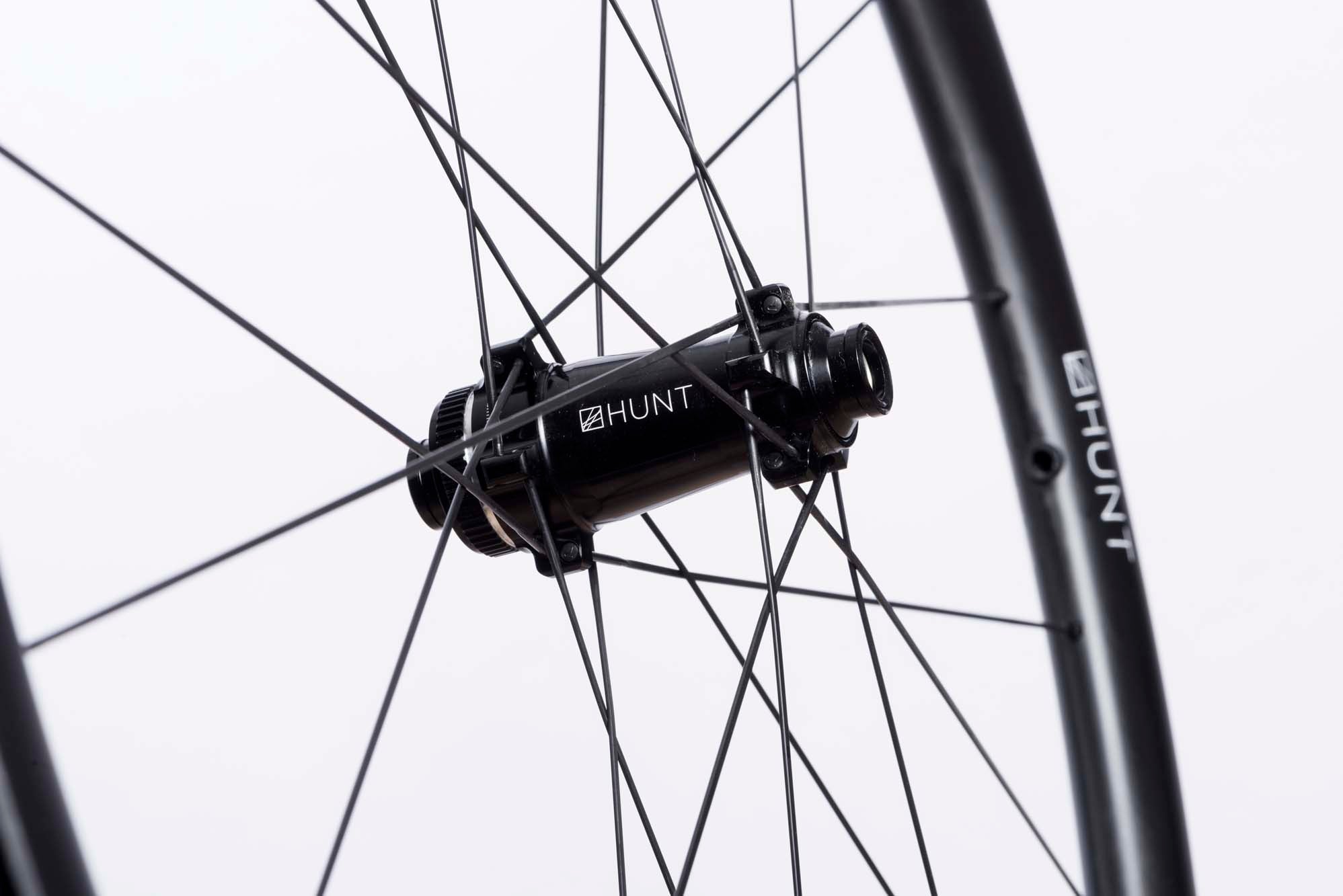

Front Hub
Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Polished anodized black finish with laser graphics. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Polished anodized black finish with laser graphics.
  • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

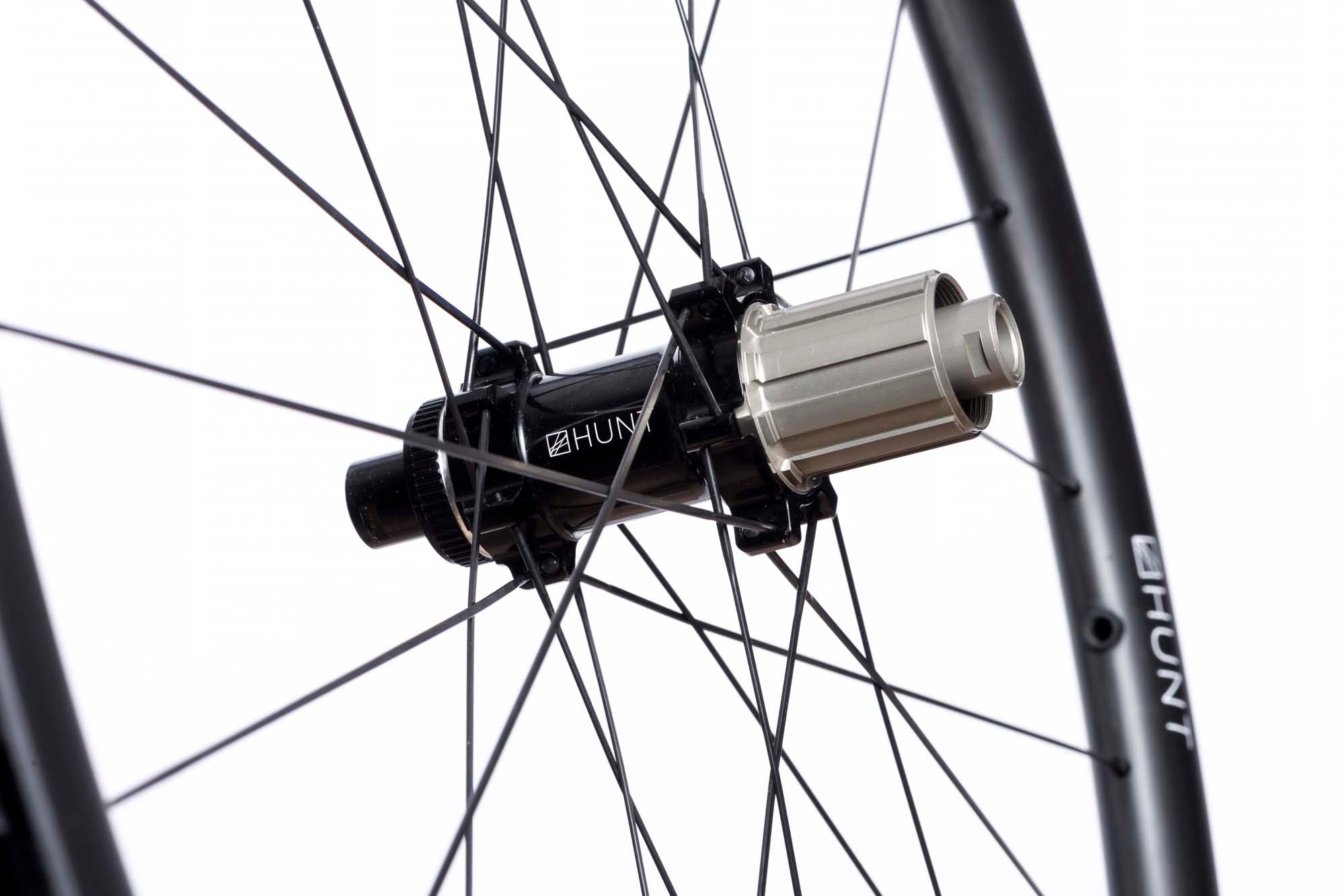

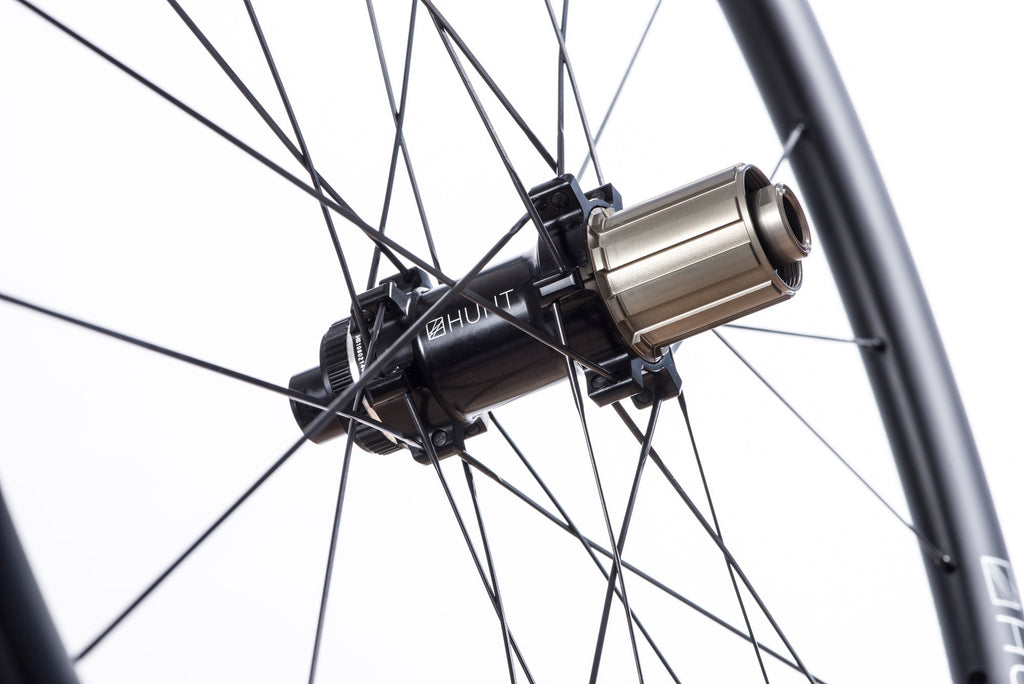

Rear Hub
HUNT H_Ratchet 36T SGL. H_CERAMIK freehub body re-enforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance. Single 36T Ratchet Ring equals 10° engagement. Forged and CNC'd 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Polished anodized black finish with laser graphics. All freehub standards accounted for. Please note: if you require a 6 bolt adaptor you can purchase separately here.
  • HUNT H_Ratchet 36T SGL.
  • H_CERAMIK freehub body re-enforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance.
  • Single 36T Ratchet Ring equals 10° engagement.
  • Forged and CNC'd 6061-T6 heat treated aluminium alloy body.
  • 7075-T6 aluminium alloy axles.
  • Polished anodized black finish with laser graphics.
  • All freehub standards accounted for.
  • Please note: if you require a 6 bolt adaptor you can purchase separately here.
Bearings
Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather. Sealed cartridge replaceable units. Dual full-contact seals.
  • Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
  • Sealed cartridge replaceable units.
  • Dual full-contact seals.
Tyres Info
For the 30 Carbon Disc, HUNT recommends a 25-35mm tire for best performance, tire widths between 25mm and 50mm are also safe to use.   Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • For the 30 Carbon Disc, HUNT recommends a 25-35mm tire for best performance, tire widths between 25mm and 50mm are also safe to use.
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
  • Tubeless-ready for lower weight and rolling resistance.
  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order. *Shimano Microspline & Campagnolo CN3W is only available in 12x142mm

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:

  • Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm
  • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
  • If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.

*Shimano Microspline & Campagnolo CN3W is only available in 12x142mm

HIGH SPECIFICATION COMPONENTS _

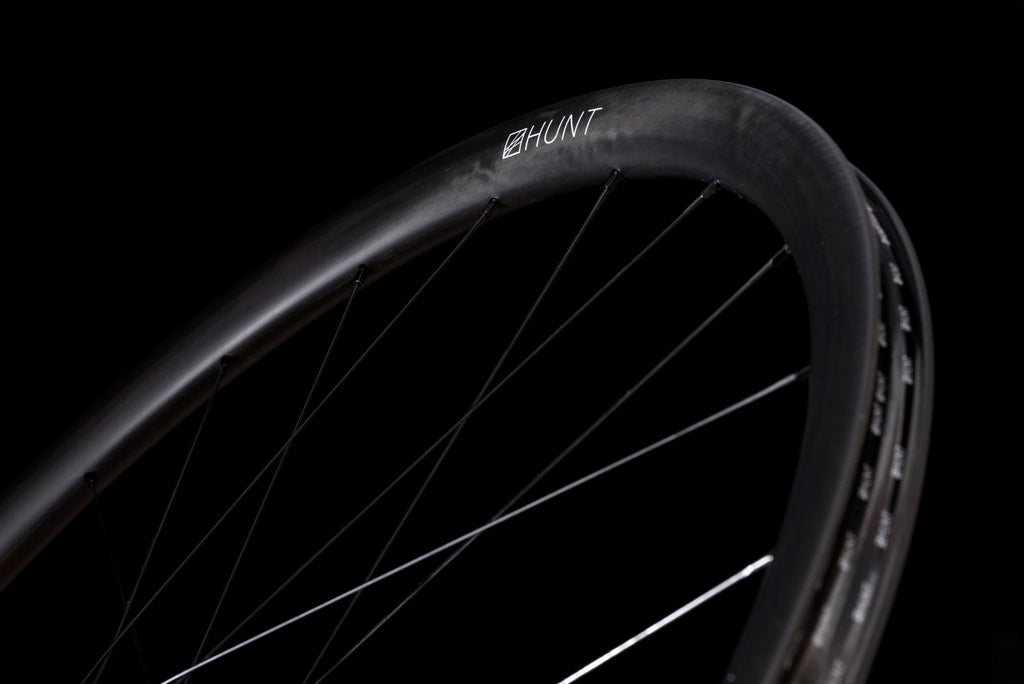

Rims

A strong and super-lightweight rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The wide aero profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim-brake rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on it's primary roles of supporting the tyre and spoke forces.

<h1>Tyres</h1><i>At HUNT we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow you the same option, but of course these tubeless-ready wheels are also designed to work perfectly inner tubes, just use tubes in tubeless ready tyres.</i>
Rim Bed

H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.
Rim Surface

V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.
Bearings

The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings by Japanese experts EZO. This wheelset has three of the rear hub bearings upgraded to S&S low-friction LU/LB seals on the internal bearing face to further reduce rolling resistance whilst maintaining excellent sealing on the exposed faces.
Freehub Body

Durability is a theme for Hunt as time and money you spend fixing is time and money you cannot spend riding or upgrading your bikes. As a result all our freehub bodies have Steel Spline Insert re-enforcements to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.

<h1>Tyres</h1><i>At HUNT we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow you the same option, but of course these tubeless-ready wheels are also designed to work perfectly inner tubes, just use tubes in tubeless ready tyres.</i>
Spokes

We chose the top-of-the-range Pillar Spoke Re-enforcement PSR XTRA models. These butted blade aero spokes are lighter but also provide a greater degree of elasticity to maintain tensions longer and add fatigue resistance. PSR spokes feature the 2.2 width at the spoke head providing more material in this high stress area. The nipples come with a hex head so you can achieve precise tensioning. Combining these components well is key which is why all Hunt wheels are hand-built.

REVIEWS _

Bike Magazine and Websites Expert's Views

Road.cc 4.5/5 Review

"A lightweight, stiff and durable wheelset that'll work brilliantly across a range of road riding disciplines"

CyclingTips 9/10 Review

"It’s hard to find a road disc wheelset that can compete with Hunt Bike Wheels 30 Carbon Aero Disc wheelset on every front. This is one upgrade that road disc bike owners cannot afford to overlook."

What's in the box _

  • Hunt Black Shield tubeless tape fitted to wheels.

  • The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.

  • Cassette spacer for 8/9/10 speed.

  • 45mm Tubeless Valves.

  • Spare of each spoke plus nipples.

  • Quality control card signed by your wheel builder.

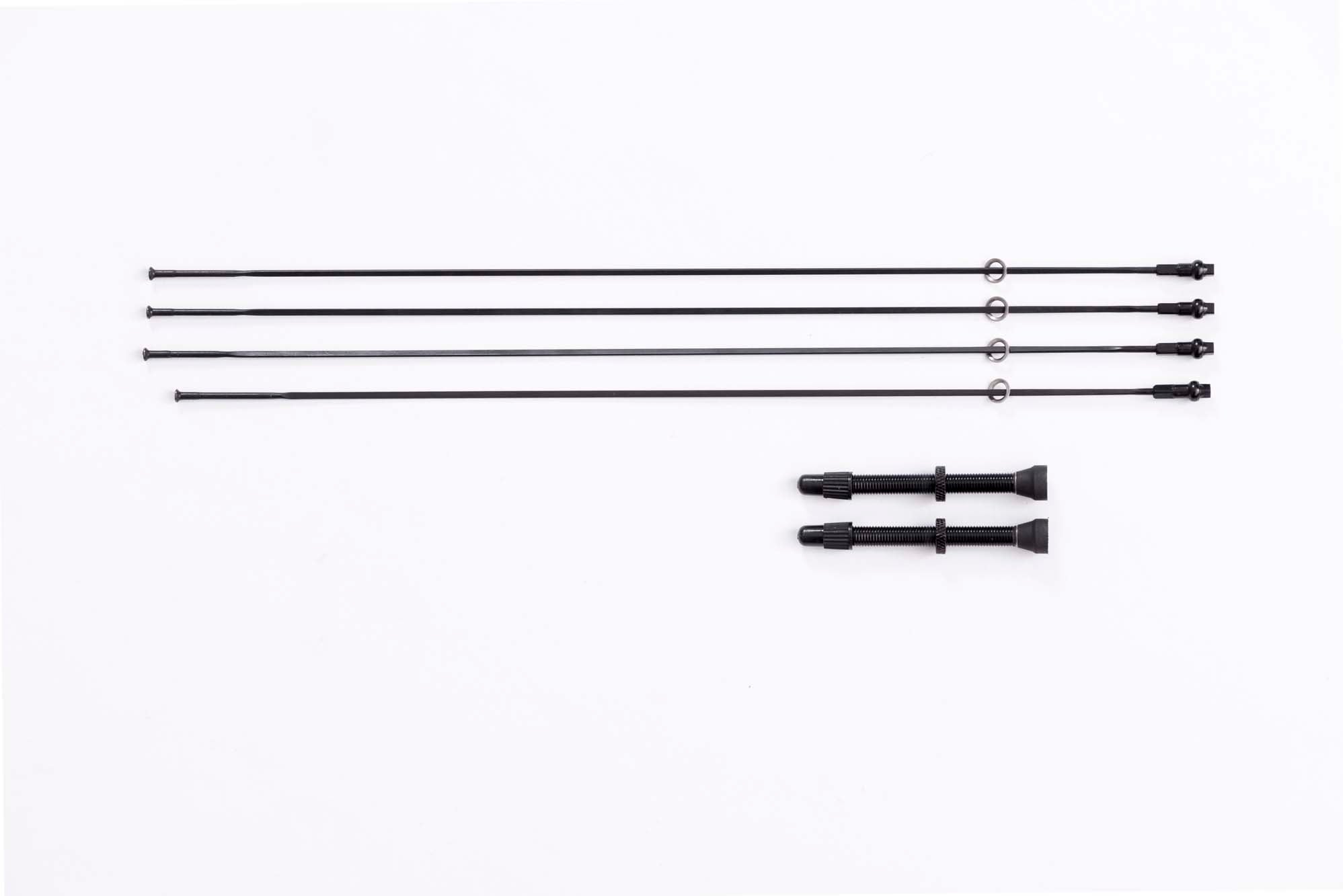

Items included in the box with the 30 Carbon Aero Disc: A spare of each spoke and tubeless valves
