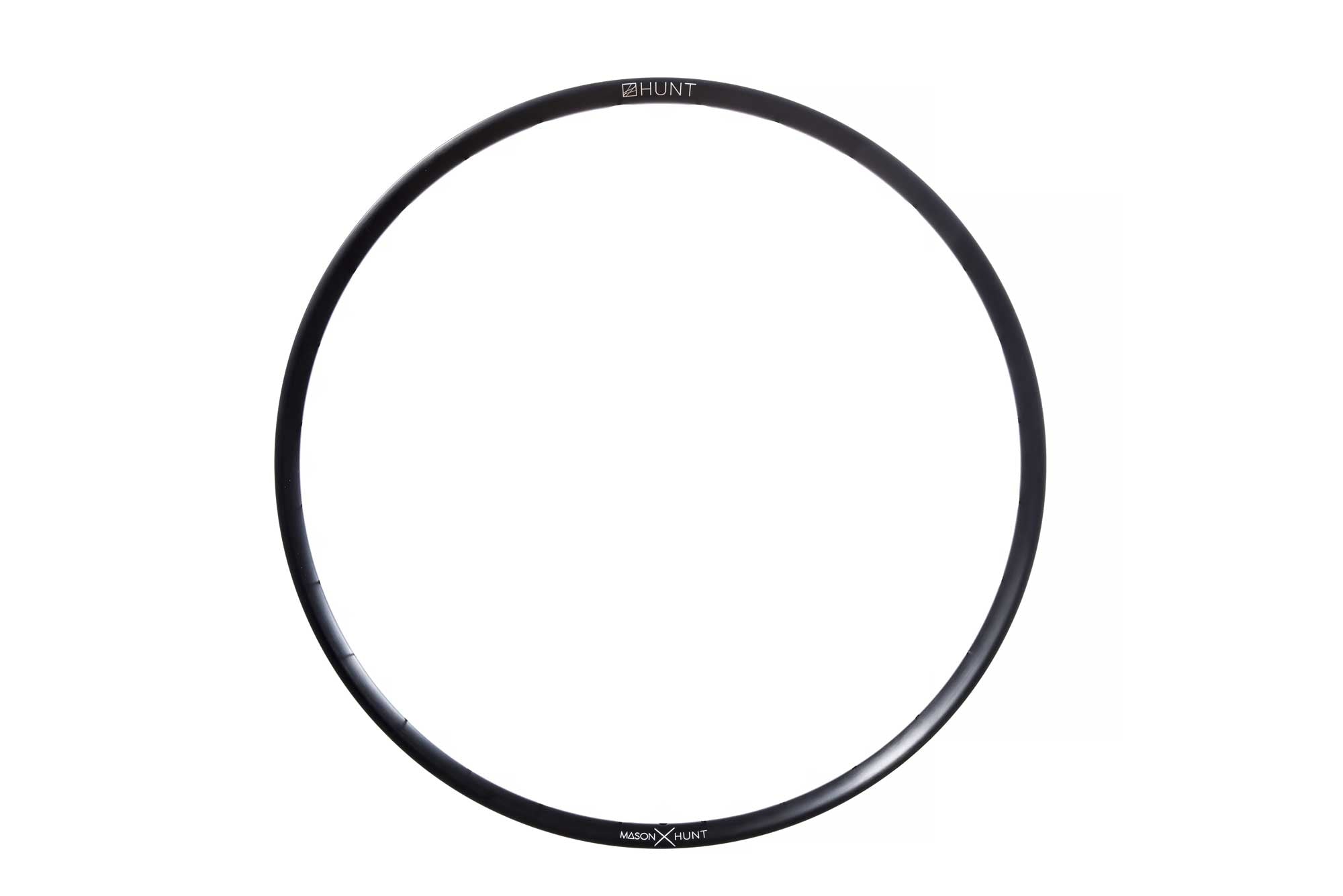

Mason x HUNT 650B Adventure Sport Disc V2 Rim | Front
Mason x HUNT 650B Adventure Sport Disc V2 Rim | Front
Mason x HUNT 650B Adventure Sport Disc V2 Rim | Front
<h1>Rims</h1><i>A strong and lightweight 6066-T6 heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is disc specific which allows higher-strength to weight as no reinforcement is required for a braking surface. The extra wide rim at 29mm (25mm internal) which creates a great tyre profile with wider 28-54mm tyres, giving excellent grip and lower rolling resistance.</i>
<h1>Rim Bed</h1><i>H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>

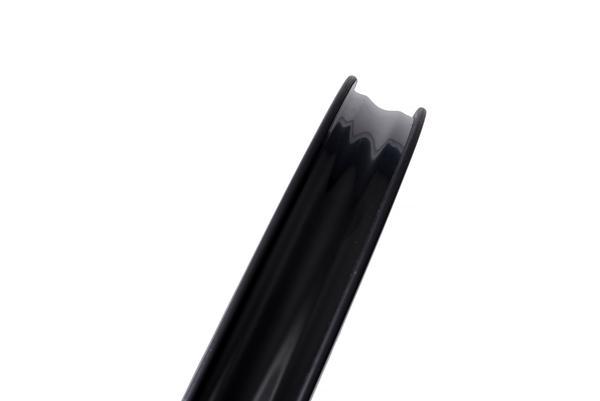

<h1>Rim Surface</h1>

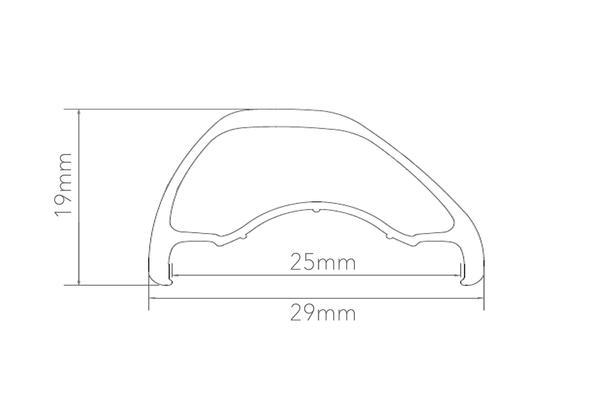

<h1>Rim Profile</h1>
Mason x HUNT 650B Adventure Sport Disc V2 Rim | Front
<h1>Rims</h1><i>A strong and lightweight 6066-T6 heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is disc specific which allows higher-strength to weight as no reinforcement is required for a braking surface. The extra wide rim at 29mm (25mm internal) which creates a great tyre profile with wider 28-54mm tyres, giving excellent grip and lower rolling resistance.</i>
<h1>Rim Bed</h1><i>H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
<h1>Rim Surface</h1>
<h1>Rim Profile</h1>

Mason x HUNT 650B Adventure Sport Disc V2 Rim | Front

The go-to 650b rims for yourgravel/bikepacking rig. Designed for those fun trail thrashes and bike-packing adventures, whilst not compromising anything for fast-far road days.

Tyre size: Optimized for 40mm tyres; work well with 29mm up to 65mm.

£129
Limited Stock. Available Now.
Front / 28 - Limited StockItems are selected to ship from us in the week stated. Delivery time is 3-7 days*

International Orders ETA 3-7 days*


Our products are in high demand, don't miss out. Order now.

*If shown in stock

More details Right

Rims for wheels specifically created for the new breed of adventurous thrasher go-anywhere drop-bar bikes designed to work with multiple wheel and tyre sizes.

19 DEEP | 29 WIDE Ext | 25 Wide Int | 400G

Key features of this rim that make it great for the focused purpose of drop-bar adventure/gravel road riding are:

  • Wider 29mm external/25mm internal rim provides excellent ride handling and support for wider tyres and they work perfectly with up to 2.3” MTB tyres.
  • The 19mm deep rim delivers excellent strength needed for the lower spoke counts and higher gear torques from road groupsets when compared to MTB setups.
  • Asymmetric rim accommodates the front disc and rear cassette hub offsets and helps build an even stronger and more durable wheelset thanks to balanced spoke tensions.

Detailed Specifications

Rim

  • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless rim tape offered separately.
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • 6066-T6 (+34% tensile strength vs 6061-T6) heat-treated aluminium alloy.
  • Asymmetric to balance spoke tensions
  • Disc-specific tubeless-ready profile
  • 29mm outer and 25mm inner width ideal for 28-54mm tyre widths
  • 19mm depth
  • Matt black anodized finish with laser-etched graphics for excellent durability
  • Maximum tyre pressure for this rim: 35mm do not exceed 50psi, 45mm do not exceed 45psi, 45mm+ do not exceed 40psi. The maximum pressure of your tyre may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tyre. Suitable for tyres from 35mm to 65mm wide (always check compatibility with your tyre manufacturer).
  • ERD 558mm
  • Lacing:
    • Front - Cross 2
    • Rear - Cross 2
  • Recommended spoke tension:
    • Front - 115-130 kgf
    • Rear - 110-125 kgf
