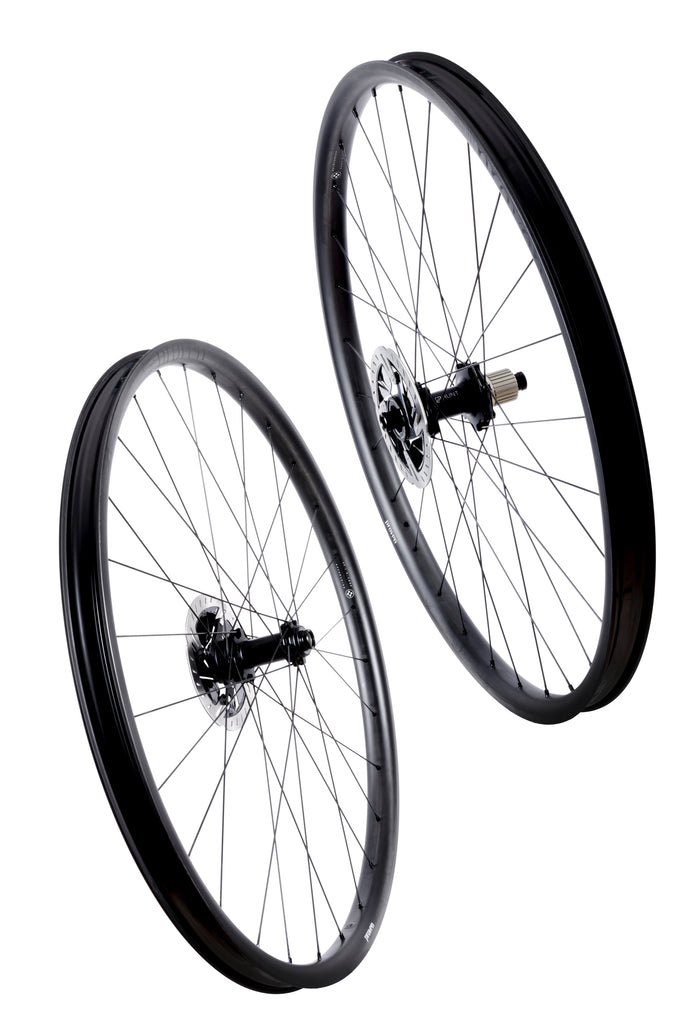

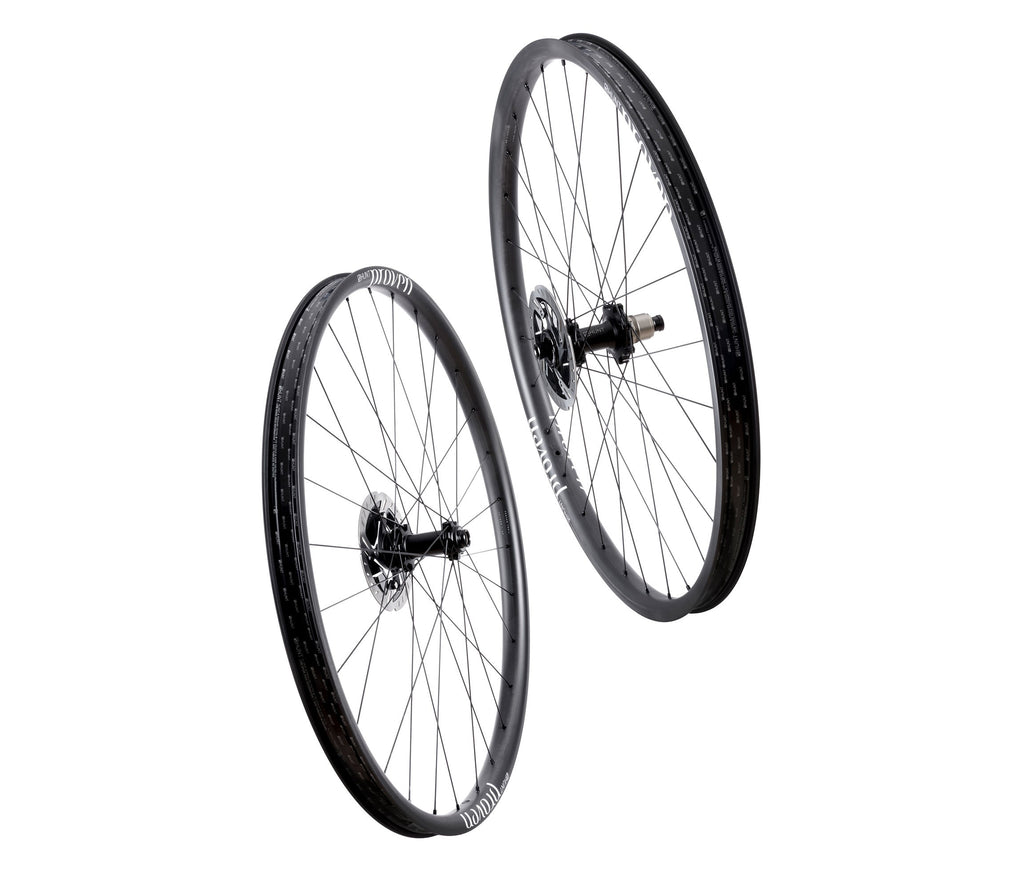

HUNT Proven Carbon Trail H_Core MTB 29 Wheelset

1732g Width ext Width int size
38 mm F31 / R30 mm 29

Built for ultimate trail performance, these carbon wheels are light, tough, and ready to excel on all-day adventures or quick lunch laps.

Engineered with H_Core impact protection, front and rear-specific carbon rims, and oversized 4mm rear rim beads to reduce punctures and boost durability. Hand-laced with precision, they pair our ultra-fast S_RapidEngage 90t, 2-degree hubset with triple-butted spokes, achieving a system weight of just 1732g.

Optimized for 2.4"-2.6" tyres; work well with 2.25" up to 2.8" tyres.

£1,199
Pre-Order now. Shipping:
Bright White / Boost - Pre-Order March Wk 1
Stealth Black / Boost - Pre-Order March Wk 1

We will ask for axle info after checkout.

Order ETA 3-7 days*
Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

H_CARE

FREE LIFETIME CRASH REPLACEMENT

To ensure you're not out of pocket should the worst happen. Learn more.

The Purpose _

The Purpose _

Built to reward riders who love hitting trail jumps and drops, precision landings and fast, punchy climbs back to the top. Engineered to excel at the trail centre or exploring off-piste, they're built to endure, incorporating our latest H_Core carbon insert, strength-enhancing technology and oversized 4mm rear rim bead to reduce punctures.

Tuned for trail riding with a new asymmetric rim profile hand-laced with front- and rear-specific spoke gauges and carbon layups for front-wheel compliance and rear-wheel stability.

Getting the power down, our S_RapidEngage 2-degree freehub instantly turns every pedal stroke into a speed boost.

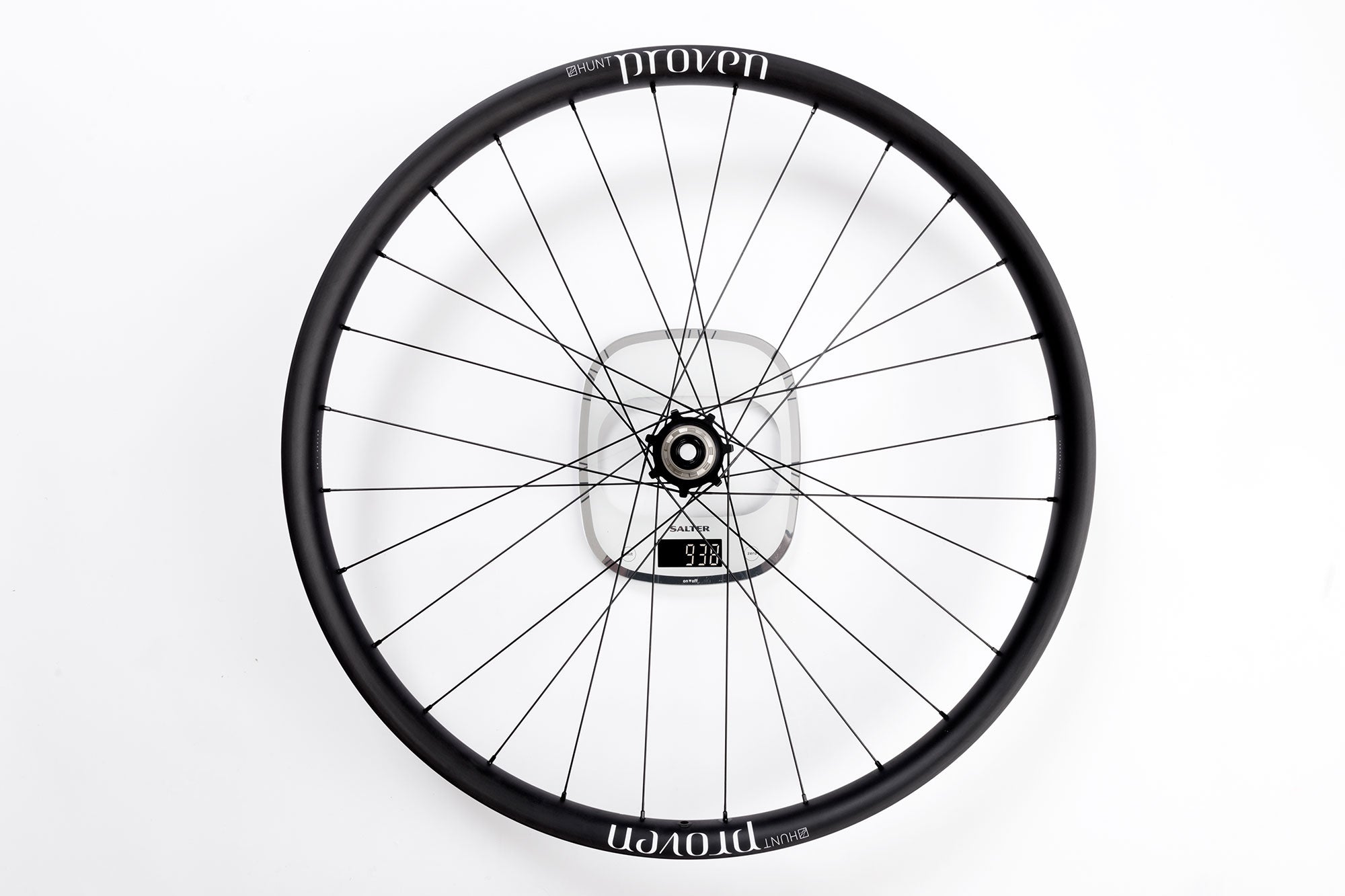

At 1732g they're fast uphill, but even faster back down.

H_CORE EXPLAINED_

Ollie Mant, HUNT's Test and Development Engineer, highlights the challenges H_Core overcomes and explains how it creates incredibly strong and robust wheels without compromising weight.

TECHNOLOGY_

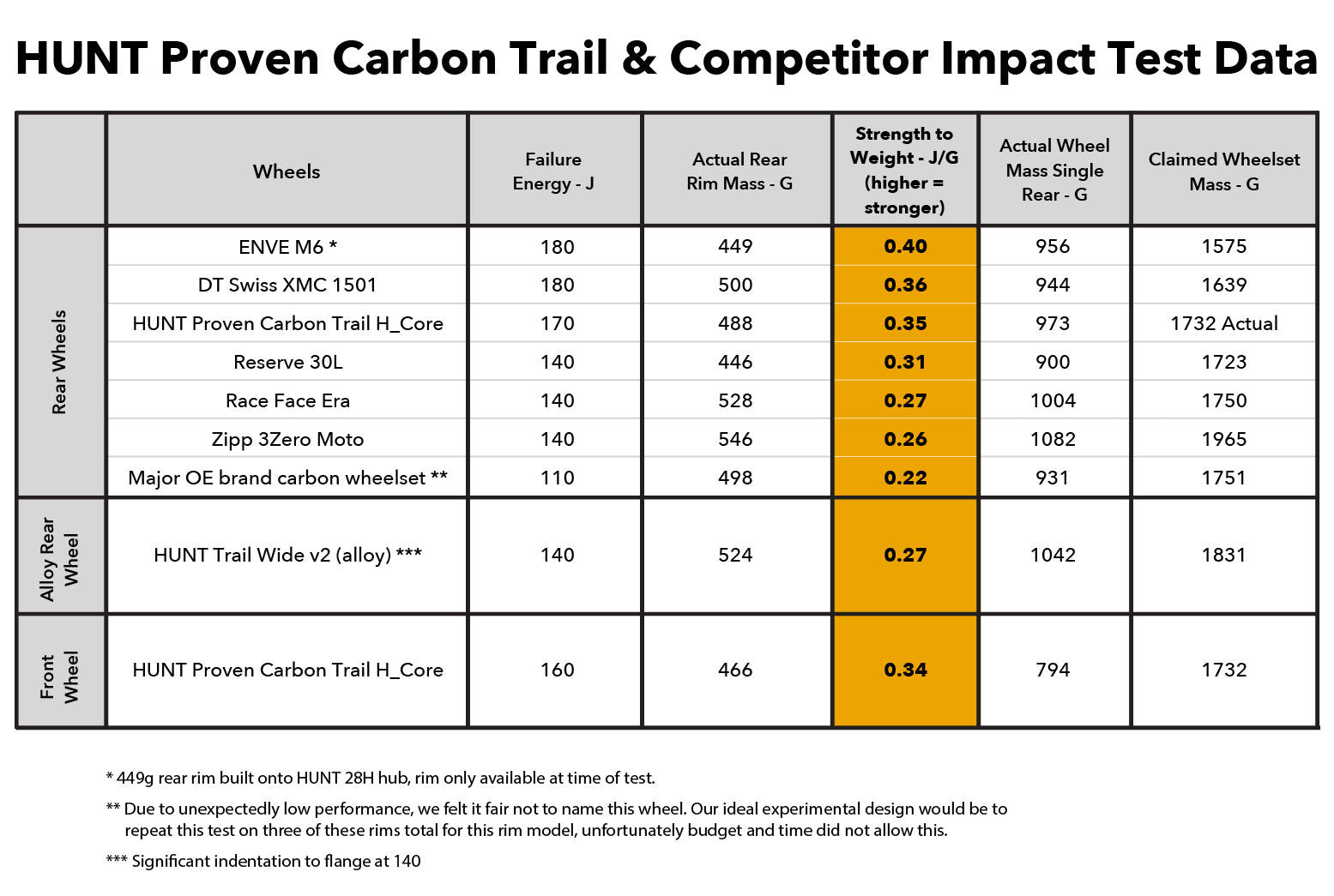

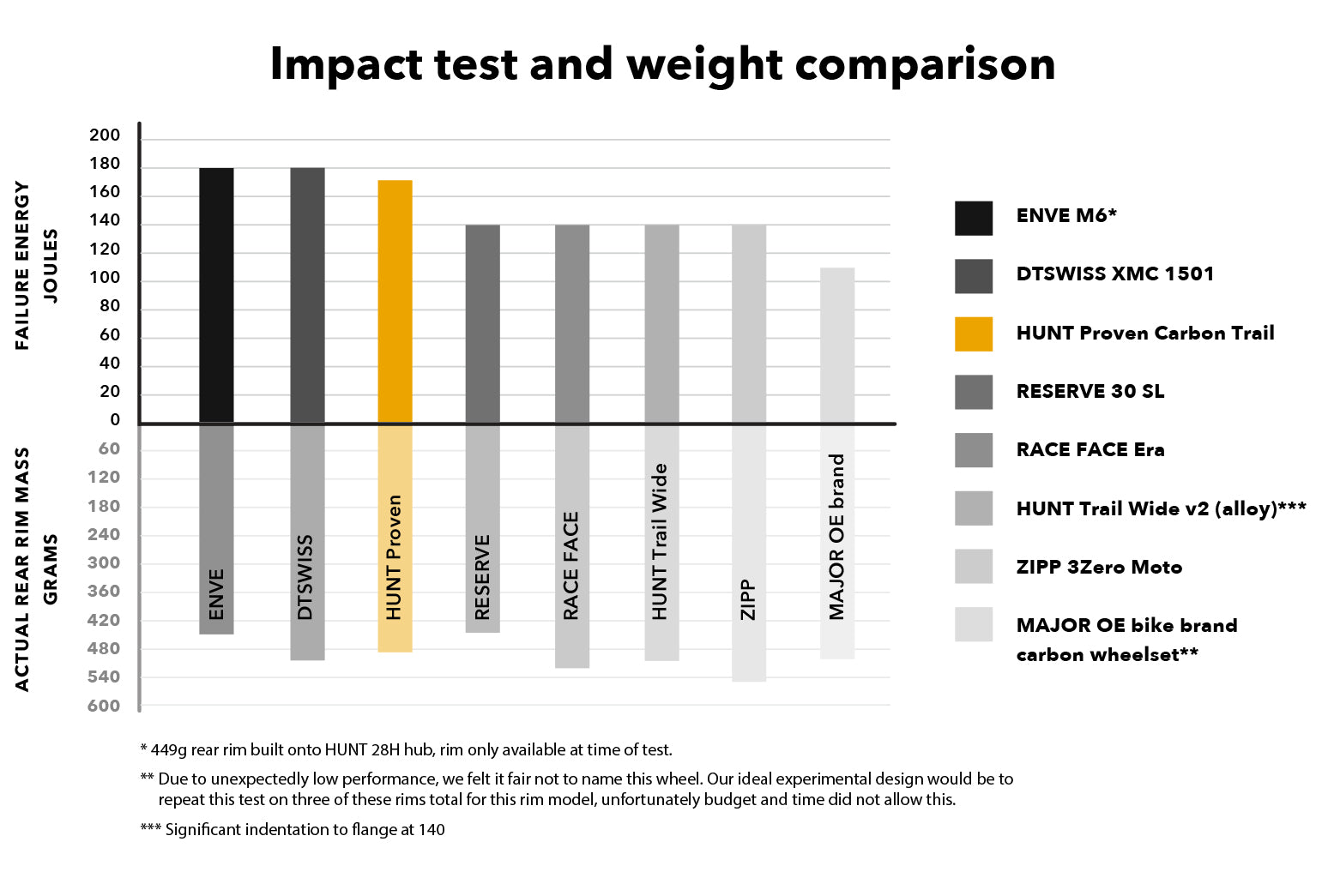

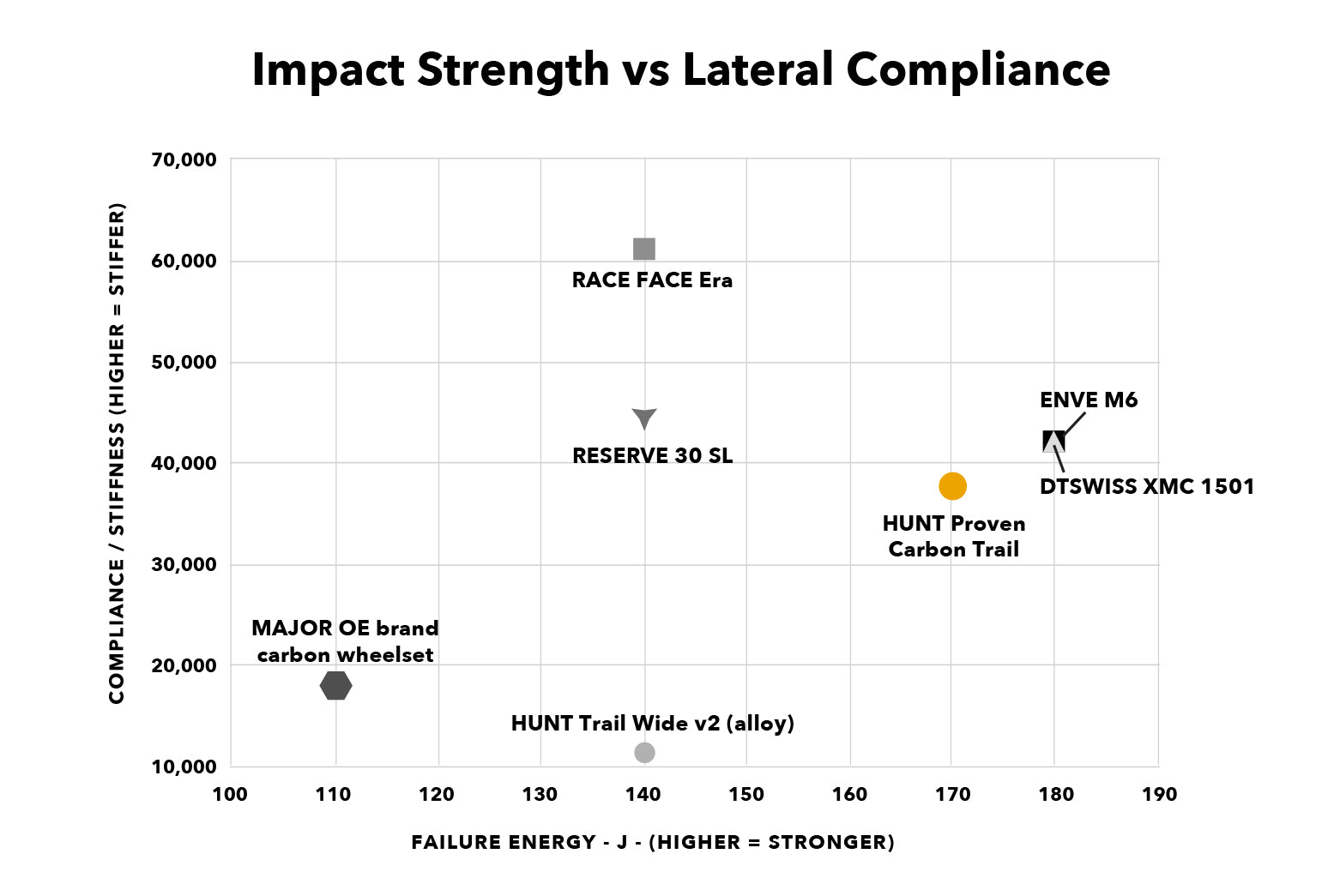

We rigorously test all our wheels through purpose-designed protocols, combining real-world ride testing with in-house lab tests on our custom-built impact rig. Thanks to a carefully optimised rim design and carbon layup, advanced H_Core technology, and precise hand-built construction, the HUNT Proven Trail H_Core achieves an impressive 170J impact rating. As our impact data shows, the HUNT Proven Carbon Trail H_Core delivers both low weight and durability, standing strong alongside leading competitors. For more details on our testing methodology please see our Engineering methodology & results paper here.

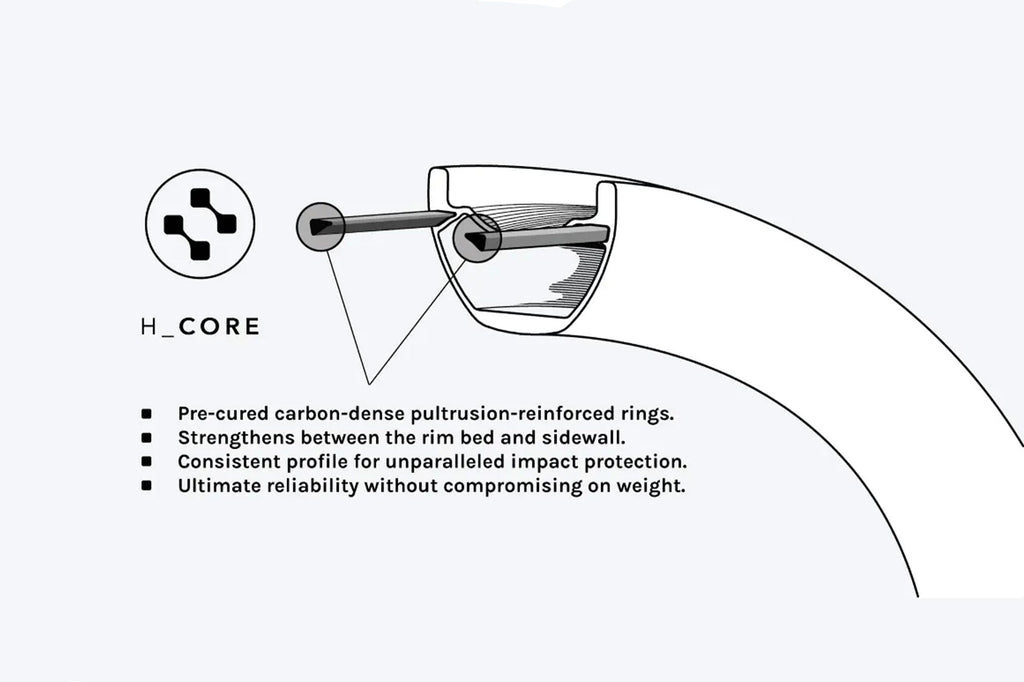

H_Core is a manufacturing technology that greatly improves the durability and impact strength of our aggressive carbon MTB wheels. H_Core consists of pre-moulded, pultruded, and highly compacted carbon fibre core inserts used to reinforce the junction between the rim bed and sidewall on each side of the rim during the rim moulding process. The result is a lightweight yet highly durable and impact-resistant rim construction.

Full Specs _

Rims

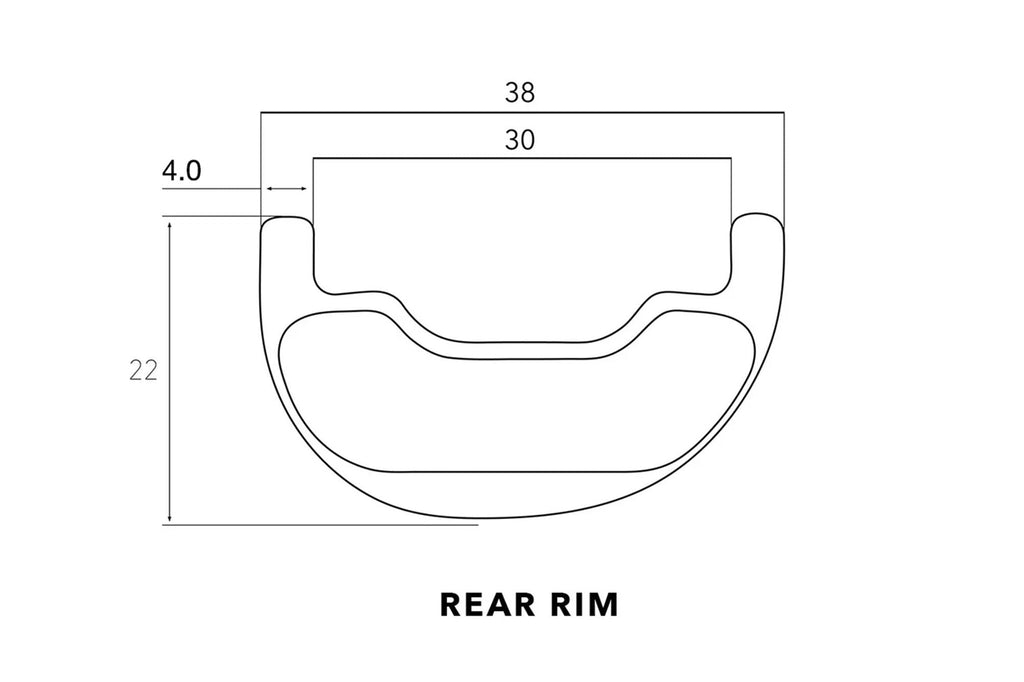

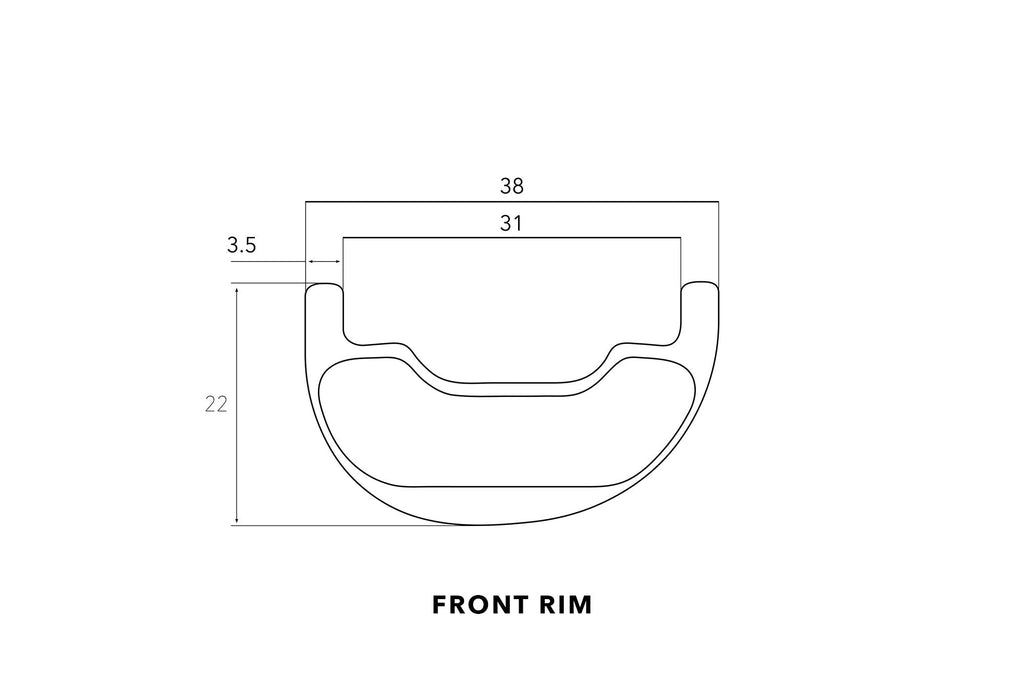

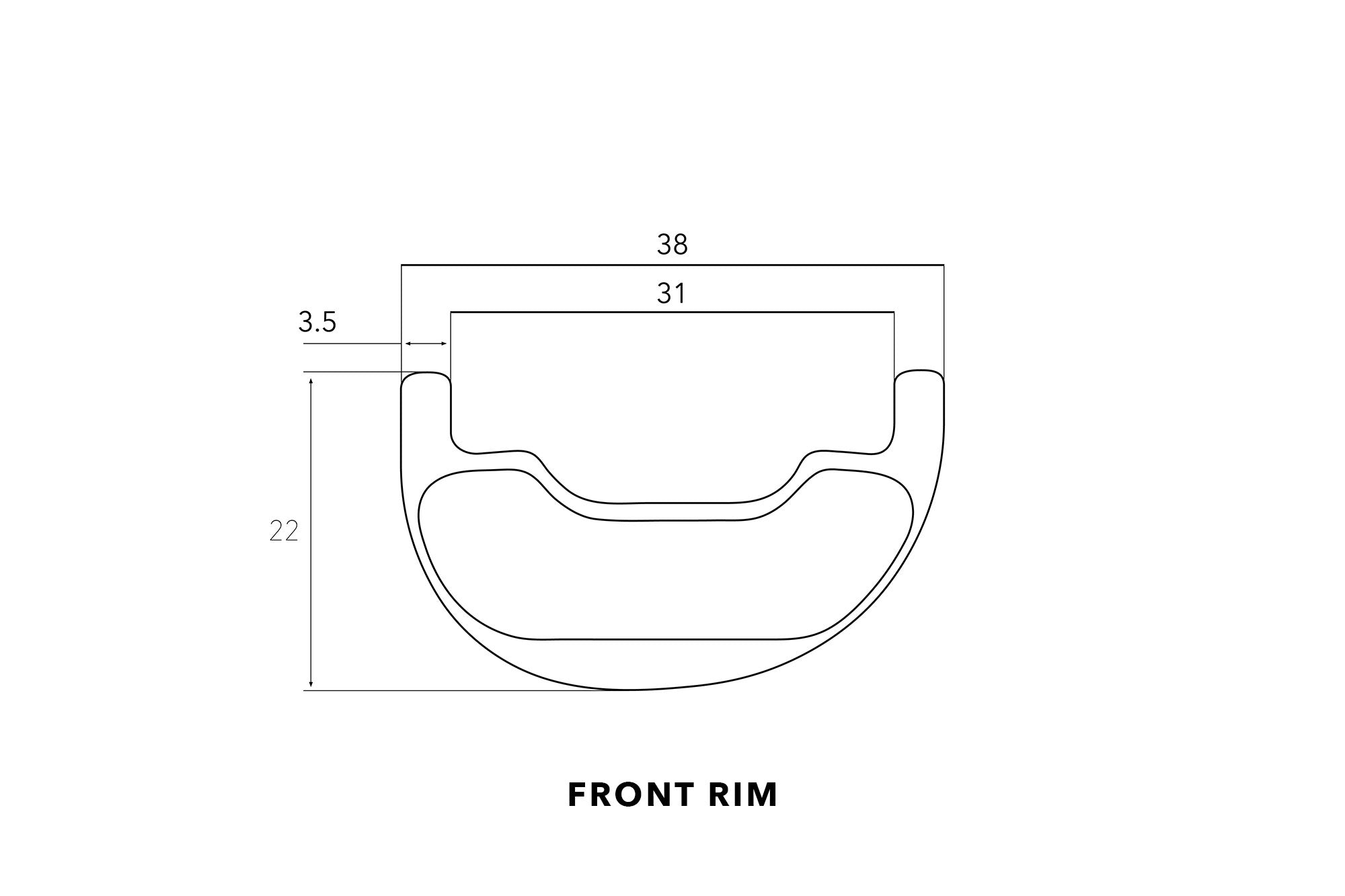

Hookless, Front 31mm Rear 30mm internal rim width, 38mm external and 22mm depth. 4mm rear rim side wall/bead width for added pinch flat puncture resistance.  Asymmetric profile reduces spoke tension differential for improved long term wheel build durability. H_Core internal carbon insert, designed to increase fibre density and boost strength for demanding trail use.  Tubeless-ready – designed to work perfectly with either tubless tyres or with inner tubes. Tubeless-rim tape and valves included.  HUNT Anti-Splinter layup boosts resistance to micro cracks.   H-lock bead-seat up-kicks for easy and secure tubeless installation.  UD rim finish with either:  Bright White Graphic- Water transfer under lacquer.  Stealth Black Graphic – Water transfer under lacquer.

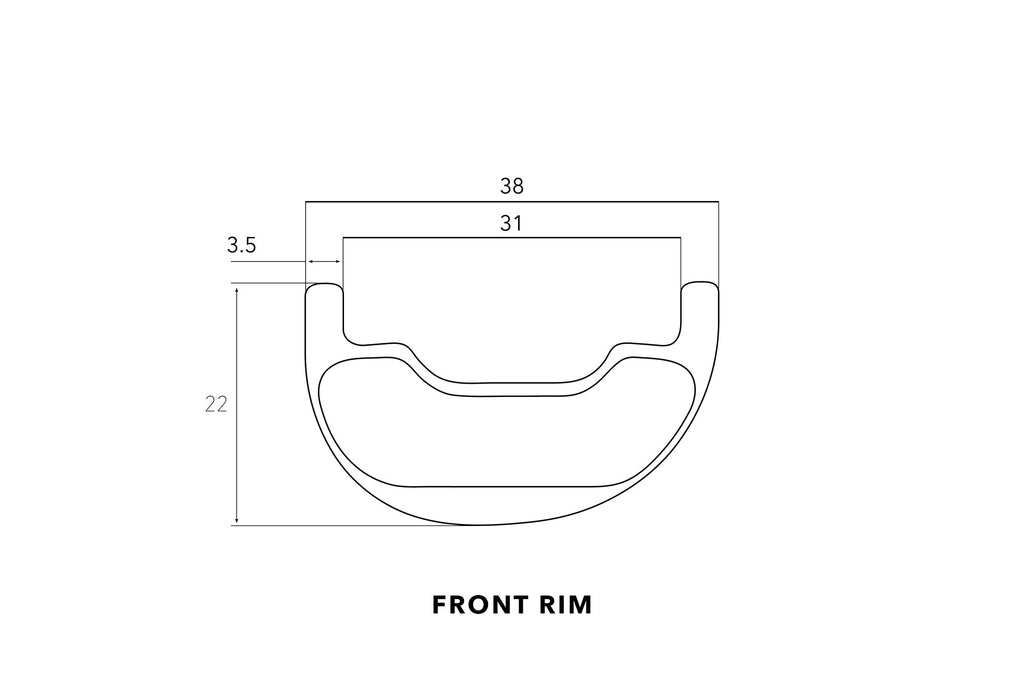

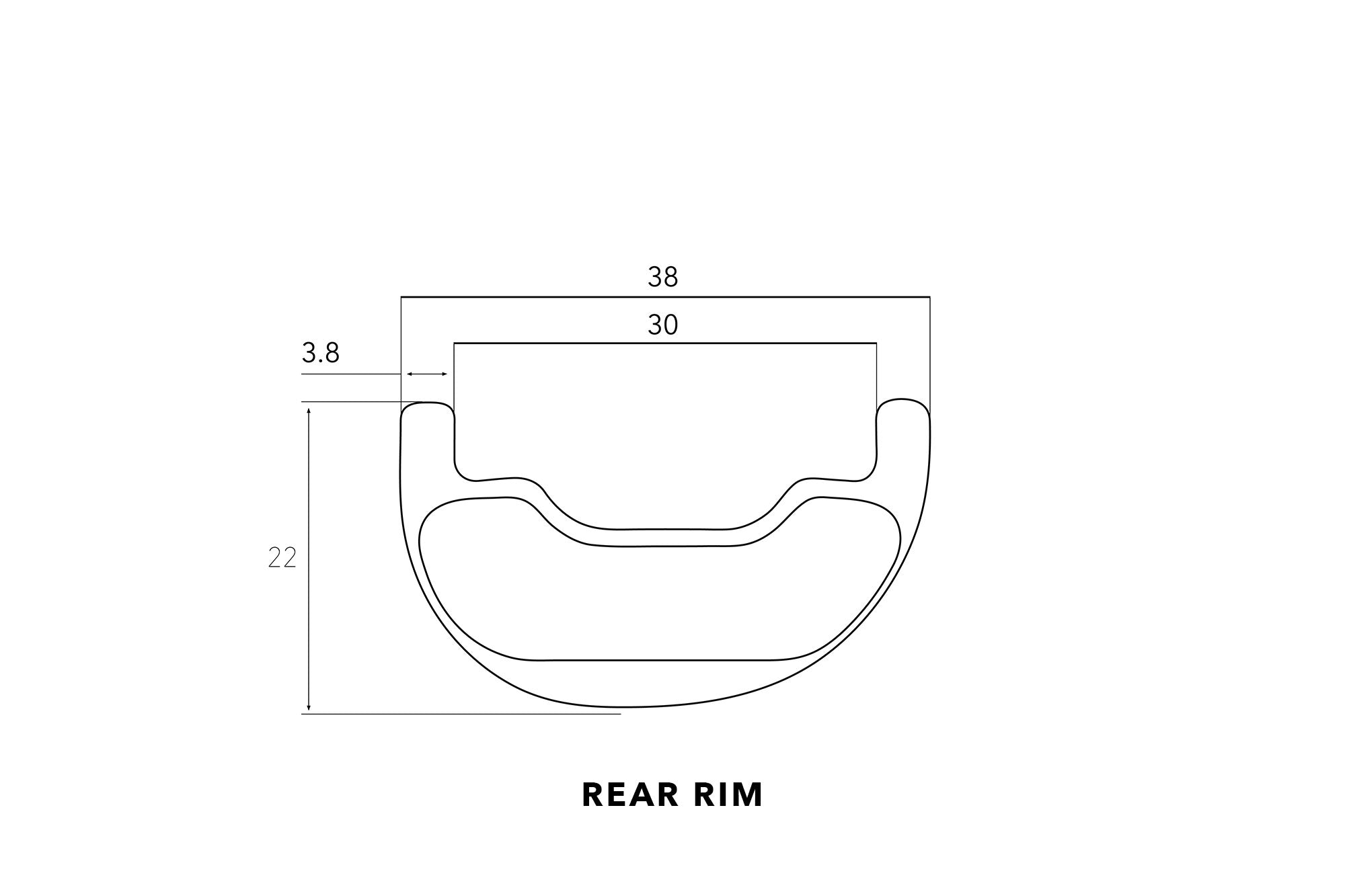

  • Hookless, Front 31mm Rear 30mm internal rim width, 38mm external and 22mm depth.

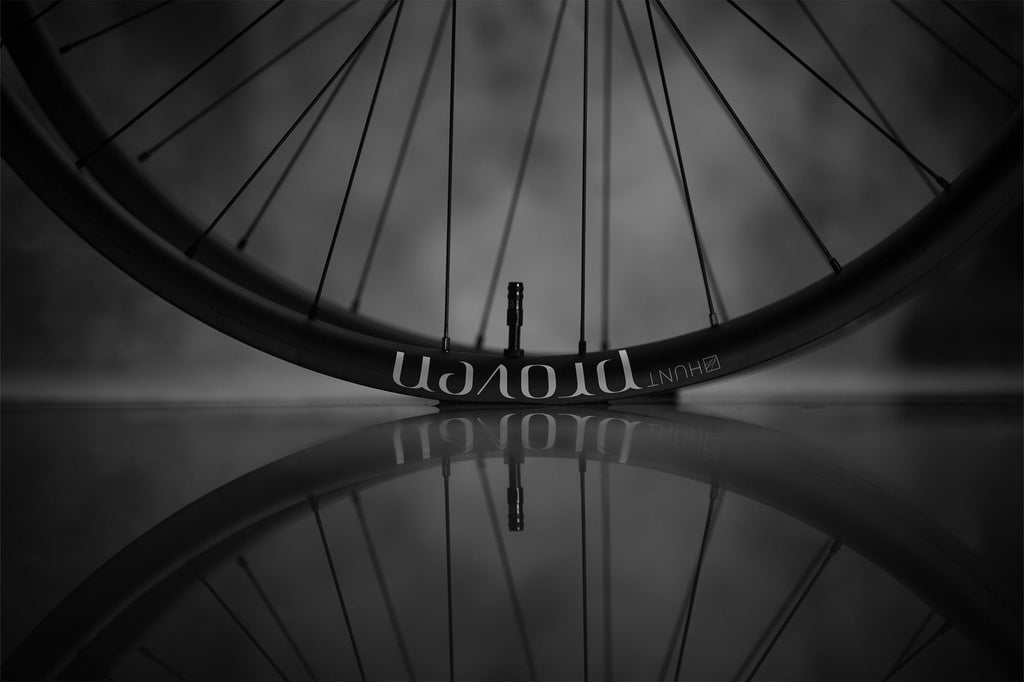

  • 4mm rear rim side wall/bead width for added pinch flat puncture resistance.
  • Asymmetric profile reduces spoke tension differential for improved long term wheel build durability.
  • H_Core internal carbon insert, designed to increase fibre density and boost strength for demanding trail use.
  • Tubeless-ready – designed to work perfectly with either tubless tyres or with inner tubes. Tubeless-rim tape and valves included.
  • HUNT Anti-Splinter layup boosts resistance to micro cracks.
  • H-lock bead-seat up-kicks for easy and secure tubeless installation.
  • UD rim finish with either:
  • Bright White Graphic- Water transfer under lacquer.

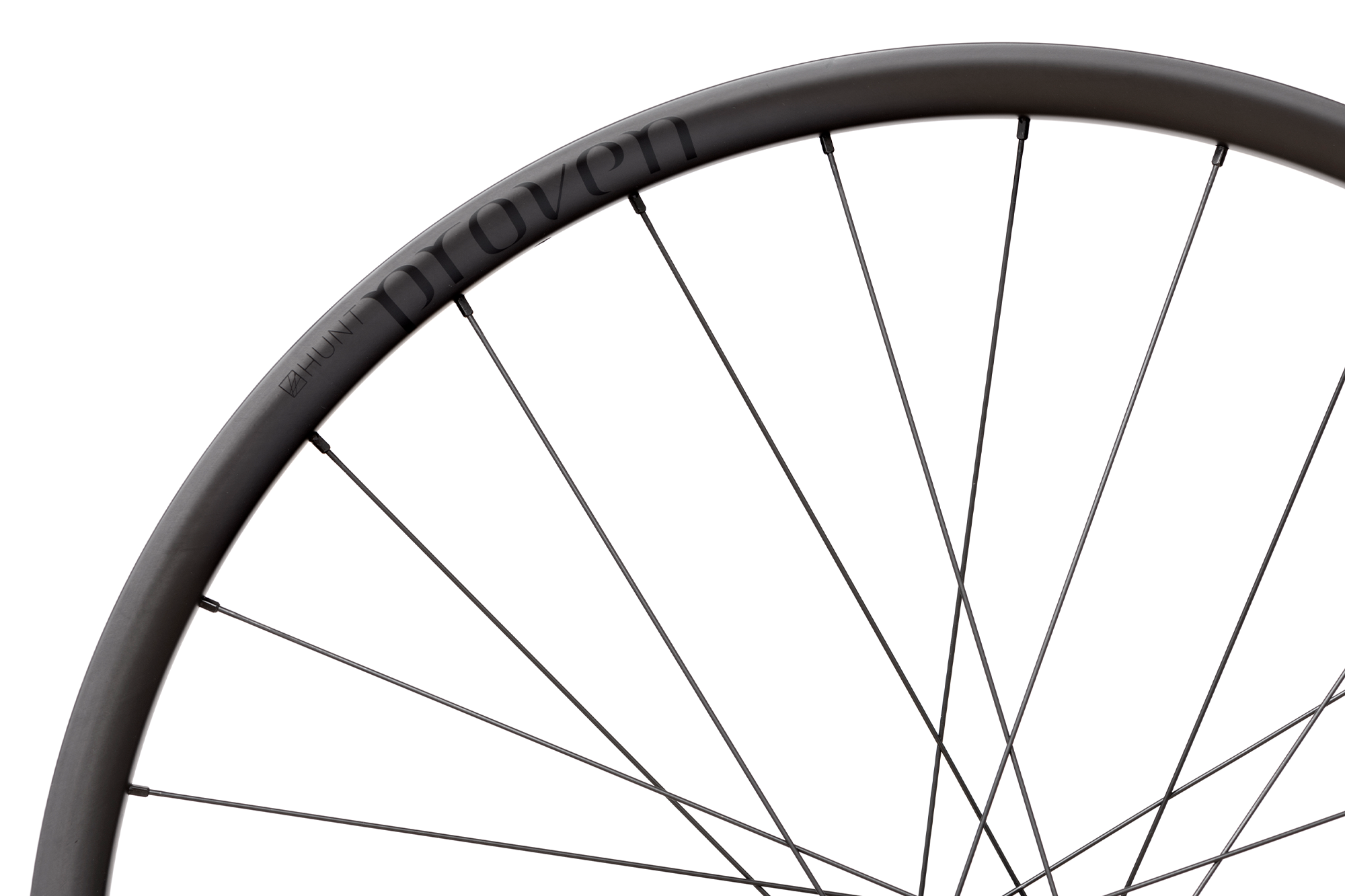

  • Stealth Black Graphic – Water transfer under lacquer.
Spokes
28 Spoke count in a 2x lacing pattern.  Straight-pull for excellent torsional strength and direct power transfer.  Pillar spokes made from Sandvik T302 (18/10) stainless steel.  Triple butted 2.0-1.6-2.0 front (then 2.2 at the head for the patented Pillar Spoke Re-inforcement). Lower gauge spoke provides handling and tracking qualities needed for the front wheel.  Triple butted 2.0-1.7-2.0 rear (then 2.2 at the head for the patented Pillar Spoke Re-enforcement) Higher gauge spoke adds impact strength for the rear wheel.  Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
  • 28 Spoke count in a 2x lacing pattern.
  • Straight-pull for excellent torsional strength and direct power transfer.
  • Pillar spokes made from Sandvik T302 (18/10) stainless steel.
  • Triple butted 2.0-1.6-2.0 front (then 2.2 at the head for the patented Pillar Spoke Re-inforcement). Lower gauge spoke provides handling and tracking qualities needed for the front wheel.
  • Triple butted 2.0-1.7-2.0 rear (then 2.2 at the head for the patented Pillar Spoke Re-enforcement) Higher gauge spoke adds impact strength for the rear wheel.
  • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.  16mm length with washer for a strong connection to the spoke added durability.  14 gauge.  Black hard-anodized finish.
  • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
  • 16mm length with washer for a strong connection to the spoke added durability.
  • 14 gauge.
  • Black hard-anodized finish.

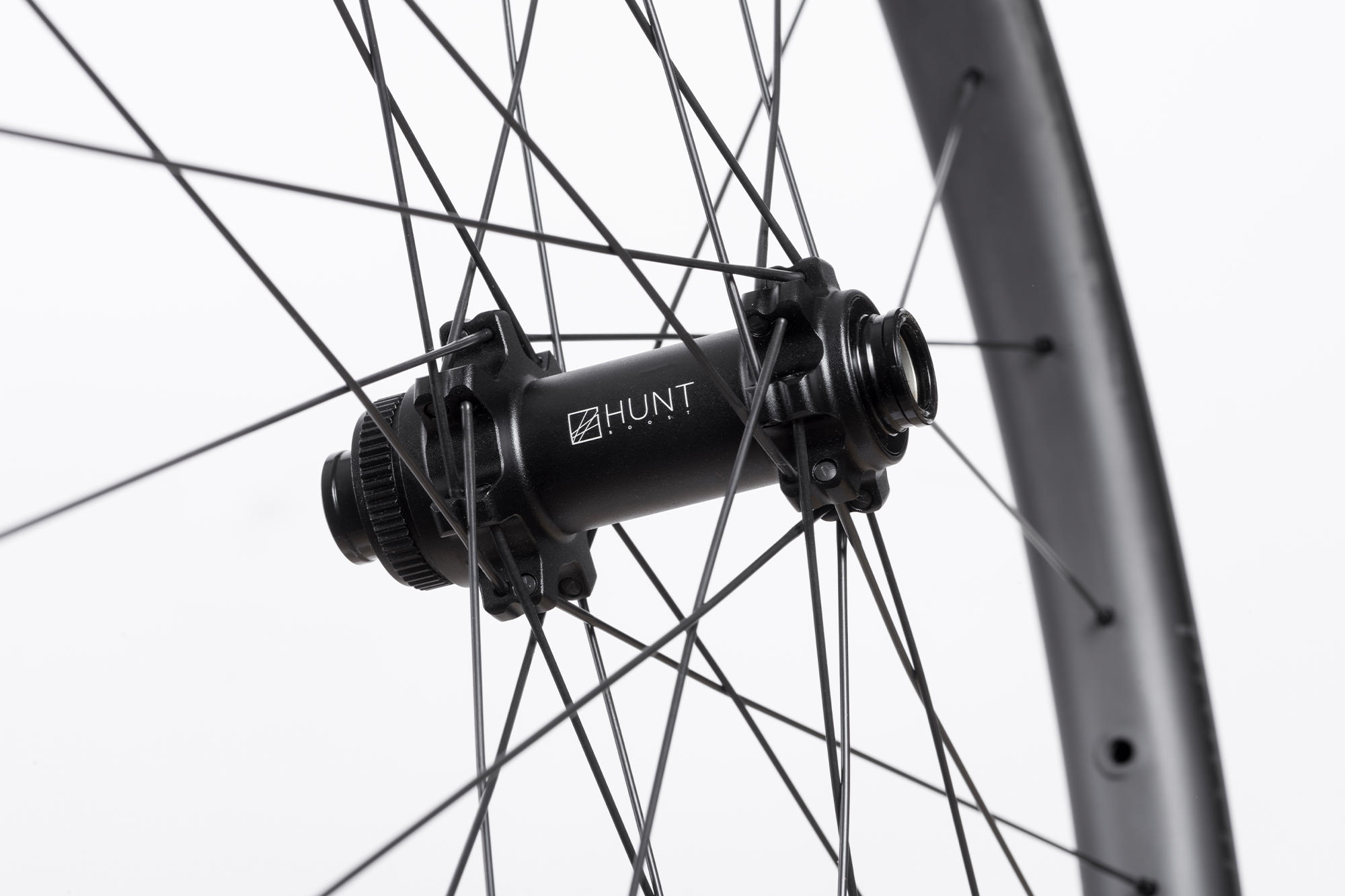

Front Hub
Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 110x15mm spacing.  7075-T6 aluminium alloy axles. Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.  Black anodised finish with laser graphics.
  • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
  • 110x15mm spacing.
  • 7075-T6 aluminium alloy axles.
  • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • Black anodised finish with laser graphics.
Rear Hub

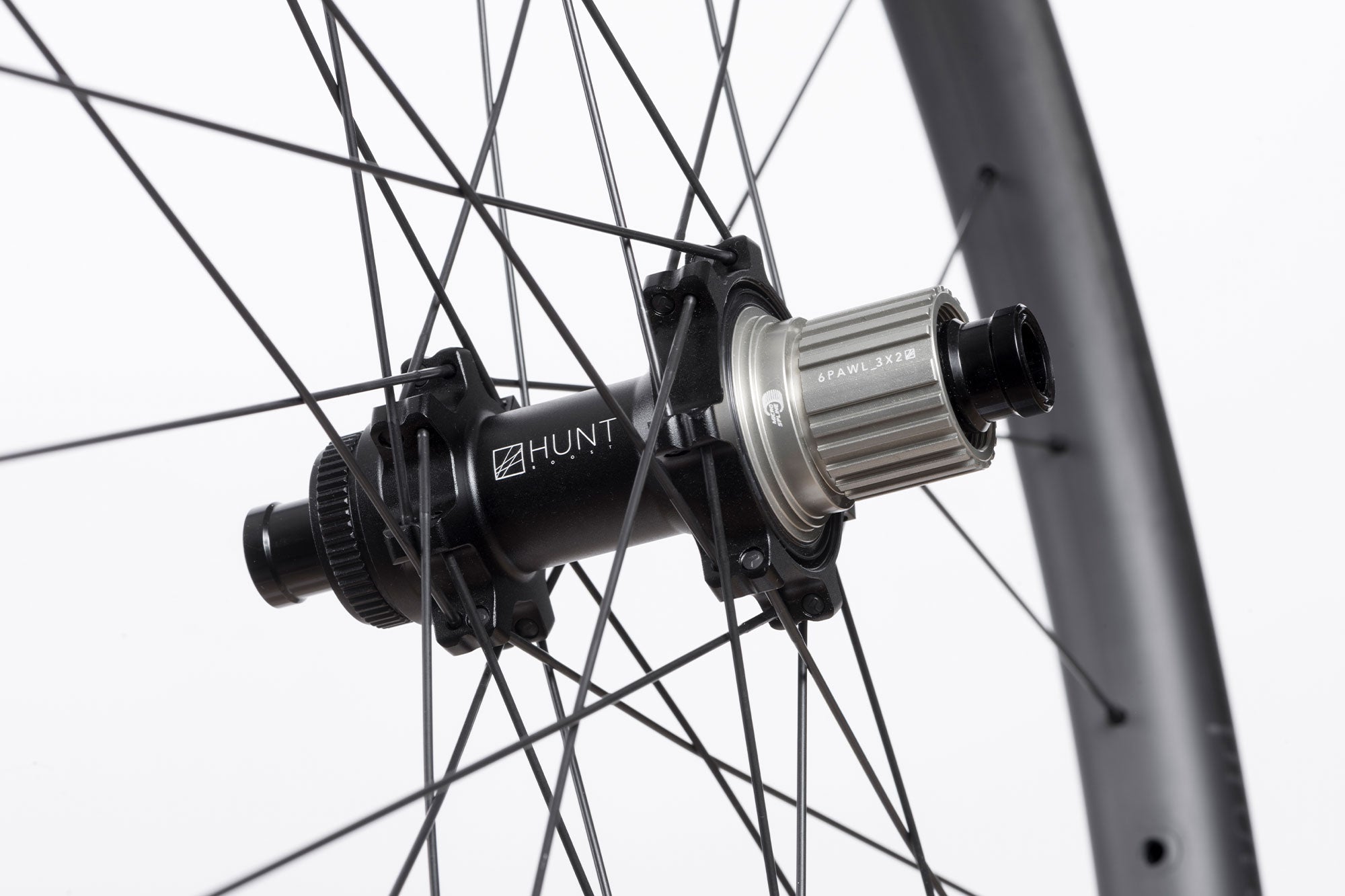

CNC machined 6061-T6 heat-treated aluminium alloy hub body. 148x12mm Boost design. H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. Hunt S_Rapid 2-degree engagement. Oversized 7075-T6 heat-treated aluminium axles. Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.  All freehub standards accounted for.  Black anodised finish with laser graphics.
  • CNC machined 6061-T6 heat-treated aluminium alloy hub body.
  • 148x12mm Boost design.
  • H_CERAMIK freehub body reinforcement coating (Shimano/Sram HG body) provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
  • Hunt S_Rapid 2-degree engagement.
  • Oversized 7075-T6 heat-treated aluminium axles.
  • Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
  • All freehub standards accounted for.
  • Black anodised finish with laser graphics.
Bearings
Sealed cartridge replaceable units. Dual full-contact seals for increased durability.
  • Sealed cartridge replaceable units.
  • Dual full-contact seals for increased durability.
Tyres Info
HUNT recommends a 2.3"-2.6" tyre for best performance, tyre widths between 1.9" and 2.8" are also safe to use.  Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.   Tubeless-ready for lower weight and rolling resistance.   You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
  • HUNT recommends a 2.3"-2.6" tyre for best performance, tyre widths between 1.9" and 2.8" are also safe to use. 
  • Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. 
  • Tubeless-ready for lower weight and rolling resistance. 

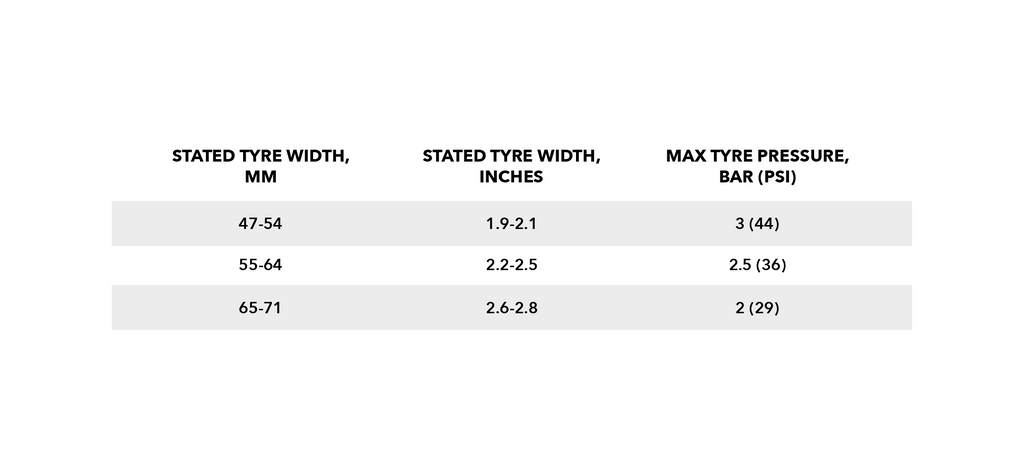

  • You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
Axle Sizes
Boost - 148x12mm (Rear) with 110x15mm (Front).  SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible.
  • Boost - 148x12mm (Rear) with 110x15mm (Front).
  • SRAM/Shimano 8/9/10/11 speed, Shimano Microspline and SRAM XD compatible.

HIGH SPECIFICATION COMPONENTS _

All-new H_Core reinforcement technology increases impact resistance significantly over the previous iteration. The front rim is designed for precision handling, featuring a 31mm-wide internal profile that enhances tracking and grip on technical terrain. Out back, the rear rim (30mm internal width) is engineered for strength and durability, with a reinforced layup and oversized 4mm sidewall dimensions to reduce the risk of pinch flats and enhance impact resistance.

ASYMMETRIC

An asymmetric carbon rim profile allows for improved bracing angles and more even spoke tension between the drive and non-drive sides of the wheel, resulting in a more durable build compared to symmetrical rim designs.

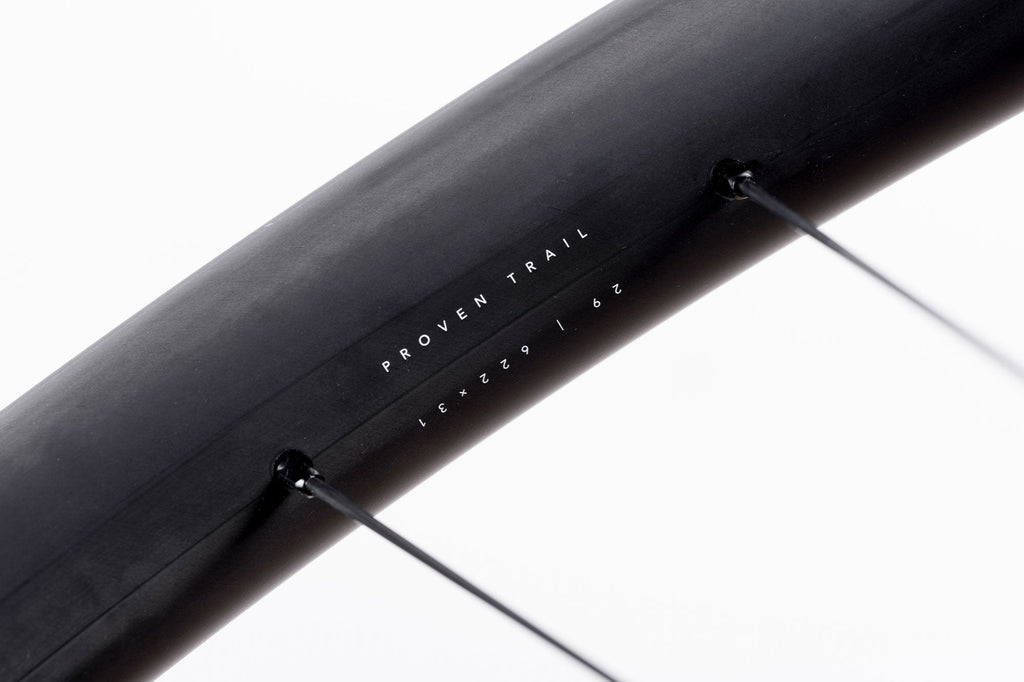

ENHANCED LAYUP

A key development for the HUNT Proven Carbon Trail H_Core wheelset was the evolution of our enhanced carbon layup designed to reduce splintering. Through laboratory and real-world testing, our engineering team found that the addition of a penultimate 10k carbon weave in the layup enhanced resilience to 'micro-cracks' that could lead to larger failures. Our impact tests reveal that this development boosts impact resistance, making the HUNT Proven Carbon Trail an exceptionally reliable and long-lasting wheelset.

SPOKES

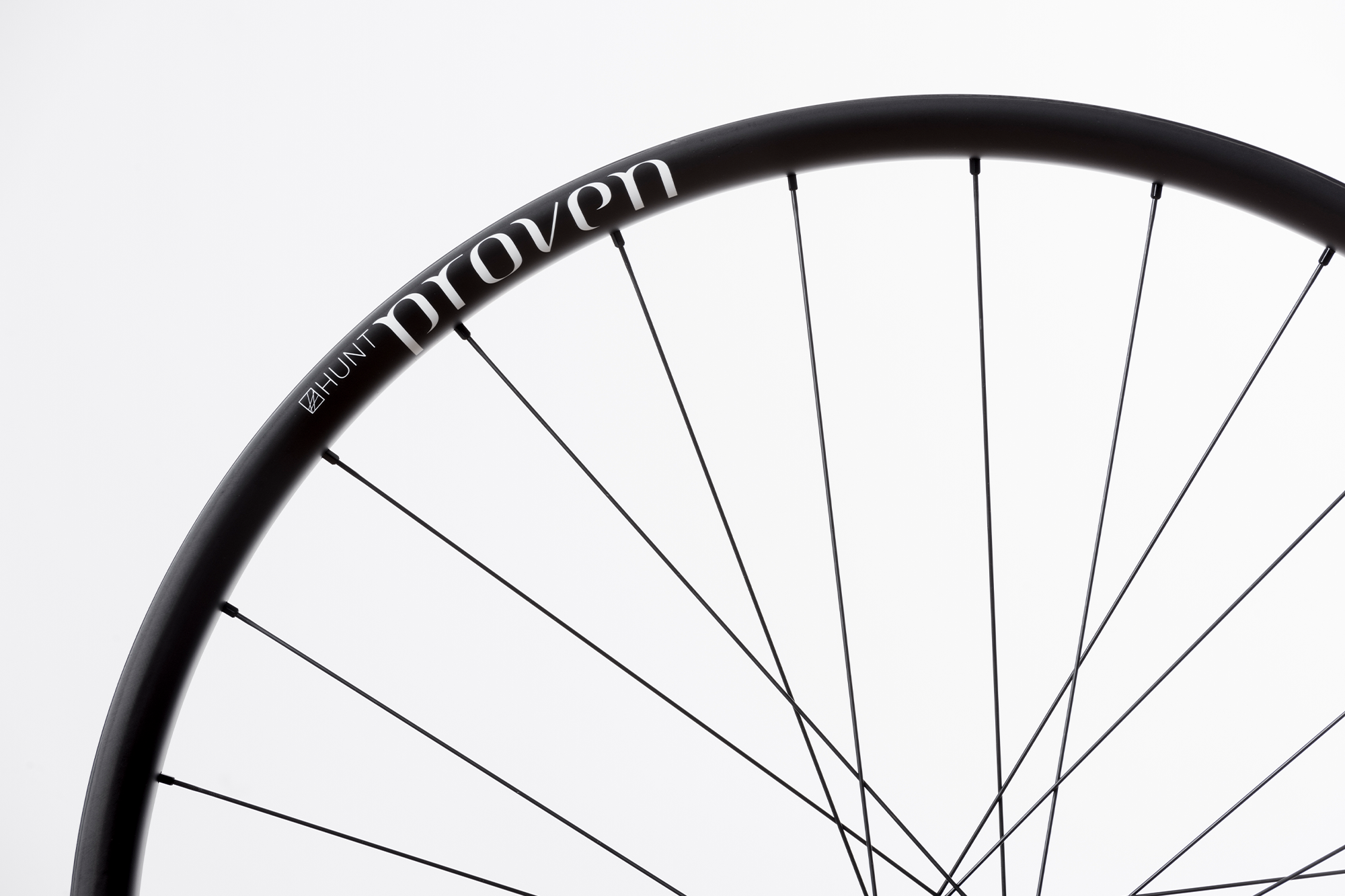

Each HUNT Proven Carbon Trail H_Core wheelset is hand-built using straight-pull triple-butted stainless steel Pillar spokes with alloy nipples and steel washers for the perfect balance of low weight and durability. To further tune our trail wheels, we lace the front wheel with Pillar 2016 triple-butted spokes featuring a narrower 1.6mm central gauge, reducing weight and enhancing comfort. The rear wheel uses 2017 triple-butted Pillar spokes with a wider 1.7mm gauge for improved strength and durability, perfect for handling the increased demands of technical trail riding.

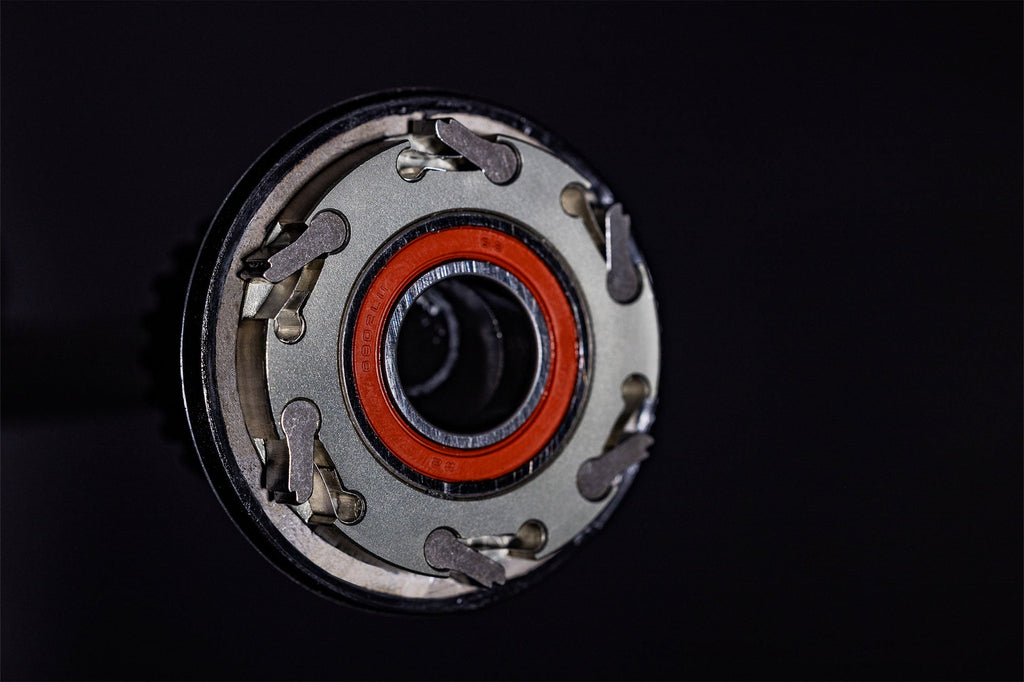

FREEHUB

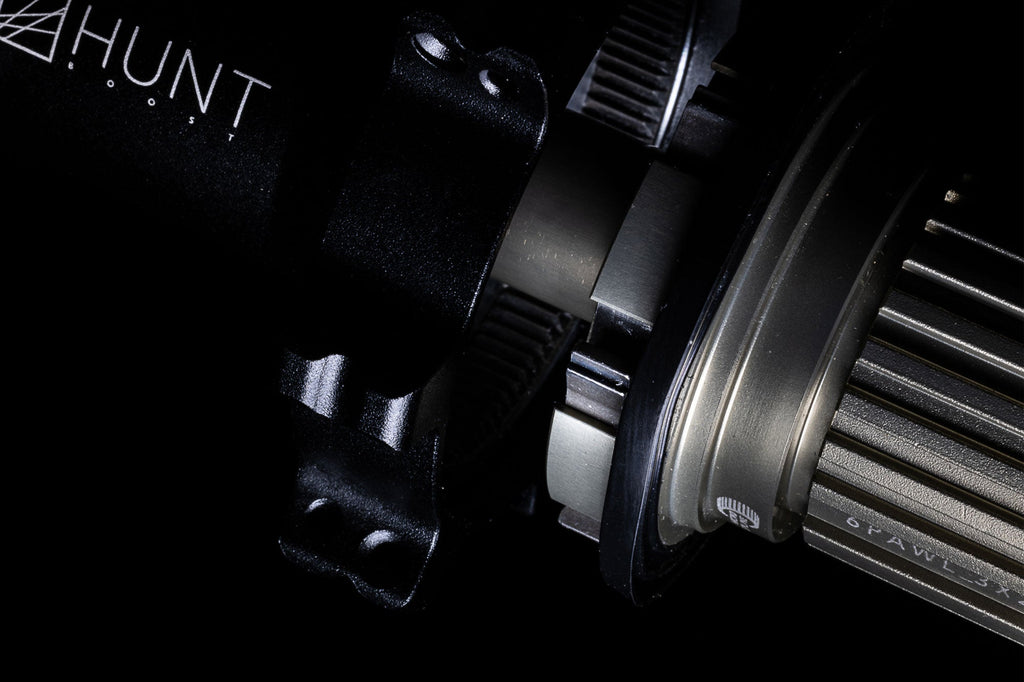

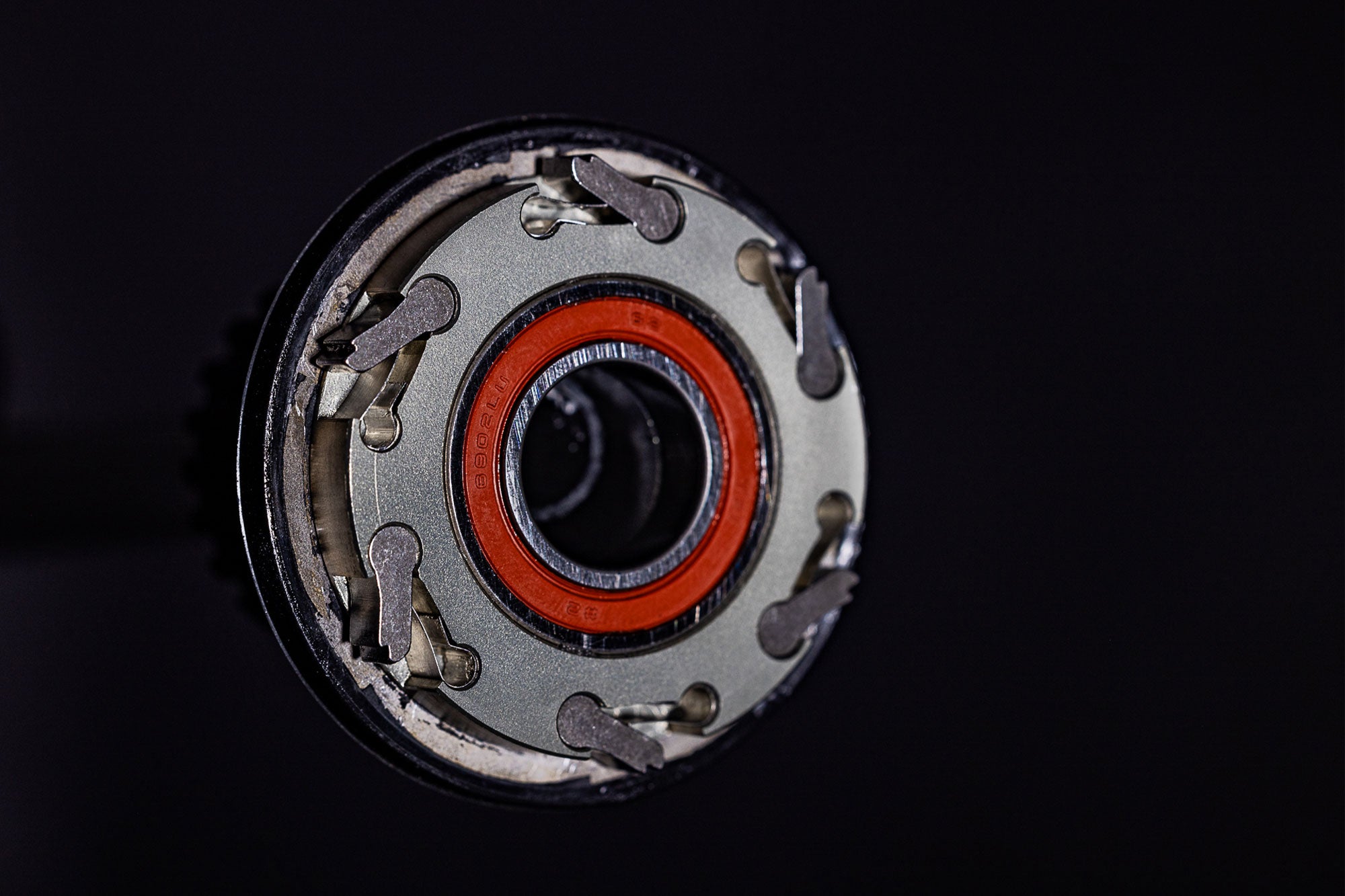

The S_RapidEngage freehub boasts 2 teeth per pawl to offer our fastest engaging MTB freehub to date. This trail-ready 3x2 pawl system is mated to our new 90t ratchet ring with 6 durable pawls transferring power in an alternating pattern creating an almost instant 2-degree engagement for improved responsiveness and pedal input.

TUNED FOR TRAILS

Boasting front and rear-specific asymmetric carbon rims, our UK-based engineering team have fine-tuned each rim to its specific use case. The front rim is tuned for compliance and tracking, with a wider 31mm internal rim profile to give maximum cornering traction from modern trail tyres. The rear rim has been maximised for strength, boasting a wider 4mm bead and a slightly narrower internal rim width of 30mm to reduce rolling resistance without sacrificing comfort and traction. Read our report on compliance testing here.

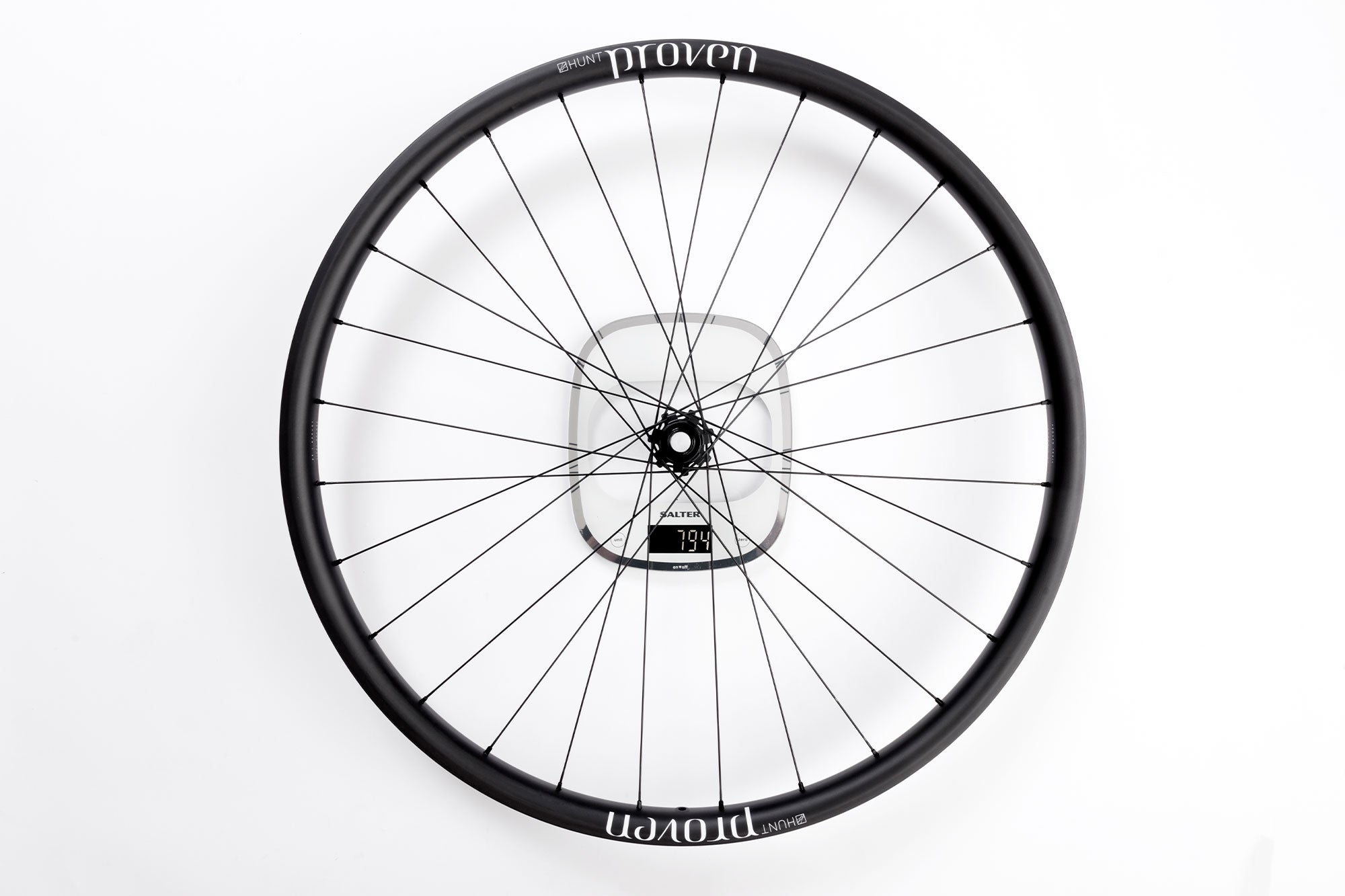

WEIGHT

Crafted for the demands of trail riding, HUNT Proven Carbon Trail H_Core achieves the perfect balance of durability and low weight. A tuned carbon layup delivers one of the strongest trail wheelsets in the industry, while the lightweight S_RapidEngage hub set, and triple-butted spokes further reduce weight. Weighing in at just 1732g for a 29-inch pair, this is the ultimate wheelset for all-day performance without compromise.

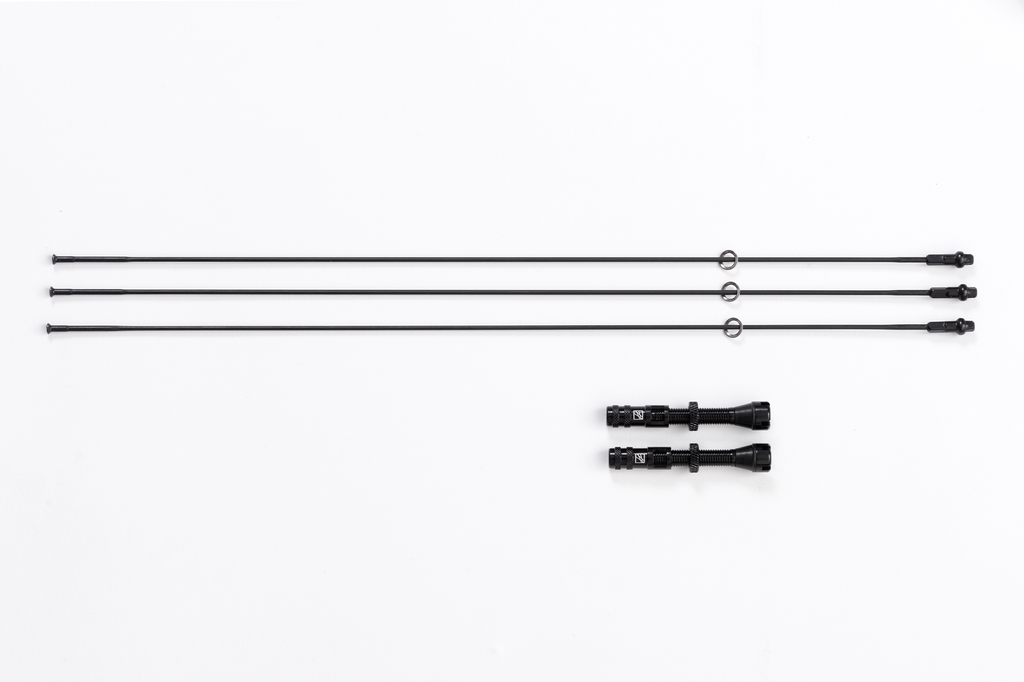

What's in the box _

  • Black Shield PET high tensile strength tubeless tape fitted to wheels.
  • Freehub fitted
  • 45mm Tubeless Valves
  • Spare of each spoke plus nipples
  • Quality control card signed by your wheel builder

WARRANTY_

These wheels come with H_CARE (Free Lifetime Crash Replacement) for the first owners when used with single crown forks. Read all about it here

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.

All HUNT wheels models have to pass our harsh rolling-drum fatigue tests for rider weight limits, please see here for more details. Max system weight 135kg (system weight : total weight of fully kitted up rider, bike and luggage). If a rider is over 125Kgs then an experienced bike mechanic should check the wheel regularly.
