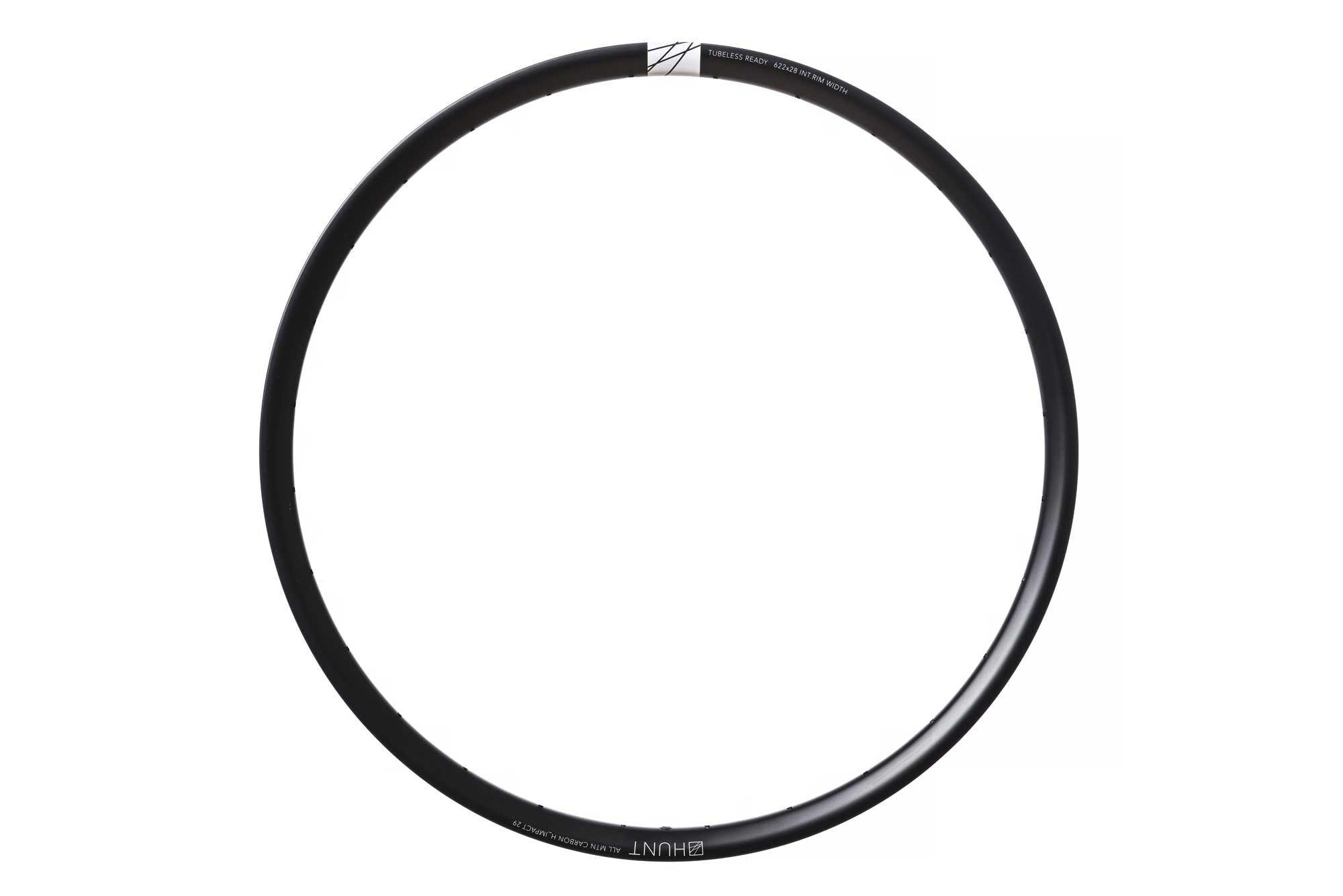

HUNT All Mountain Carbon H_Impact MTB 29 Rim | Front

500g Depth Width ext Width int size
24 mm 35 mm 28 mm 29"

All-Mountain Carbon: Front specific rim optimised for compliancy up front.

Responsive, compliant and incredibly strong.

£399
Limited Stock. Available Now.
Front / 28 - Limited StockItems are selected to ship from us in the week stated. Delivery time is 3-7 days*

International Orders ETA 3-7 days*


Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

All-MTN Carbon: Front and rear specific rims optimized for compliancy up front and high impact strength out back

Responsive, compliant and incredibly strong

29" | 28 Wide Int | 500g

We put a huge emphasis on durability for the All-MTN rim - Unidirectional T24/30 with 3K weave reinforced spoke holes, Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration. The resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

Front rim weight 535g – Excellent handling and vibration absorption due to the lower material density lay-up, matched to 28 spoke count to improve compliance and grip where it’s needed most.

Detailed Specifications

Rim

  • Hookless Tubeless-ready – designed to work excellently with tubeless tyres. Tubeless rim tape offered separately.
  • H_IMPACT Unidirectional T24/30 with 3K weave reinforced spoke holes.
  • Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • 28mm internal width ideal for 2.3"-2.5" tyre widths, but also work very well with 2.25"-2.6".
  • Maximum tyre pressure for this rim: Up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tyre.
  • ERD: 598mm
  • Lacing: Cross 3
  • Recommended Spoke Tensions: 105-120 kgf
