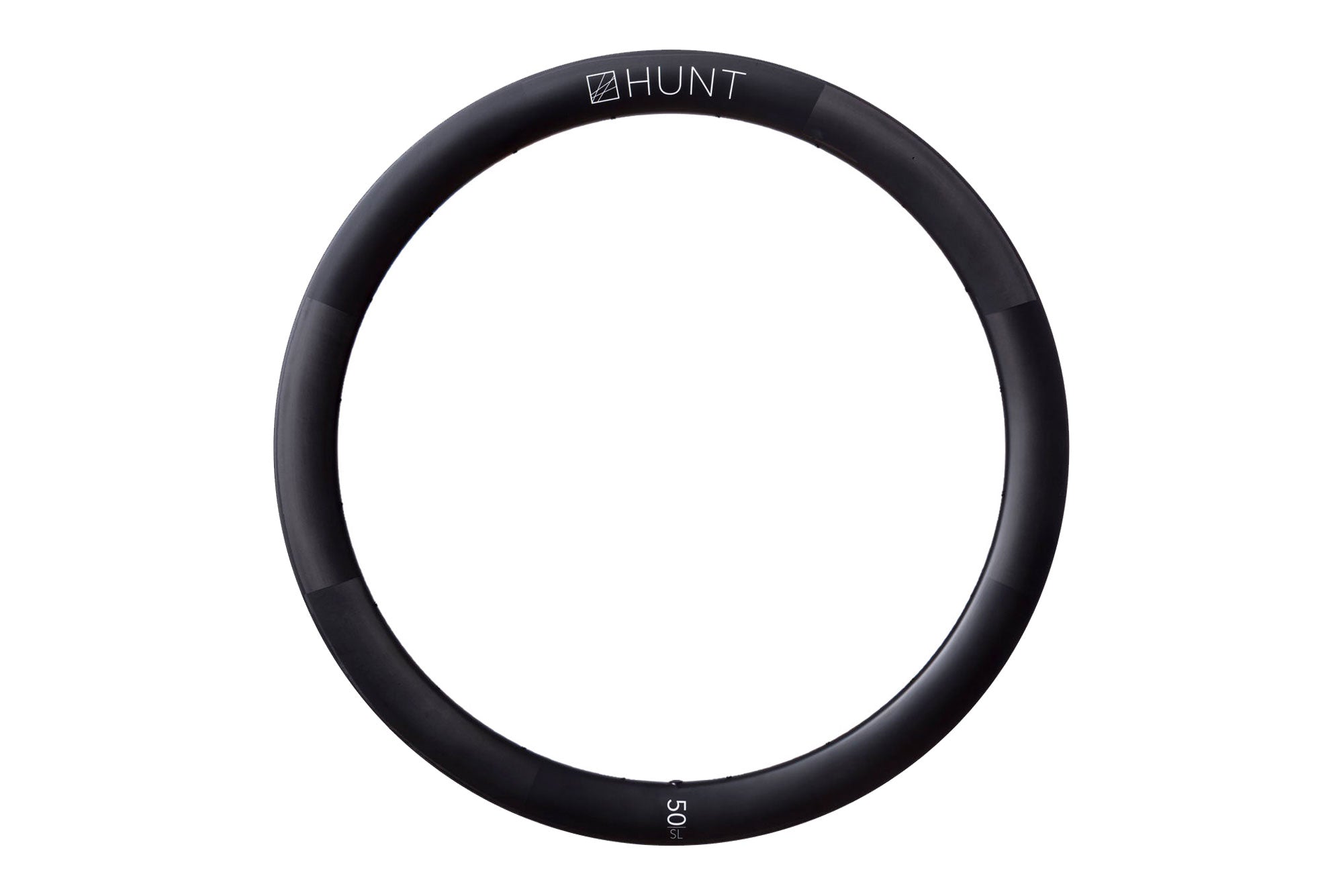

HUNT 50 Carbon Aero Disc V2 Rim | Front

With wind-cheating aerodynamic benefits and proven track record in racing, the 50 Carbon Aero Disc rim is a favourite among riders for good reason. Ridden to Giro D'Italia stage victory by Team Qhubeka (Mauro Schmid, Stage 11, 2021 Edition).

Tyre size: Optimized for 25 to 28mm tyres; work well with 23mm up to 40mm.

£349
Limited Stock. Available Now.
Front / 20 - Limited StockItems are selected to ship from us in the week stated. Delivery time is 3-7 days*

International Orders ETA 3-7 days*


Our products are in high demand, don't miss out. Order now.

*If shown in stock

Aero, deep, rounded & fast | Super-wide wind-cheating profile.

50 DEEP | 27 WIDE Ext | 20 Wide Int | 472G

Disc specific high-performance rim technology that will deliver you to the finish every time. A strong and super-lightweight rim featuring unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes. The seriously wide aero-rounded profile delivers excellent handling and speed. The evolution of disc brake specific construction has allowed massive weight savings over equivalent rim brake-rims. The removal of braking forces on the rim allows a strong but very light rim to be designed that can focus on its primary roles of supporting the tyre and spoke forces. The 50 Carbon Aero Disc specific rim's smooth rounded disc-specific sidewall also looks stunning of course. The rim dimensions are seriously wide at 27mm (20mm internal) which creates a great tyre profile with wider 23-50mm tyres, giving excellent grip and lower rolling resistance.

V:Absorbe resin reduces vibration and massively improves impact resistance. Disc brake rims are obviously not required to handle the high temperatures induced by prolonged rim braking. We have made the most of this and used our new V:Absorbe resin blend in the carbon pre-preg which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

Detailed Specifications

Rim

  • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless rim tape offered separately.
  • Disc-specific tubeless-ready profile
  • H-lock bead-seat up-kicks for easy and secure tubeless installation
  • Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
  • 27mm outer and 20mm inner width ideal for 23-50mm tyre widths
  • 50mm depth
  • Matt black base finished with matt white contrasting graphics.
  • Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres. Maximum tyre pressures for other tyre sizes: 30mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 40psi, 46mm+ do not exceed 35psi. 100psi is more than enough for any rider on road. Please do not exceed the maximum pressure stated on your tyre. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
  • ERD 538.7mm
  • Lacing:
    • Front - Cross 2
    • Rear - Cross 2 (Interlaced)
  • Recommended spoke tension:
    • Front/Rear - 115-130 kgf
