HUNT 40 Limitless Gravel Aero UD Carbon Spoke Wheelset
Depth | Width ext | Width int | size | |
Stainless Steel Bearings - Nov Wk 4 (£1,849 GBP)
CeramicSpeed Bearings - Nov Wk 4 (£2,449 GBP)Items are selected to ship from us in the week stated. Delivery time is 3-7 days*
We will ask for axle info after checkout.
Order ETA 3-7 days*
Our wheels are in high demand, don't miss out. Order now.
*If shown in stock
H_CARE
FREE LIFETIME CRASH REPLACEMENT
To ensure you're not out of pocket should the worst happen. Learn more.
The Purpose _
The Purpose _

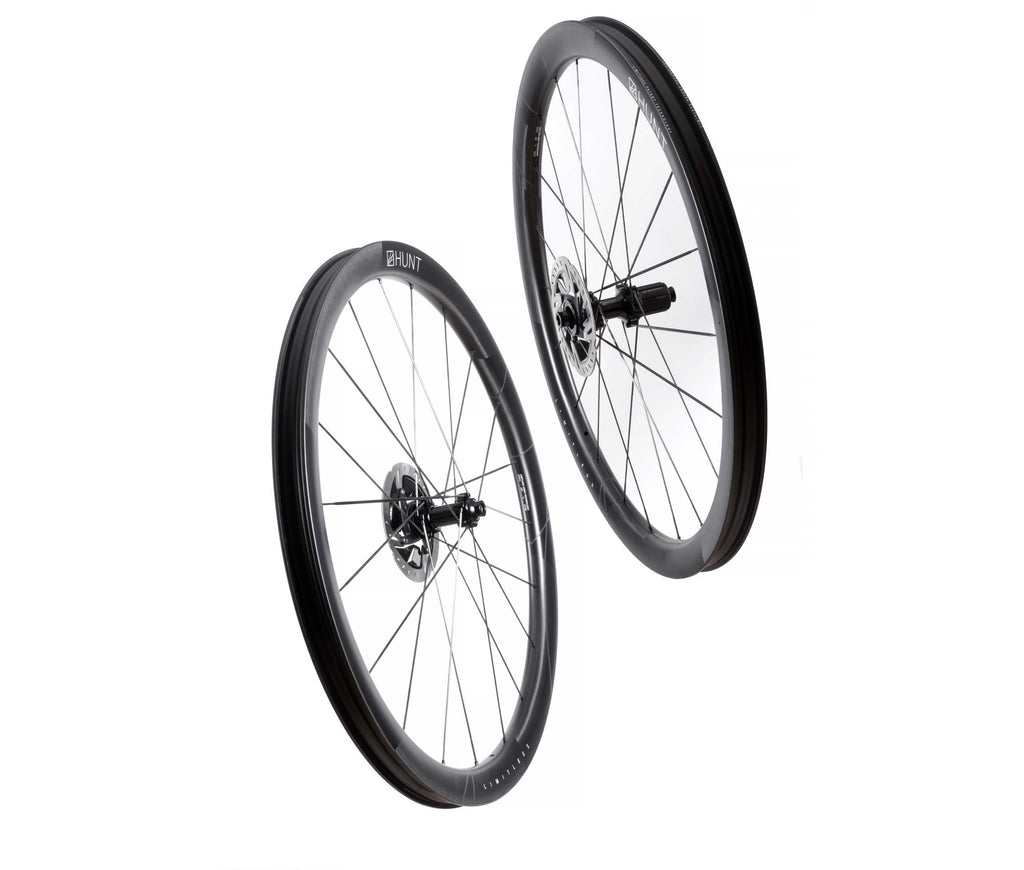

Full Specs _

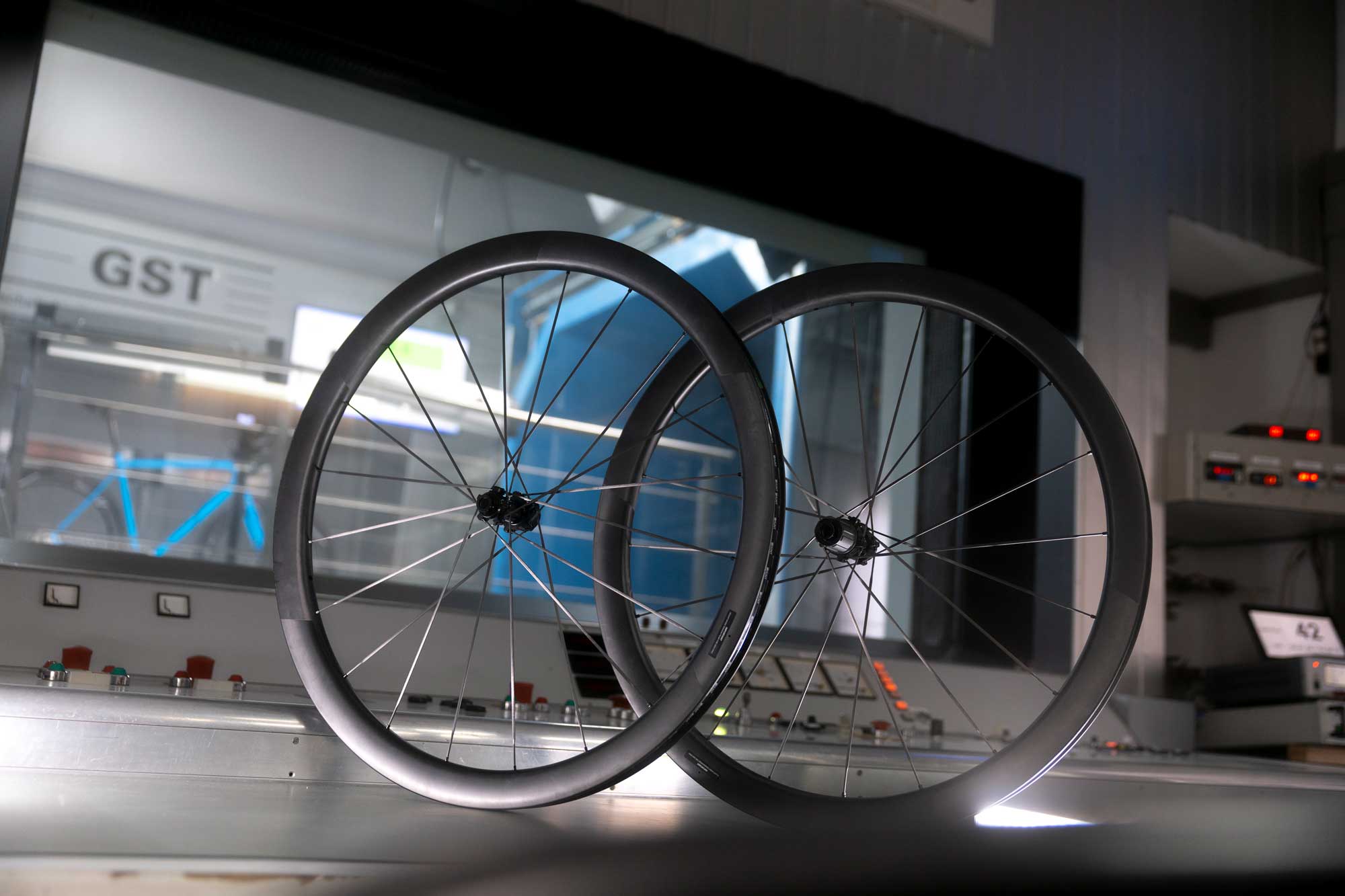

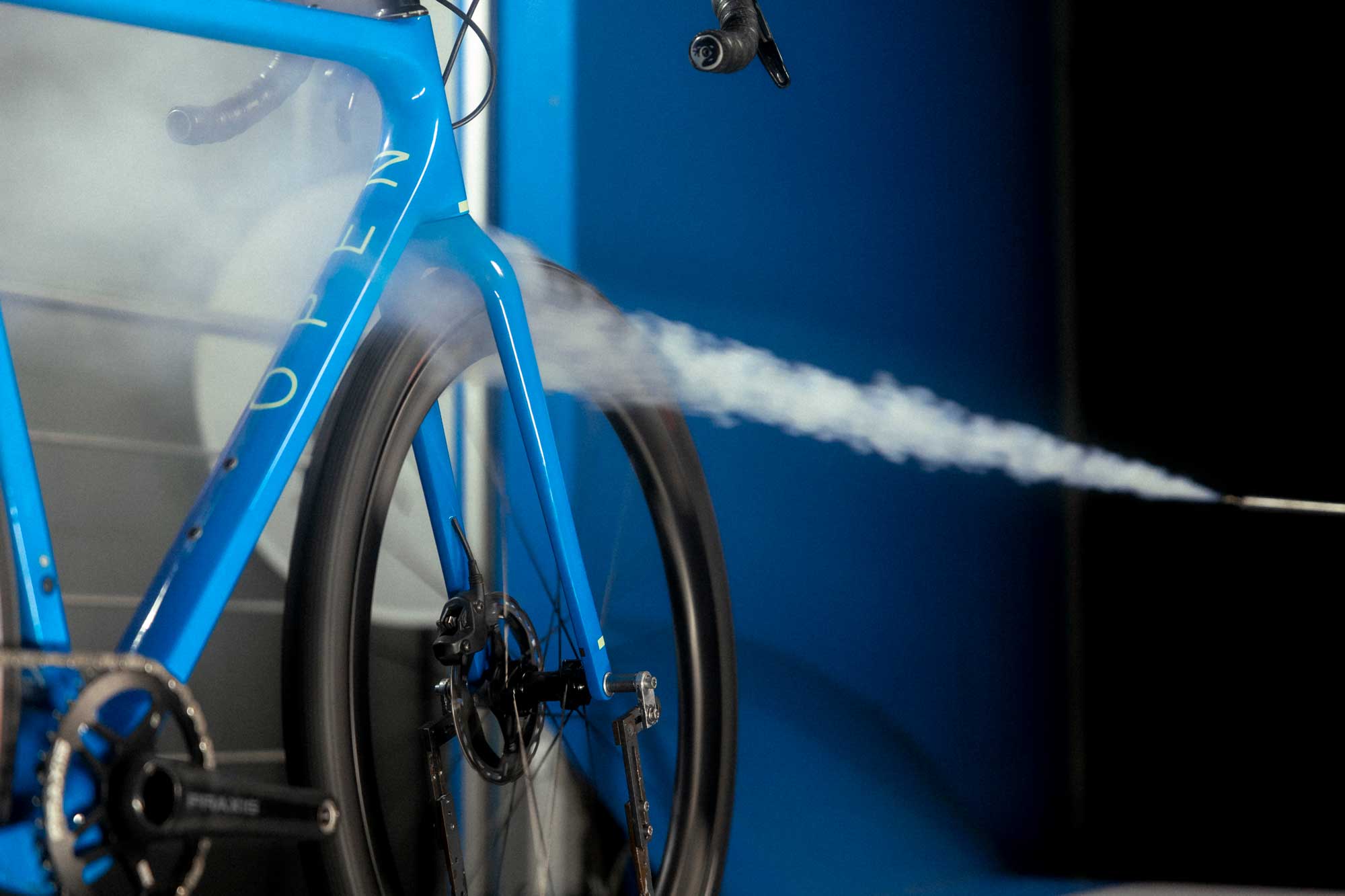

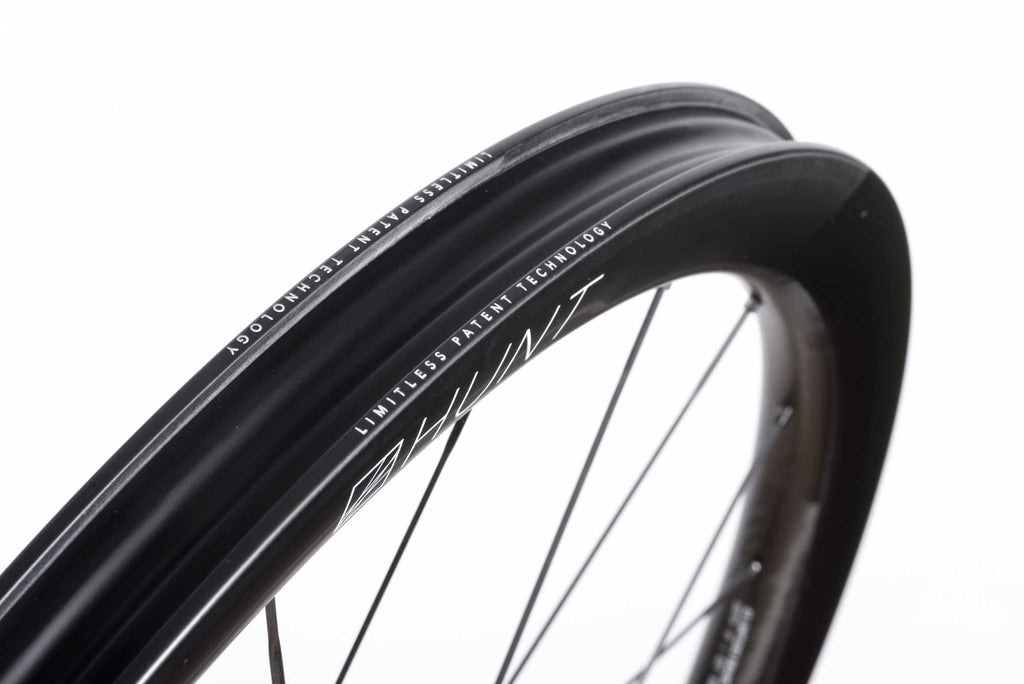

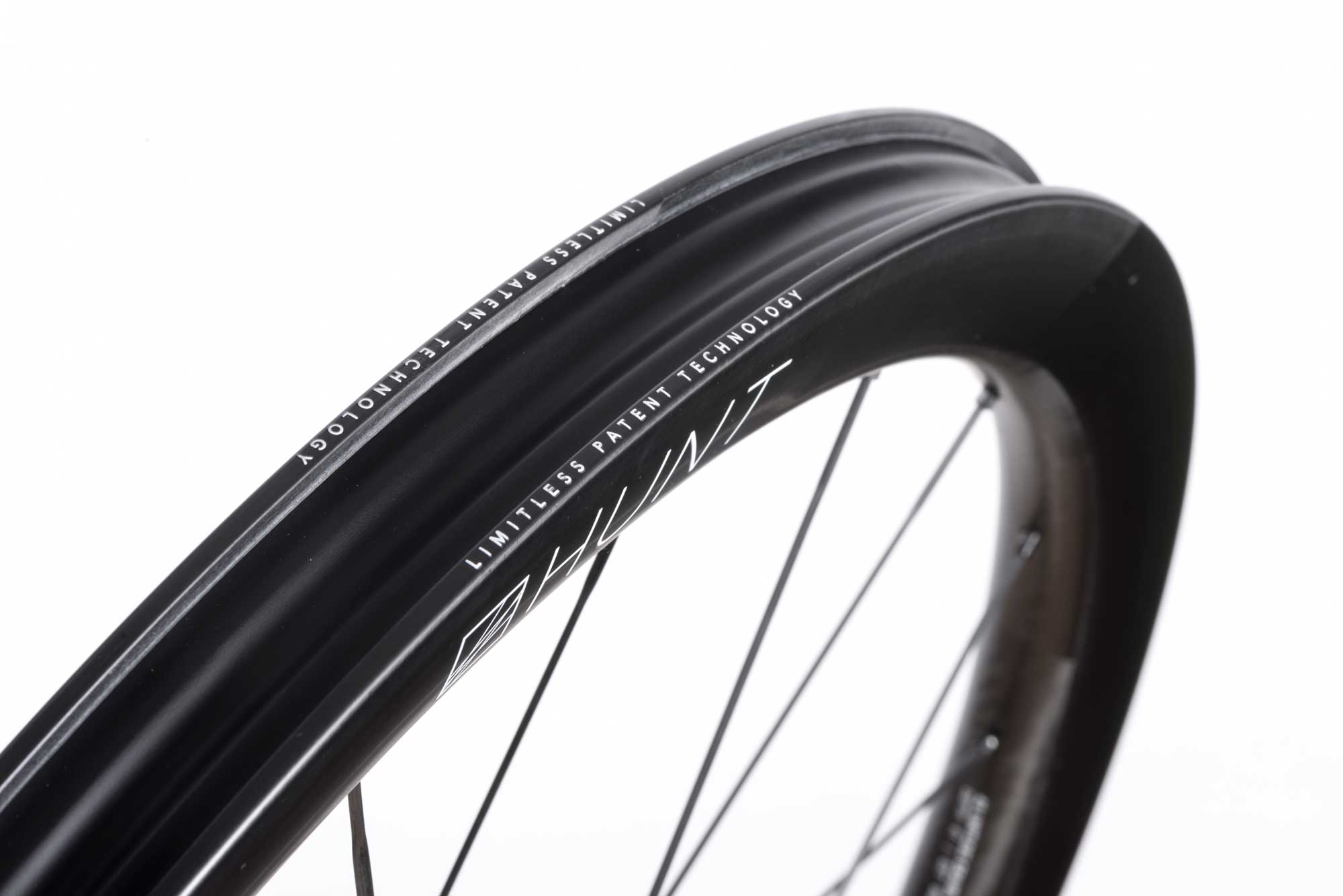

RimsWind tunnel tested, aerodynamically optimised for 40-45mm tyres Mixed rim profiles with Limitless Width technology for Aero optimization:
- Front rim dimensions: 40mm deep | 36mm external width | 27mm internal width
- Rear Rim dimensions: 41mm deep | 35mm external width | 26mm internal width
- ETRTO compliant for use with 35c tyres and wider H-lock tyre security channel Pinch flat protection with 4.5mm bead thickness Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes Hookless TSS profile for optimised weight and strength Reflective graphics with matte clear coat

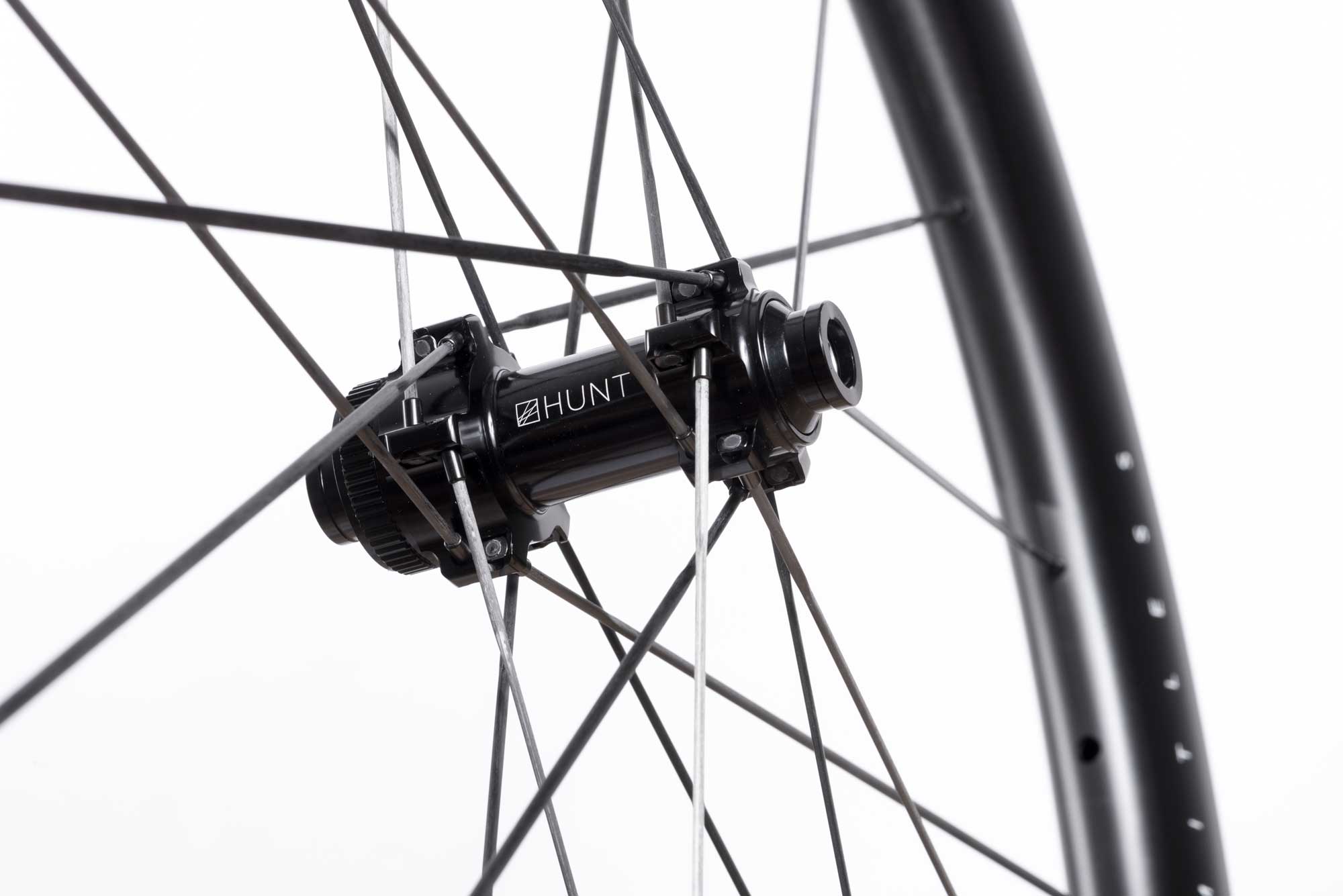

Front HubForged and CNC’d 6061-T6 heat treated aluminium alloy body 7075-T6 aluminium alloy axle Anti rotational keyed spoke holes Polished anodized black finish with laser graphics Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.

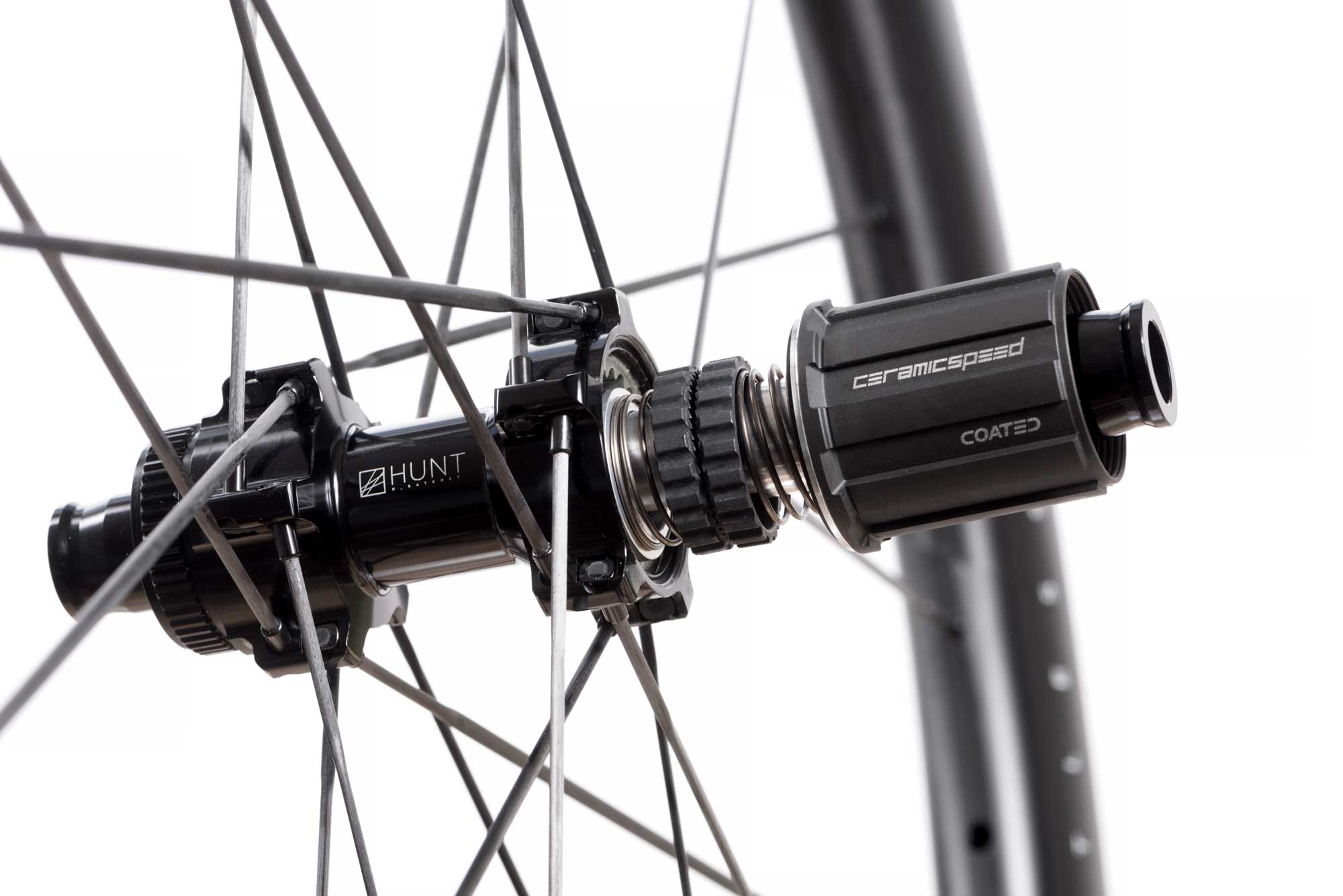

Rear HubH_Ratchet DBL 48T Forged and CNC’d 6061-T6 heat treated aluminium alloy body 7075-T6 aluminium alloy axle Dual sided ratchet rings, 7.5˚ engagement H_CERAMIK coated alloy freehub body, provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies All freehub standards accounted for Anti rotational keyed spoke holes Toolless fitment making routine servicing a simple task Polished anodized black finish with laser graphics Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
BearingsStainless Steel Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather Sealed cartridge replaceable units Dual full-contact seals CeramicSpeed Bearings Industry leading CeramicSpeed ceramic coated bearings, designed specifically for our H_Ratchet hubset to maximize durability and performance 75% tougher than standard hardened steel races, boasting an average lifetime seven and a half times longer than other non-coated solutions CeramicSpeed bearing balls are of the highest quality, featuring the Finest achievable surface finish and roundness Life-time warranty (When registered with CeramicSpeed)

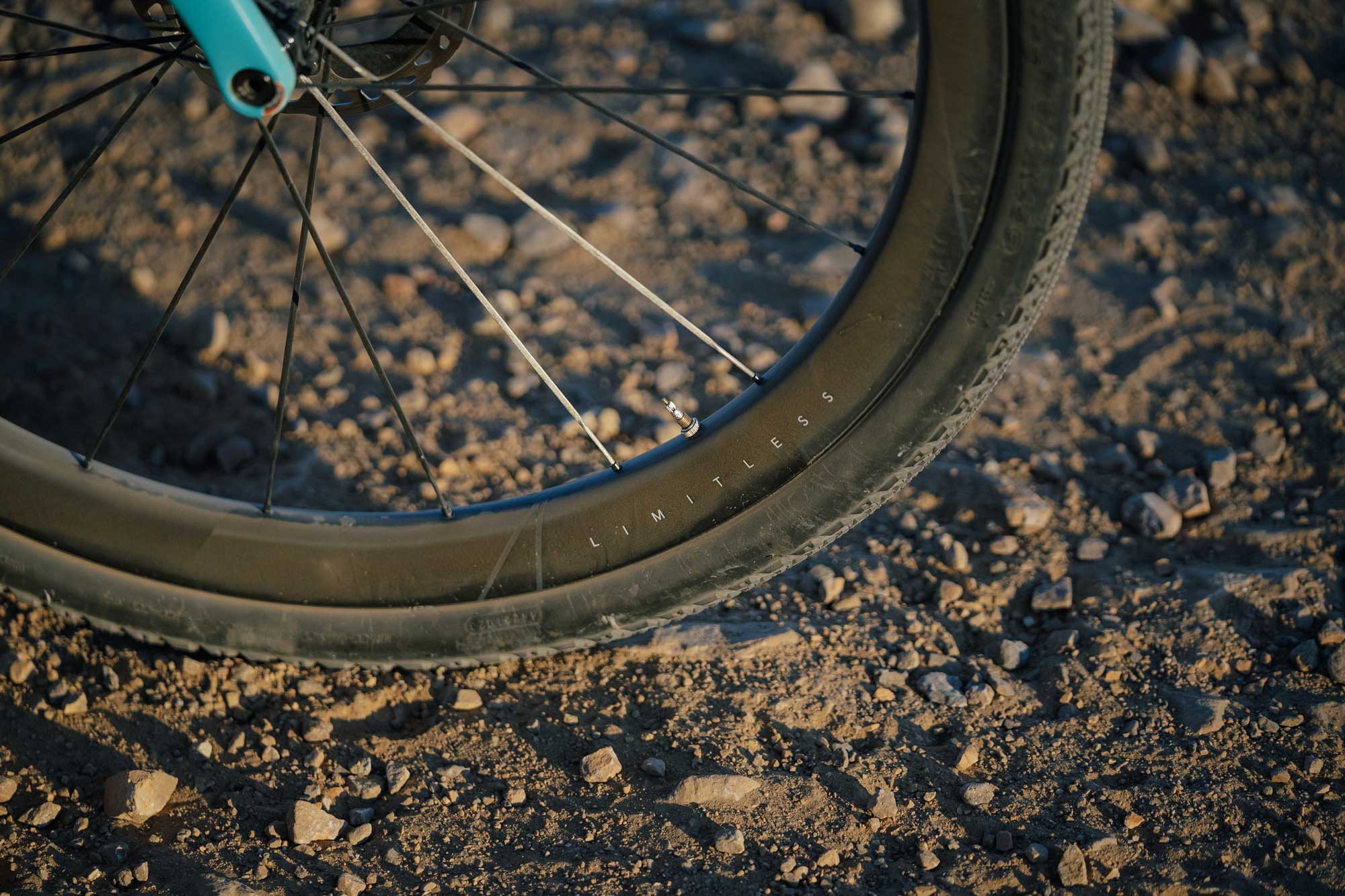

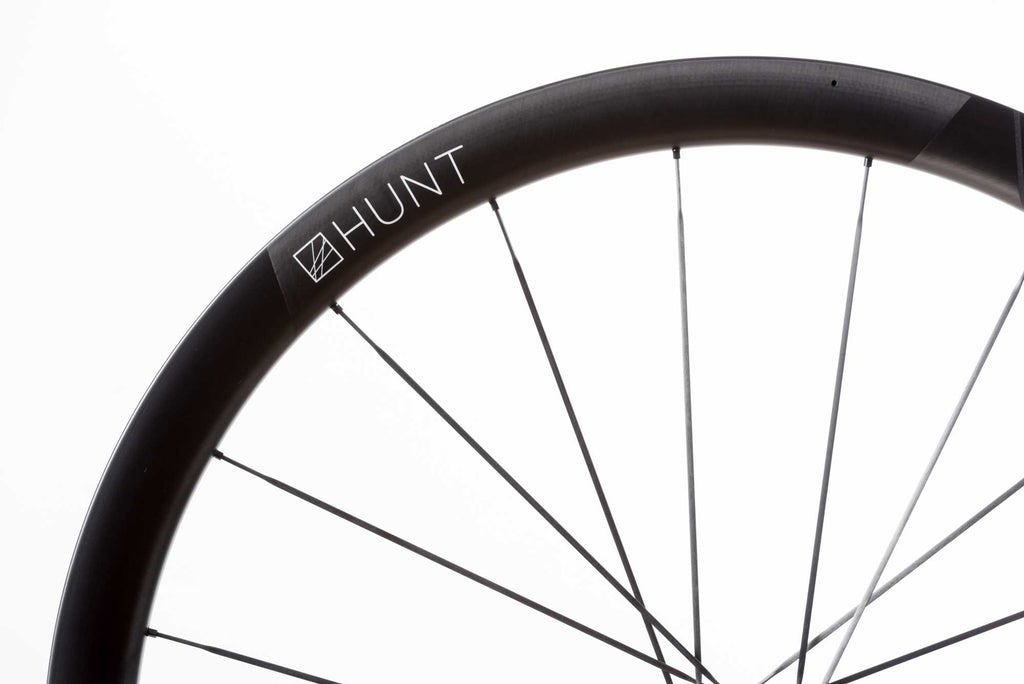

SpokesUD carbon fibre spokes with incredibly high strength, stiffness and weighing only 2.7g per spoke UD carbon spokes reduce weight and road vibration while increasing lateral responsiveness by 6% 20 Spokes Front and Rear (2 cross lacing pattern) Non interlacing for increased compliance
NipplesTaperLock nipples secure spoke heads to the hub Nyloc thread build with highly consistent tension Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing Internal nipple for truing Black anodized finish
Tyres InfoHUNT recommends a 40-45mm tyre for best performance, tyre widths between 35mm and 60mm are also safe to use. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower. Only use tyres marked as compatible with hookless (TSS) rims. Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post here about this. Tubeless-ready for lower weight and rolling resistance.
Axle SizesThese wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.
What's in the box _
WARRANTY_
We've got your back
ABOUT HUNT _
Hunt Bike Wheels are a team of talented, passionate riders with a wealth of industry experience, and set out to bring you the latest, most practical, forward-thinking technology in all things round.
Our mission is to serve devoted riders with the highest performing products, backed by best-in-class rider support.
All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
