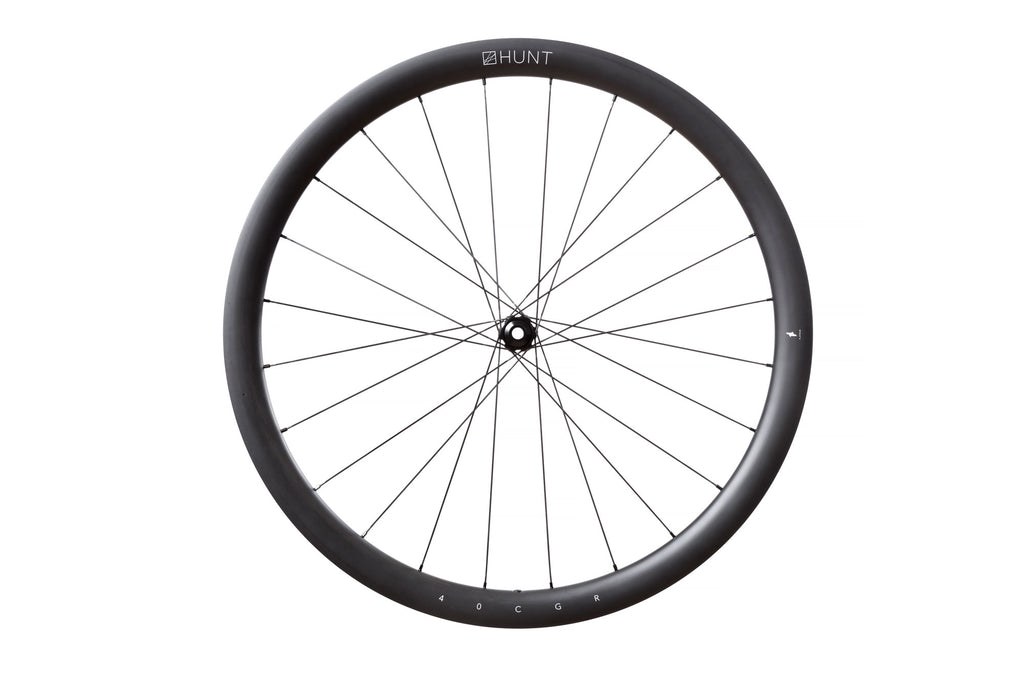

HUNT 40 Carbon Gravel Race Wheelset

1431g	Depth	Width ext	Width int	size
1431g	40 mm	30 mm	25 mm	700c

A race-ready and versatile gravel wheelset built to offer speed and responsiveness for the sharp end of today's gravel racing scene. Made from fully recyclable carbon fibre and resin using H_Cyclo technology, blending purpose-built performance with improved sustainability.

Tyre Size: Aero optimised for 35 to 50mm tyres; work well with 29mm up to 60mm.

GEARJUNKIE REVIEW

“HUNT Bike Wheels have seemingly solved the Rubik’s cube, allowing the brand to recycle traditional thermoset carbon wheels back into materials that can form other carbon parts”

Freehub

£879.20 £1,099.00

20% off

Deposit Option, refundable. (In dropdown)

Pre-Order Now. Shipping:
Shimano/SRAM HG Splined - Limited Stock
SRAM XD/XDR - Limited Stock
Campagnolo N3W (Ekar) - Jan Wk 4
Shimano Microspline - Limited StockItems are selected to ship from us in the week stated. Delivery time is 3-7 days*

We will ask for axle info after checkout.

Order ETA 3-7 days*
Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

More details

The Purpose _

A lightweight, responsive and versatile gravel wheelset designed to meet the needs of the modern gravel rider and racer, made using H_Cyclo recyclable resin and carbon technology. Wide and light 40mm-deep hookless rims offer quick acceleration, aerodynamic efficiency and race-ready durability, optimised for modern wide gravel race tyres. Laced with our quick-engaging H_Ratchet 40T DBL hubs, the complete wheelset weighs in just over 1400 grams.

Built to transform how your gravel bike performs on your fast and steep gravel rides or races.

KEY FEATURES_

H_Cyclo

Fully recyclable thermoset epoxy resin technology that allows for the separation and re-use of both the carbon fibre material and resin components at end-of-life without creating waste solvents or pollutants. Race-ready rims that will never see the landfill: performance meets purpose.

Tubeless Design

40mm-deep and 30mm-wide external rim profile, featuring an ETRTO-compliant tubeless straight-sidewall rim with 25mm internal width, designed for modern gravel tubeless tyre compatibility.

H_Ratchet 40T DBL Hub

Dual-sided 40-tooth ratchet system offers 9-degree engagement and durability for loaded adventures, with all 40 teeth engaging simultaneously to handle high torque loads.

TECHNOLOGY _

Fully recyclable thermoset carbon technology with no performance compromise.

H_Cyclo technology enables the recycling of both the carbon fibre materials and the epoxy resin used in the thermoset carbon fibre molding process, which is the most mature carbon fibre manufacturing process available for bicycle rims and components, generally yielding a higher strength-to-weight ratio when compared to other carbon production methods such as thermo-plastic resin systems. This may well change over time as technologies mature, but for now thermoset is the leader in strength-to-weight ratio for bicycle rims and frames.

Using a chemical solution called CleaVER, the carbon fibres and epoxy resin are separated using heat and agitation, so that both components can be re-used to create new (smaller format) carbon components without the by-products of waste solvents or pollutants. Secondary products can be constructed without the addition of virgin carbon fibres, significantly reducing the production emissions required. Originally created to enable the recycling of large format glass fibre wind turbine blades, the recyclable resin has no impact on the structural integrity or strength-to-weight ratio of the carbon layup, making the technology ideal for precision, high-performance rims. HUNT will cover the collection of product at end-of-life, making the process seamless and no-cost for riders, should their wheels become unusable in an accident or crash.

To learn more about the H_Cyclo technology and process, read our explainer here.

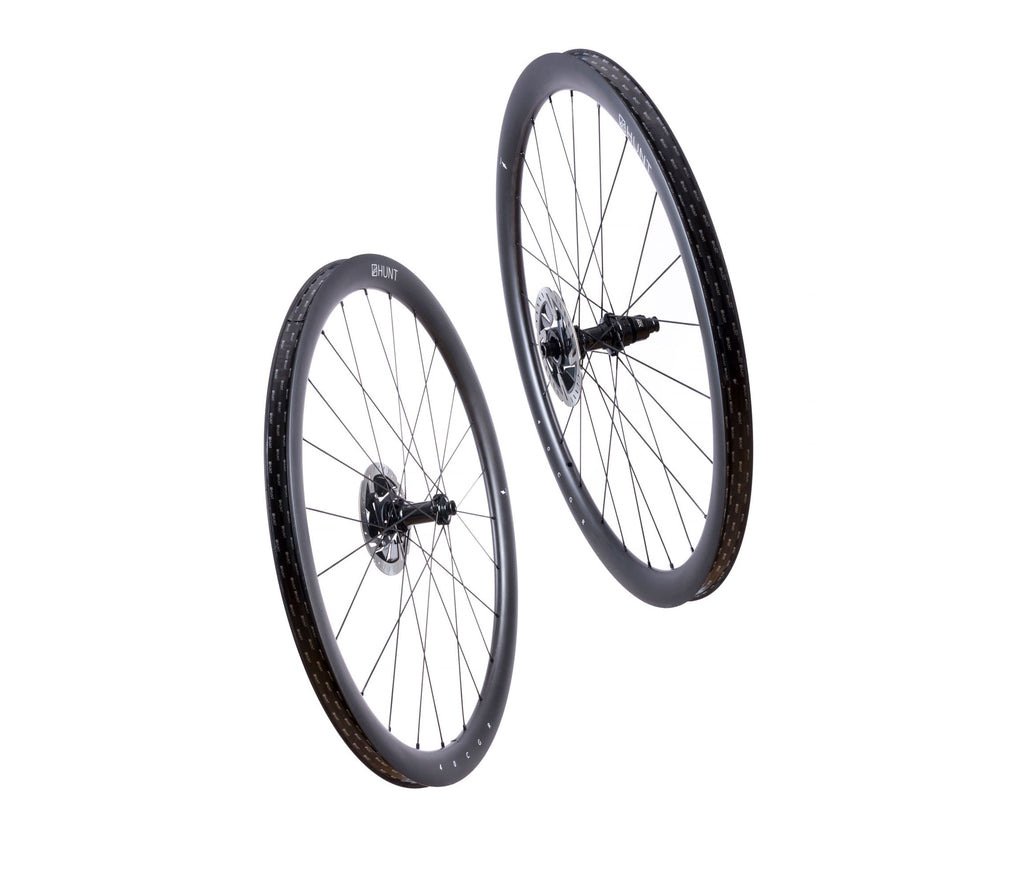

Full Specs _

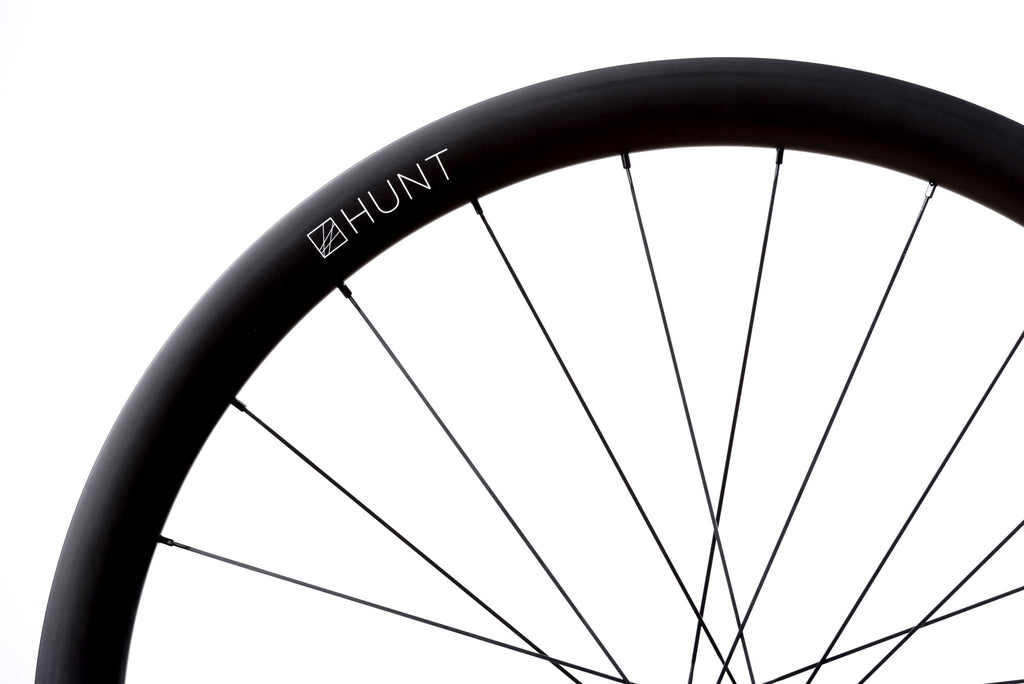

Rims

Disc-specific hookless/straight-sidewall design. H_Cyclo Recyclable resin technology. 30mm external and 25mm internal width. H_LOCK bead-seat up-kicks, for easy and secure tubeless installation. UD carbon fibre finish with matt white contrasting graphics.

Disc-specific hookless/straight-sidewall design.
H_Cyclo Recyclable resin technology.
30mm external and 25mm internal width.
H_LOCK bead-seat up-kicks, for easy and secure tubeless installation.
UD carbon fibre finish with matt white contrasting graphics.

Spokes

24 front and 24 rear, laced 2-cross Pillar PSR XTRA 1420 Aero Butted 2.0-2.2/0.95-2.0 with 2.2 PSR section. Straight-pull for excellent torsional strength and direct power transfer. Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden. Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area. Black stainless treatment.

24 front and 24 rear, laced 2-cross
Pillar PSR XTRA 1420 Aero Butted 2.0-2.2/0.95-2.0 with 2.2 PSR section.
Straight-pull for excellent torsional strength and direct power transfer.
Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
Black stainless treatment.

Nipples

Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. 16mm length with washer for a strong connection to the spoke added durability. 14 gauge. Black anodized finish.

Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
16mm length with washer for a strong connection to the spoke added durability.
14 gauge.
Black anodized finish.

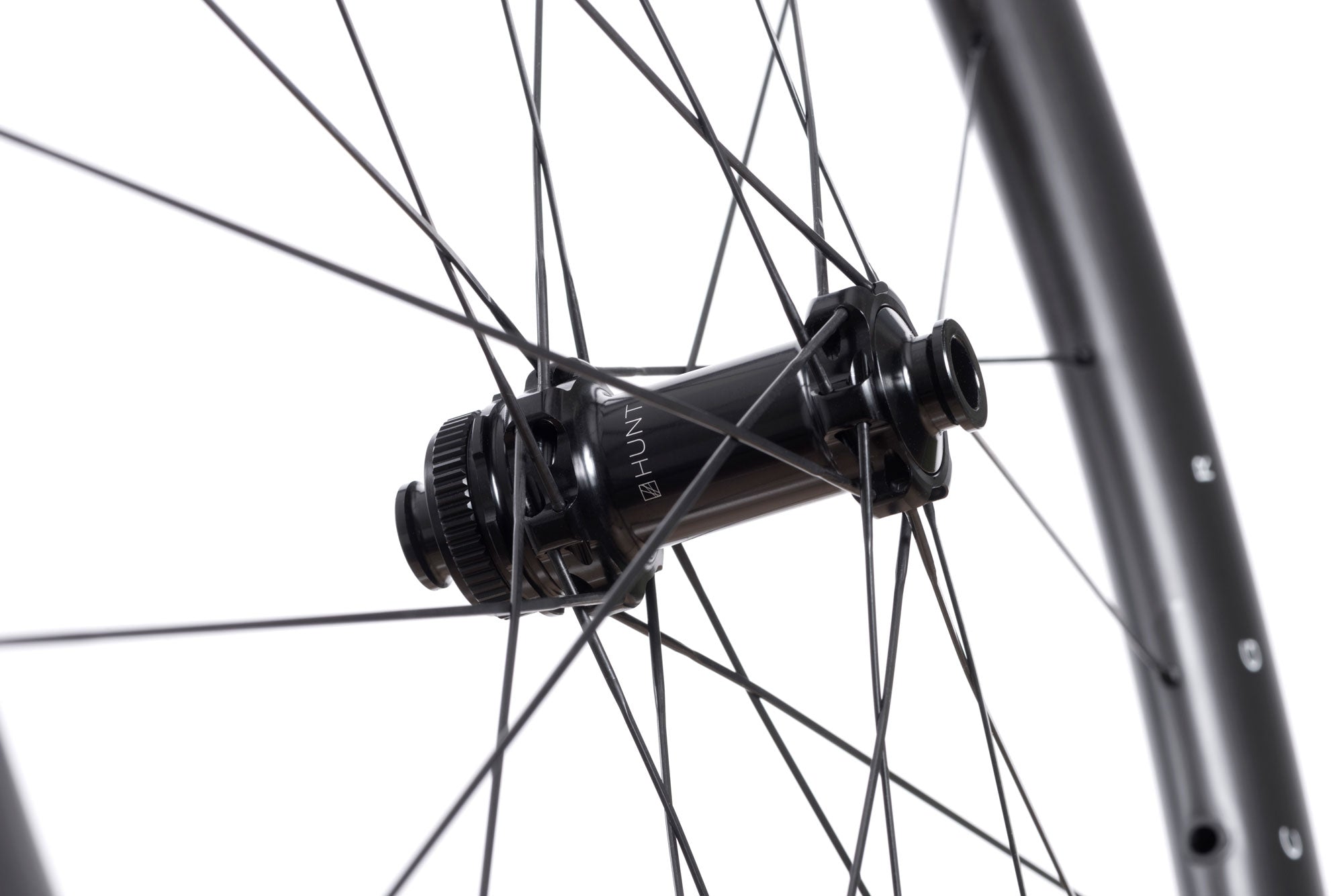

Front Hub

Forged and CNC’d 6066-T6 heat-treated aluminium alloy hub shell. 7075-T6 floating aluminium alloy axles. QR, 12 & 15mm Front Thru-axle adaptability. Larger diameter bearings for increased Gravel ready durability. Center-lock disc mount. If you require a 6 bolt adapter you can purchase separately here.

Forged and CNC’d 6066-T6 heat-treated aluminium alloy hub shell.
7075-T6 floating aluminium alloy axles.
QR, 12 & 15mm Front Thru-axle adaptability.
Larger diameter bearings for increased Gravel ready durability.
Center-lock disc mount. If you require a 6 bolt adapter you can purchase separately here.

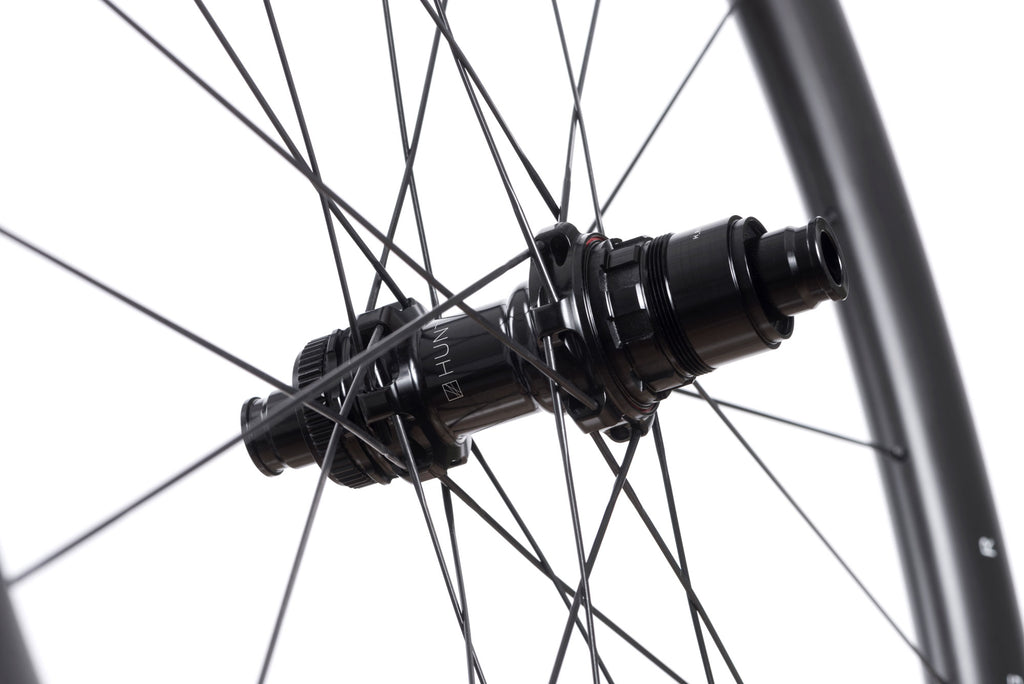

Rear Hub

H_Ratchet 40-tooth, dual-sided ratchet rings, 9˚ engagement Floating ratchet rings are contained as a cassette, meaning they won’t pop out in pieces during routine service. H_Ceramik freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies All freehub standards accounted for. Forged and CNC’d 6066-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axle. Center-lock disc mount. If you require a 6 bolt adapter you can purchase separately here Polished anodized black finish with laser graphics.

H_Ratchet 40-tooth, dual-sided ratchet rings, 9˚ engagement
Floating ratchet rings are contained as a cassette, meaning they won’t pop out in pieces during routine service.
H_Ceramik freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies
All freehub standards accounted for.
Forged and CNC’d 6066-T6 heat treated aluminium alloy body.
7075-T6 aluminium alloy axle.
Center-lock disc mount. If you require a 6 bolt adapter you can purchase separately here
Polished anodized black finish with laser graphics.

Bearings

Super smooth precision bearings Sealed cartridge replaceable units Dual full-contact seals

Super smooth precision bearings
Sealed cartridge replaceable units
Dual full-contact seals

Tyres Info

HUNT recommends a 35-50mm tyre for best performance, tyre widths between 29mm and 60mm are also safe to use. Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here. Tubeless-ready for lower weight and rolling resistance. Only use tyres marked as compatible with hookless (TSS) rims. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.

HUNT recommends a 35-50mm tyre for best performance, tyre widths between 29mm and 60mm are also safe to use.
Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
Tubeless-ready for lower weight and rolling resistance.
Only use tyres marked as compatible with hookless (TSS) rims.
You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.

Axle Sizes

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't get it quite right, we're happy to send you the correct adapters. Please note; this form is shown after you have completed your order.

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:

Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm
Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't get it quite right, we're happy to send you the correct adapters.

Please note; this form is shown after you have completed your order.

HIGH SPECIFICATION COMPONENTS _

H_Cyclo Rims

Fully recyclable and reusable epoxy resin technology, H_Cyclo, allows HUNT to recycle and reuse the carbon fibre from this wheelset. Utilizing this technology, end-of-life carbon composites undergo a process where the resin is separated from the fibres, allowing them to be utilized into new applications.

H_Ratchet 40T DBL Hub

HUNT H_Ratchet DBL, 40T dual sided ratchet system, 9-degree engagement.

Precision Bearings

Double sealed stainless steel cartridge bearings offer smooth, reliable service with low friction.

Freehub Body

Featuring HUNT’s H_Ratchet double-sided system (with two floating ratchet rings), with a 40t ratchet ring resulting in just 9˚ engagement. The freehub benefits from H_Ceramik anti-bite coating to ensure maximum durability. Durability is a theme for HUNT, and so all our freehub bodies have to provide excellent durability against cassette sprocket damage often seen on standard alloy freehub bodies.

REVIEWS _

Bike Magazine and Websites Expert's Views

GEARJUNKIE REVIEW

“HUNT Bike Wheels have seemingly solved the Rubik’s cube, allowing the brand to recycle traditional thermoset carbon wheels back into materials that can form other carbon parts”

CYCLINGNEWS 5 STAR REVIEW

"I love the balance of responsiveness and ability to hold speed. I like the way these wheels feel under a bike."

What's in the box _

HUNT Black Shield tubeless tape fitted to wheels.
The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
Cassette spacer for 8/9/10 speed and XDR-XD compatibility.
55mm Tubeless Valves.
Spare of each spoke plus nipples.
Quality control card signed by your wheel builder.

<h1>In the Box</h1><ul><li>Hunt Black Shield tubeless tape fitted to wheels.</li><li>The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.</li><li>Cassette spacer for 8/9/10 speed</li><li>Tubeless Valves</li><li>Spare of each spoke plus nipples</li><li>Quality control card signed by your wheel builder</li></ul>

WARRANTY_

A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.

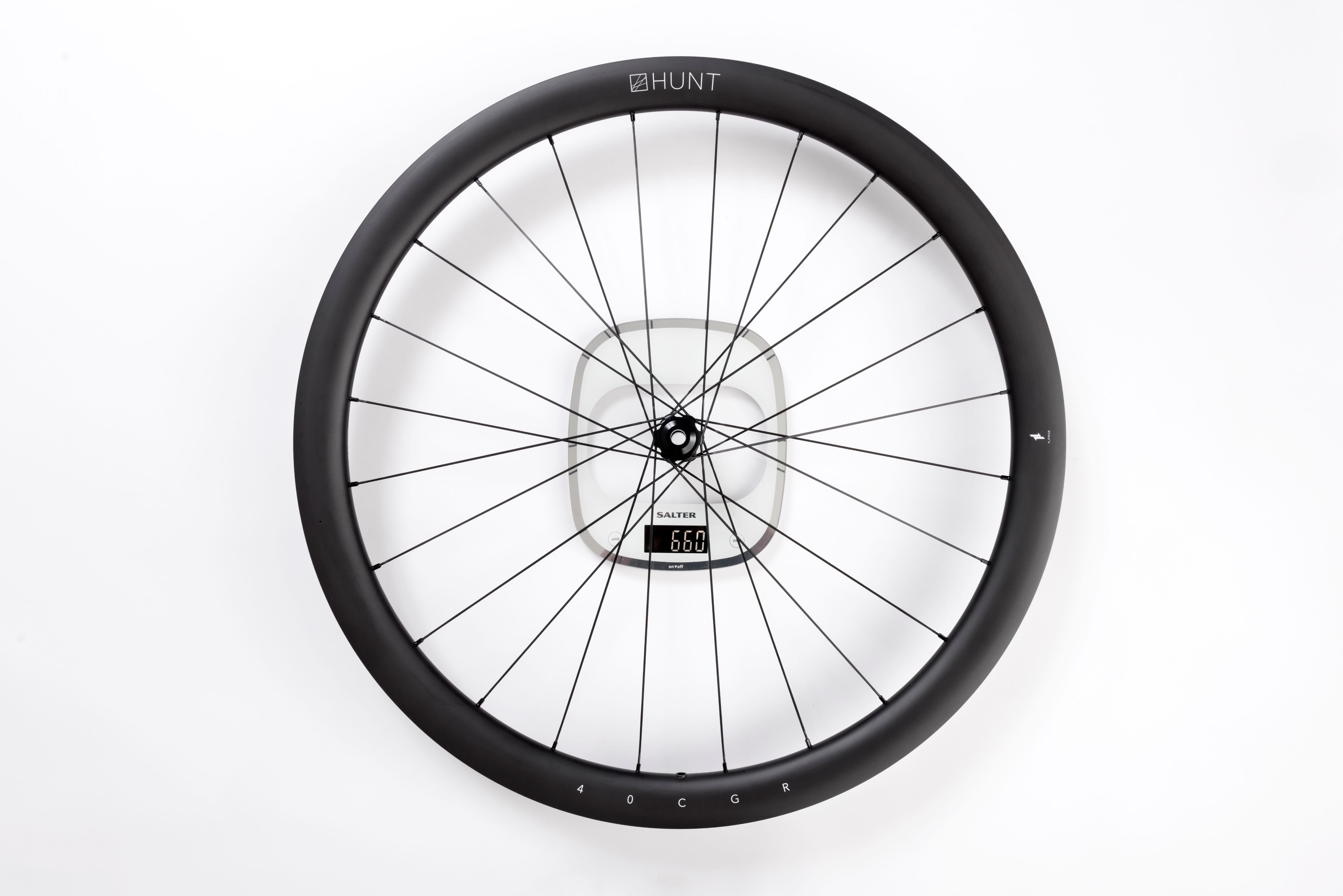

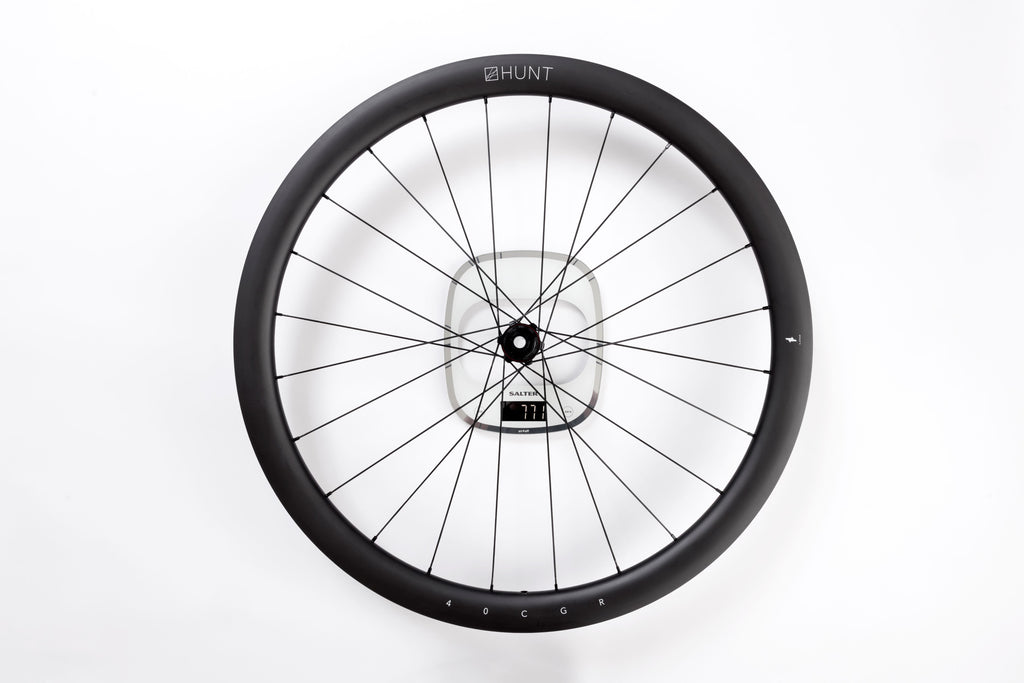

Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.
