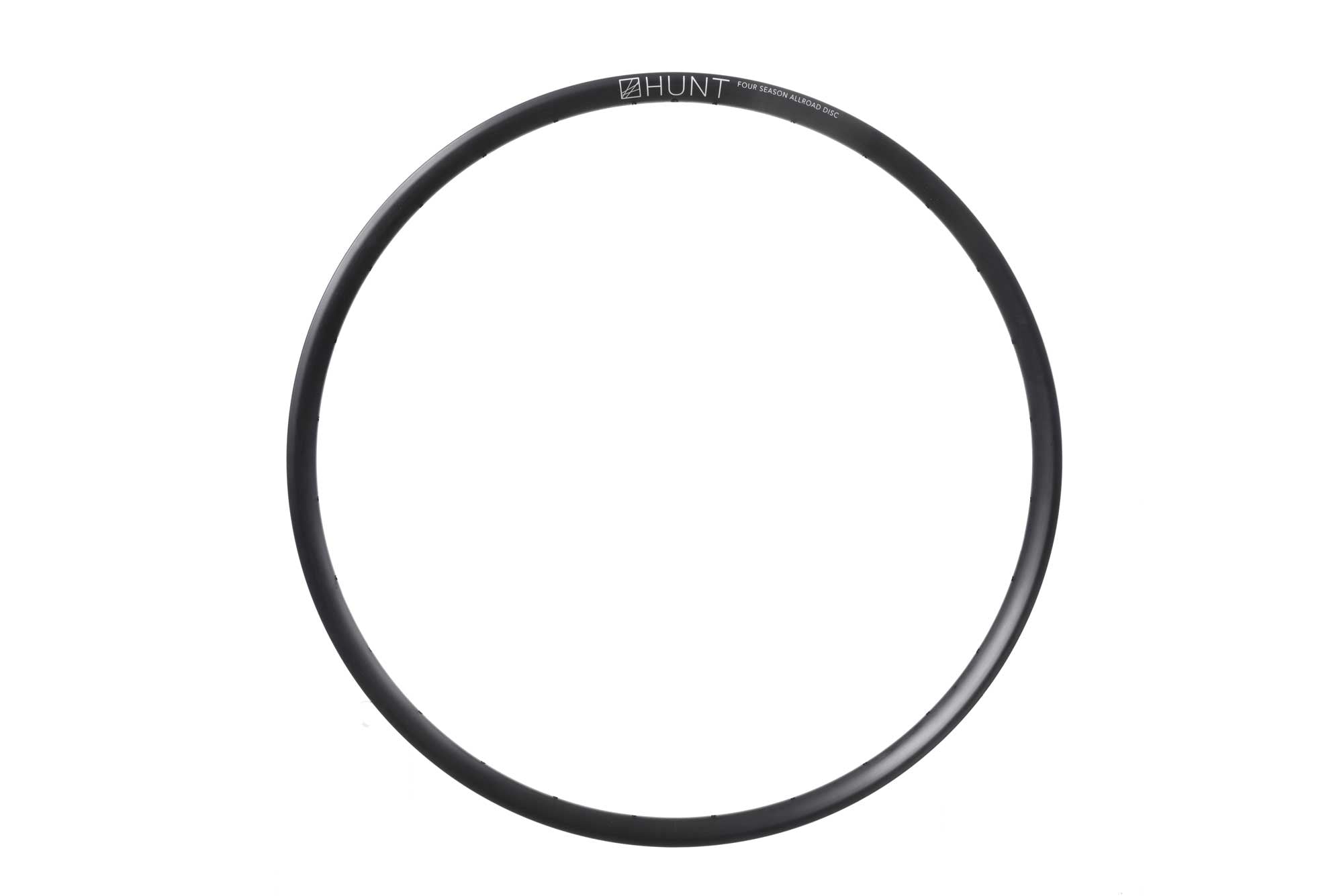

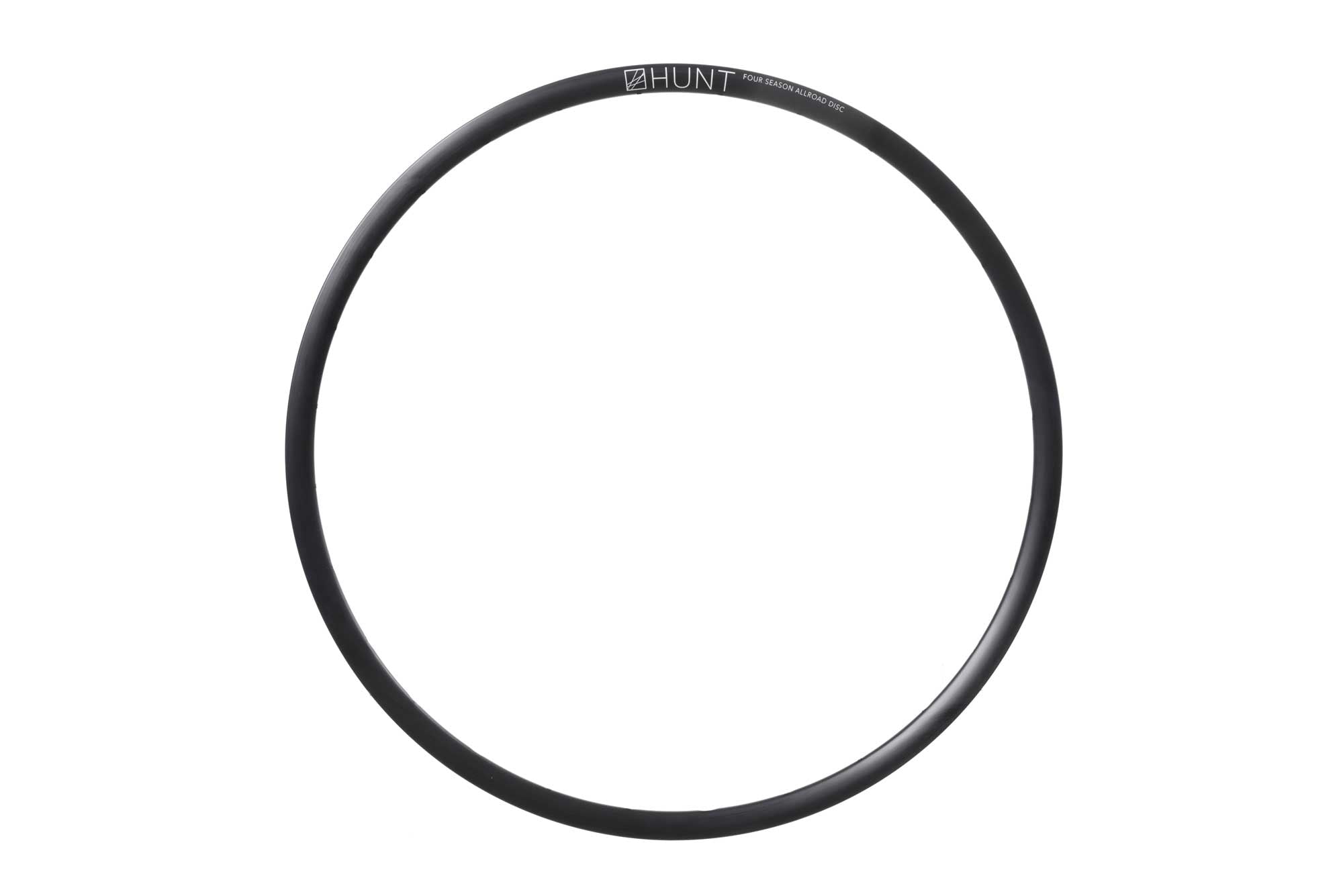

HUNT 4 Season All-Road Disc Rim | Front/Rear
HUNT 4 Season All-Road Disc Rim | Front/Rear
HUNT 4 Season All-Road Disc Rim | Front/Rear
<h1>Rims</h1><i>A strong and lightweight 6061-T6 heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is disc specific which allows higher-strength to weight as no reinforcement is required for a braking surface. The extra wide rim at 25mm (20mm internal) which creates a great tyre profile with wider 25-50mm tyres, giving excellent grip and lower rolling resistance.</i>

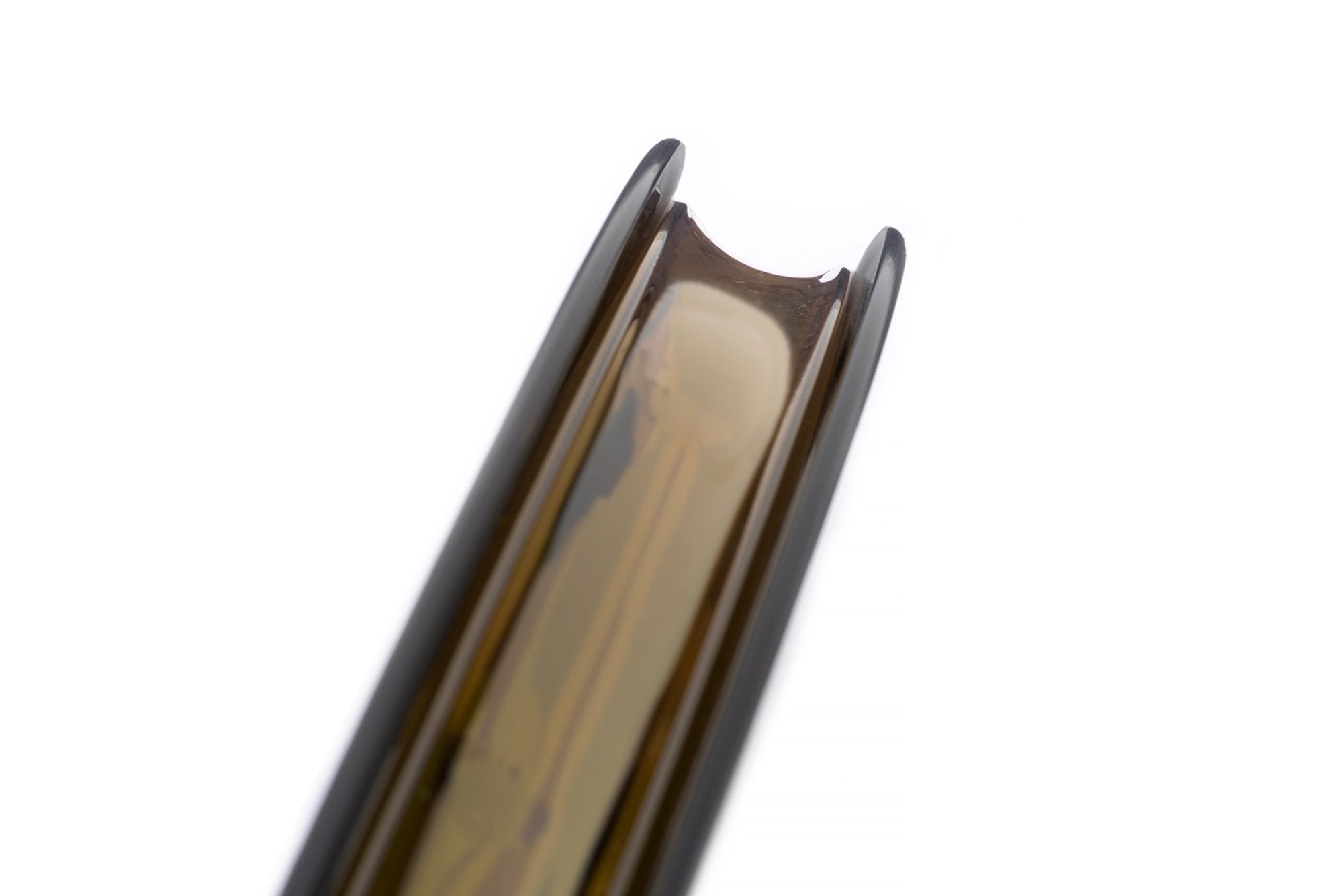

<h1>Rim Bed</h1><i>H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>

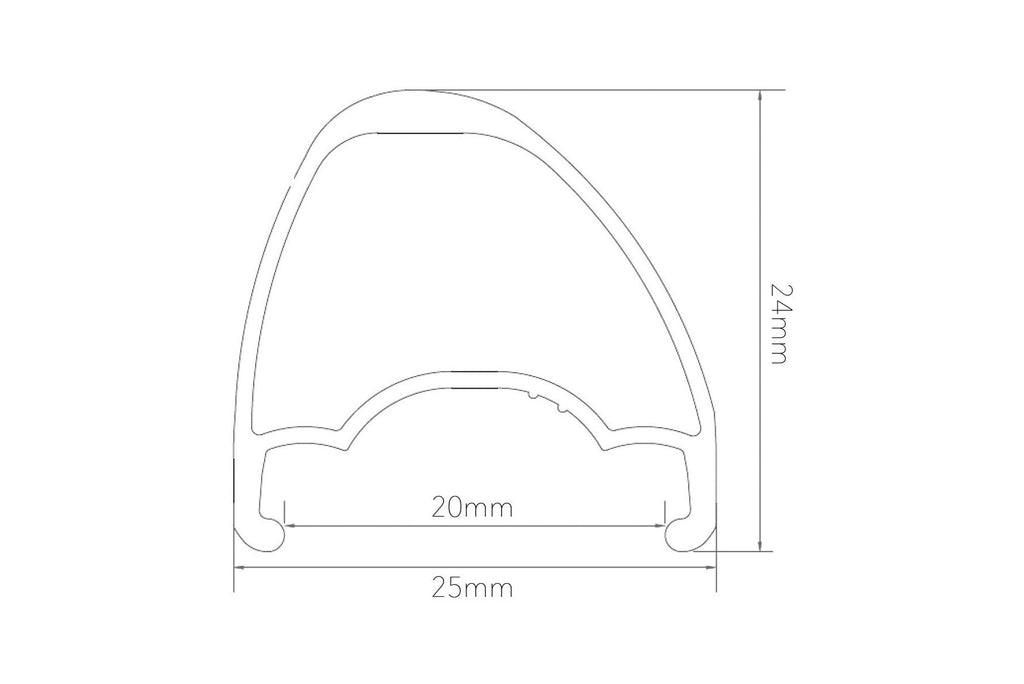

<h1>Rim Profile</h1>
<h1>Rims</h1><i>A strong and lightweight 6061-T6 heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is disc specific which allows higher-strength to weight as no reinforcement is required for a braking surface. The extra wide rim at 25mm (20mm internal) which creates a great tyre profile with wider 25-50mm tyres, giving excellent grip and lower rolling resistance.</i>
<h1>Rim Bed</h1><i>H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>
<h1>Rim Profile</h1>

HUNT 4 Season All-Road Disc Rim | Front/Rear

440g Depth Width ext Width int size
24 mm 25 mm 20 mm 700c

Purpose built for rugged gravel adventure riding, regardless of the weather.

Wide HFR+ (High Fatigue Resistance) heat-treated alloy and increased spoke count, this rim was built for the roughest road and gravel riding.

Tyre size: Optimized for 30 to 45mm tyres; work well with 29mm up to 60mm.

£129
Limited Stock. Available Now.
Front/Rear / 28 - Limited StockItems are selected to ship from us in the week stated. Delivery time is 3-7 days*

International Orders ETA 3-7 days*


Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

More details Right

Fit wide tyres, go ride where you want, enjoy the freedom and high spoke count durability.

24 DEEP | 25 WIDE Ext | 20 Wide Int | 440G

Thanks to disc brakes the line between road bikes and cross bikes has been well and truly blurred. Many of us now rightly see bikes as our keys to freedom; the freedom to roam and find undiscovered routes and just have a blast. We want to go fast on-road, but often the routes we want to ride also lead off-road. The 4 Season All-Road Disc wheelset is designed for all of us. The 4 Season All-Road Disc is now available as a rim only.

High-performance technology that will deliver you to the finish every time. A strong and lightweight 6061-T6 heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is true disc specific which allows higher-strength to weight as no reinforcement is required for a braking surface, it also looks stunning. The rim dimensions are extra wide at 25mm (20mm internal) which creates a great tyre profile with wider 25-45mm tyres, giving excellent grip and lower rolling resistance.

Detailed Specifications

Rim

  • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless rim tape offered separately.
  • 6061-T6 heat-treated aluminium alloy.
  • 28 hole

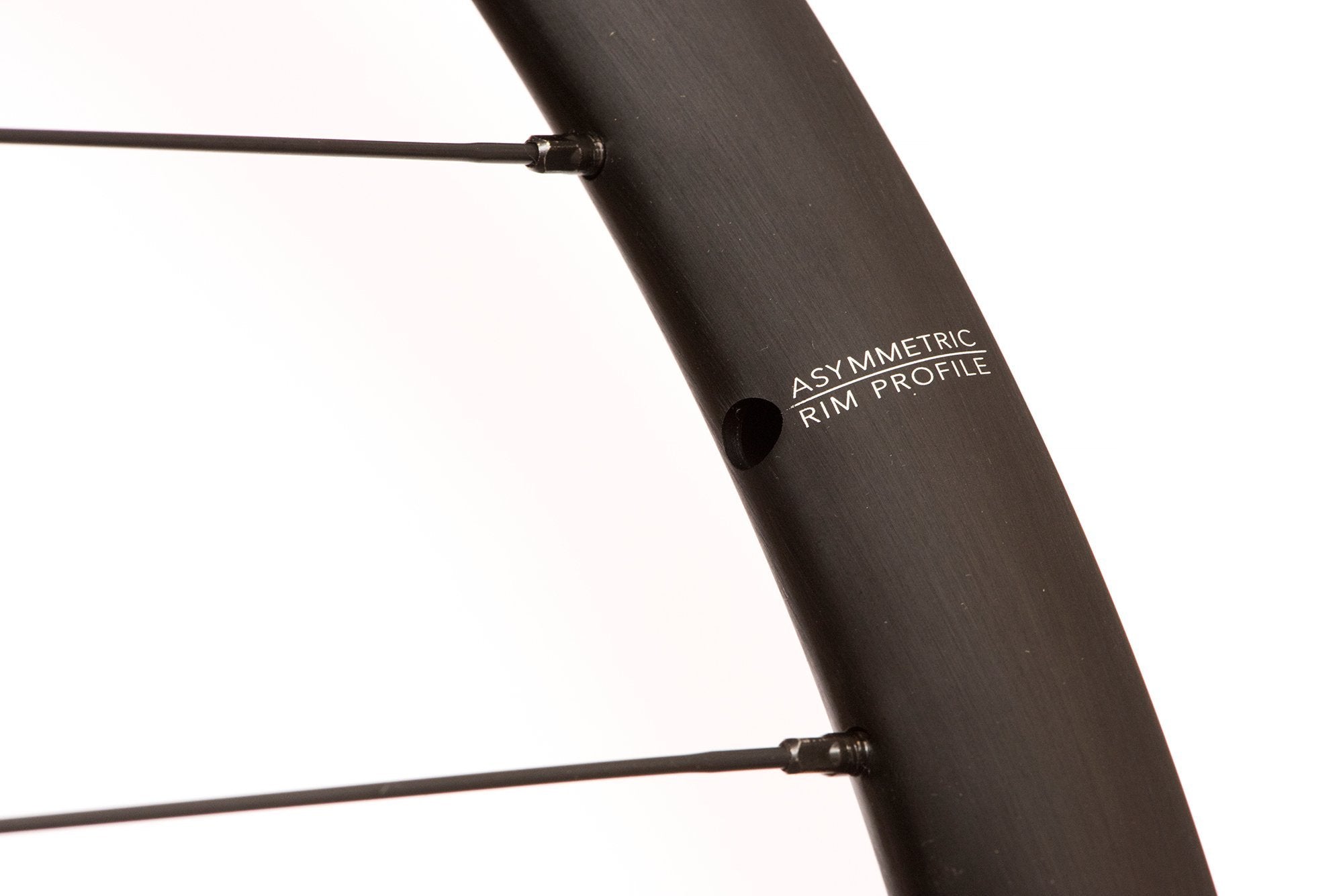

  • Asymmetric to balance spoke tensions
  • Disc-specific tubeless-ready profile
  • 25mm outer and 20mm inner width ideal for 25-45mm tyre widths
  • 24mm depth
  • Matt black anodized finish with matt white heated decals for excellent durability
  • Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres. Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100 psi is more than enough for any rider on road.
  • ERD 596mm
  • Lacing:
    • Front - Cross 2
    • Rear - Cross 2
  • The spoke holes on these rims are offset by 3mm.
  • Recommended spoke tension:
    • Front - 115 -130 kgf
    • Rear - 110 -125 kgf
