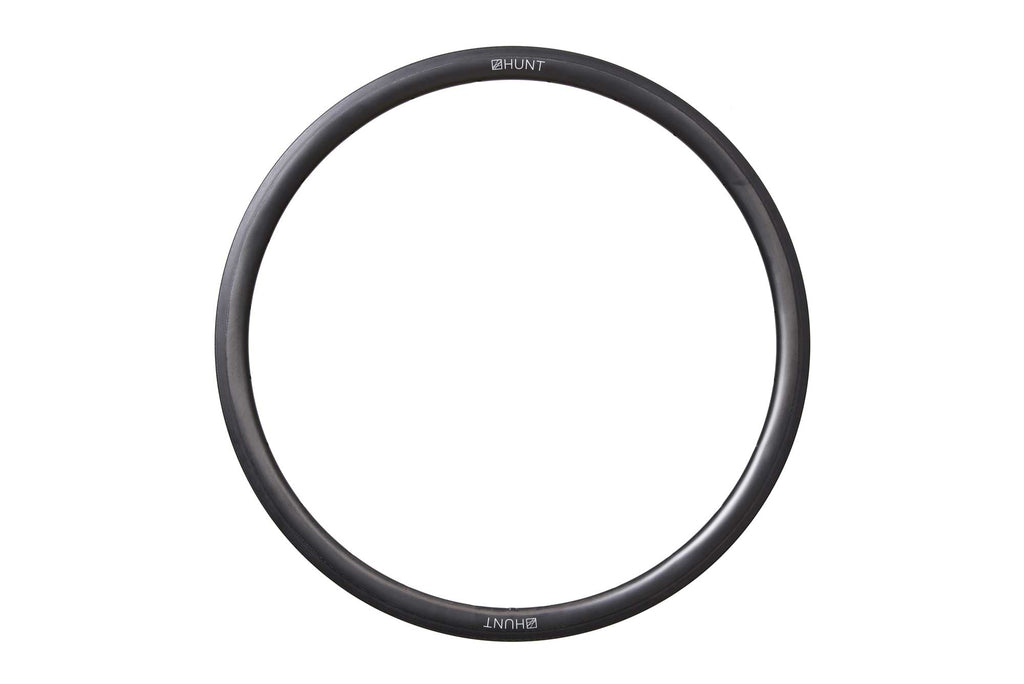

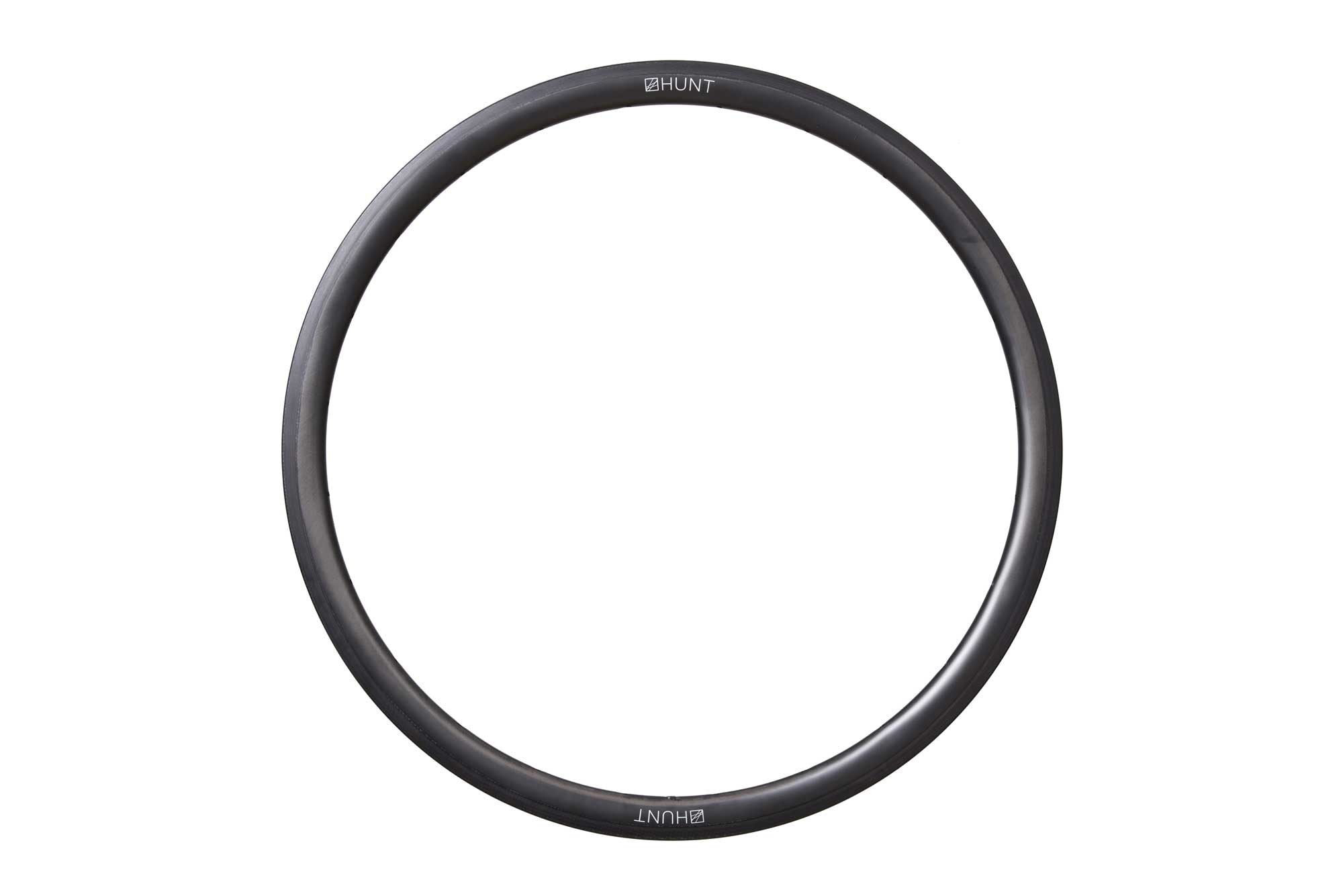

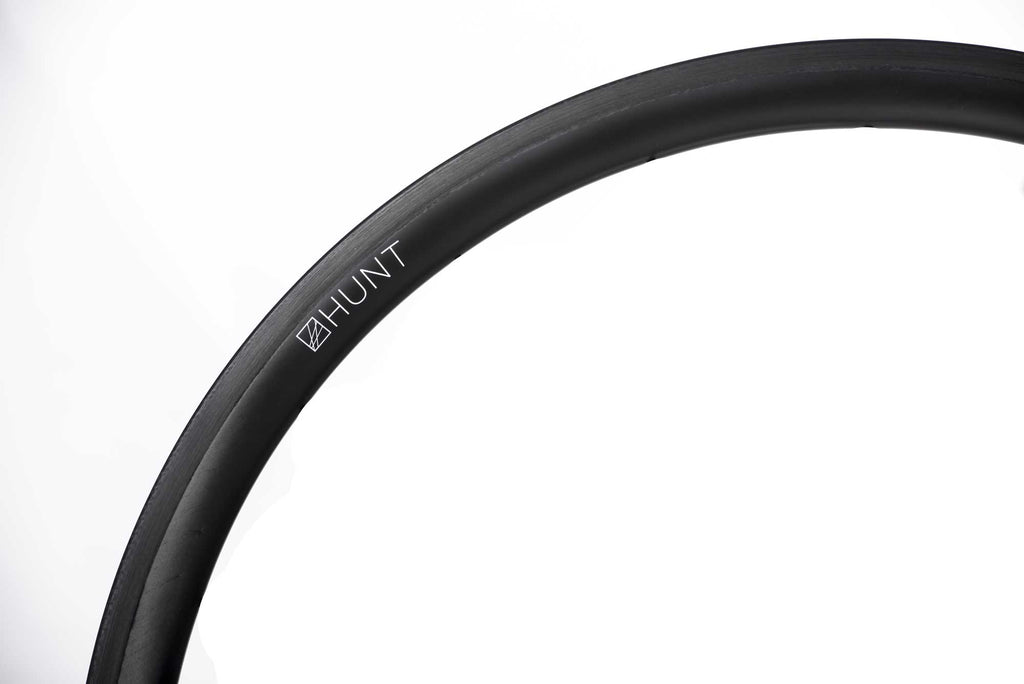

HUNT 36 Carbon Wide Aero V2 Rim | Front

415g Depth Width ext Width int size
36 mm 27 mm 19 mm 700c

A lightweight rim developed to transform how your rim brake bike rides.

The 27mm external carbon rim width opens your tyre profile for better traction and cornering capabilities, while the 36mm depth reduces aerodynamic drag and system weight.

Tyre size: Optimized for 25 to 28mm tyres; work well with 23mm up to 40mm.

£349
Limited Stock. Available Now.
Front / 18 - Limited StockItems are selected to ship from us in the week stated. Delivery time is 3-7 days*

International Orders ETA 3-7 days*


Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

THE ULTIMATE RIM FOR MOUNTAINOUS RIDING. AERO, WIDE, ULTRA-LIGHTWEIGHT, SERIOUSLY FAST FOR CLIMBS AND DESCENTS ALIKE

36 DEEP | 27 Wide Ext | 19 Wide Int | 415G

High-performance technology that will deliver you to the finish every time. A strong and seriously wide yet lightweight carbon rim with an aero-rounded profile for excellent handling and speed. Basalt ceramic fibre brake-track excellent braking on even the longest descents. The rim dimensions are wide at 27mm (19mm internal) which creates a great tyre profile giving excellent grip and lower rolling resistance.

High TG (glass transition temperature) resin provides extremely reliable braking and durability for longer descents. We select our rim manufacturers for their expertise in rim design, resin technology and resistance to braking heat build up. We also laboratory test all our rims to very high braking temperatures (200 degree C +) to push their limits. The high temperature resins that we use for our HUNT Griptec Braking surfaces and rims are designed, and do perform, to extremely high levels of braking heat build-up. As well as this lab testing we also ride test our carbon rim brake wheels with regular testing trips in the Alps to ensure the wheels are put through their paces on long, steep and fast descents such as the Galibier, Telegraph and Croix de Fer. We have even set several top 10 Strava times on famously taxing heavy braking twisty descents on our rim brake carbon wheels, including the The Lacets de Montvernier - please click here to see the segment details and watch the video.

Detailed Specifications

Rim

  • Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless rim tape offered separately.
  • Toray T700/T800 unidirectional and 3K weave carbon-fibre with 3K weave bed and spoke areas.
  • 27mm outer and 19mm inner width ideal for 23-45mm tyre widths
  • 36mm deep super wide rounded aero section
  • Griptec basalt ceramic fibre brake-track
  • Matt black base finished with gloss black and white contrasting graphics.
  • Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres. Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100psi is more than enough for any rider on road. Please do not exceed the maximum pressure stated on your tyre.
  • ERD 569mm
  • Lacing: Radial
  • Recommended spoke tension: 95-110 kgf
