Hunt 4 Season Gravel Disc X-Wide Rim
Hunt 4 Season Gravel Disc X-Wide Rim
Hunt 4 Season Gravel Disc X-Wide Rim
<h1>Rims</h1><i>A strong and lightweight 6066-T6 heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is disc specific which allows higher-strength to weight as no reinforcement is required for a braking surface. The extra wide rim at 29mm (25mm internal) which creates a great tyre profile with wider 35-50mm tyres, giving excellent grip and lower rolling resistance.</i>

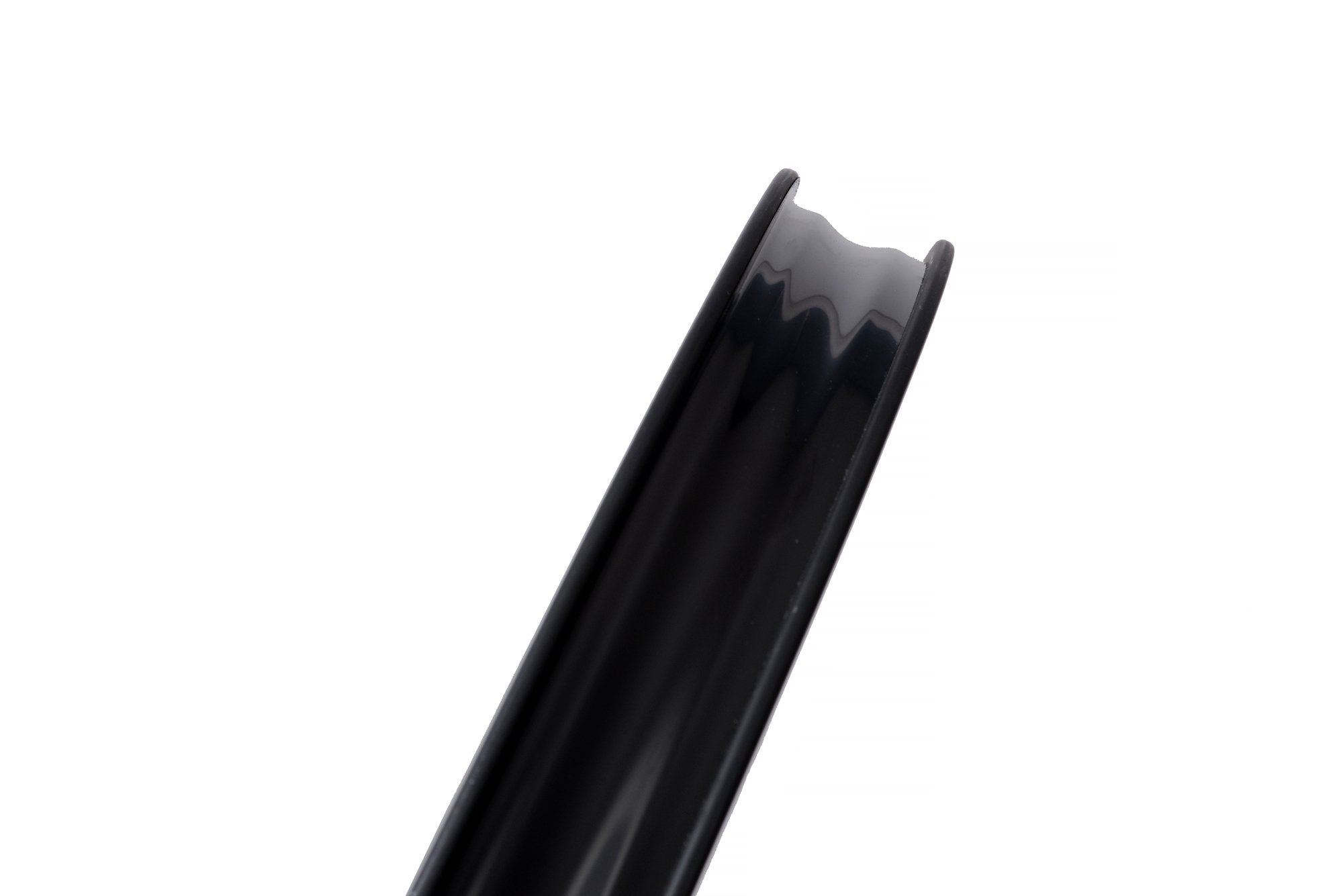

<h1>Rim Bed</h1><i>H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>

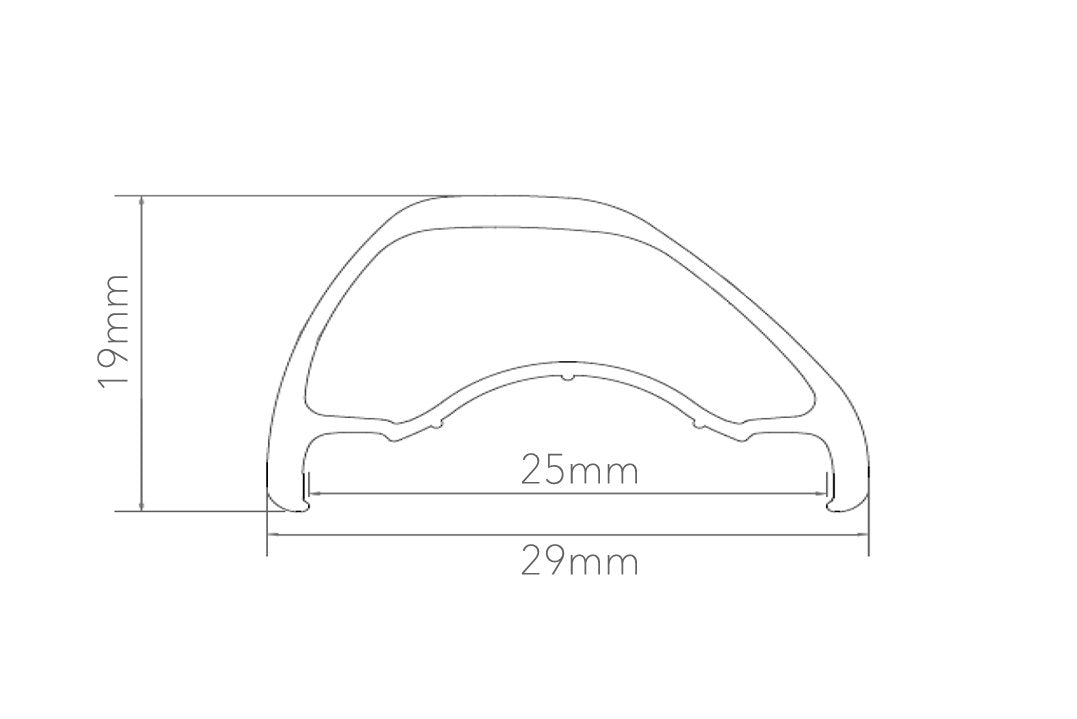

<h1>Rim Profile</h1>
<h1>Rims</h1><i>A strong and lightweight 6066-T6 heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is disc specific which allows higher-strength to weight as no reinforcement is required for a braking surface. The extra wide rim at 29mm (25mm internal) which creates a great tyre profile with wider 35-50mm tyres, giving excellent grip and lower rolling resistance.</i>
<h1>Rim Bed</h1><i>H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures off road.</i>

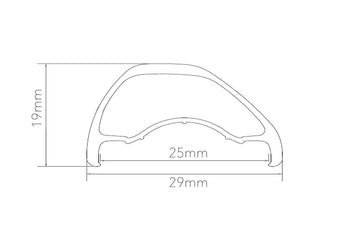

<h1>Rim Profile</h1>

Hunt 4 Season Gravel Disc X-Wide Rim

OUR EVER-POPULAR 4 SEASON GRAVEL DISC RECEIVES THE XW TREATMENT. 25MM RIM BED OPTIMISED FOR 35C+ TIRES, FOR PROPERLY BURLY OFF-ROAD HAMMERING.

£129
Limited Stock. Available Now.
Front 28 Hole - Limited Stock
Rear 28 Hole - Limited StockItems are selected to ship from us in the week stated. Delivery time is 3-7 days*

International Orders ETA 3-7 days*


Our wheels are in high demand, don't miss out. Order now.

*If shown in stock

More details Right

Our ever-popular 4 Season Gravel Disc receives the XW treatment. 25mm rim bed optimised for 35c+ tires, for properly burly off-road hammering.

19 DEEP | 29 WIDE Ext | 25 Wide Int | 495G

The 4 Season Gravel Disc has been a staple in our range from very early on. As a more burly version of the 4 Season Disc (owing to higher spoke count and wider rim) it was a great option for those wanting to hit the path less travelled. Fast-forward a couple of years, and the demands of gravel riding have taken on a whole new dimension, with riders seeking trails and routes you'd formerly only consider a mountain bike for. Enter the X-Wide, the wheelset designed to shine where the boundaries are blurred... The 4 Season Gravel Disc X-Wide is now available as rim only.

High-performance technology that will deliver you to the finish every time. A strong and lightweight 6066-T6 (+34% tensile strength vs 6061-T6) heat-treated rim features an asymmetric shape which is inverted from front to rear to provide balanced higher spoke tensions meaning your spokes stay tight for the long term. The rim profile is true disc specific which allows higher-strength to weight as no reinforcement is required for a braking surface, it also looks stunning. The rim dimensions are extra wide at 29mm (25mm internal) which creates a great tire profile with wider 35-50mm + tires, giving excellent grip and lower rolling resistance.

Detailed Specifications

Rim

  • Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Tubeless rim tape offered separately.
  • 6066-T6 heat-treated aluminum alloy. (+34% tensile strength vs 6061-T6
  • 28 hole
  • Asymmetric to balance spoke tensions
  • Disc-specific tubeless-ready profile
  • 29mm outer and 25mm inner width ideal for 35-50mm + tire widths
  • 19mm depth
  • Matt black anodized finish with matt white heated decals for excellent durability
  • Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100 psi is more than enough for any rider on road.
  • The maximum pressure of your tire may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tire
  • Suitable for tires from 23mm up to 50mm wide.
  • ERD - 603mm
  • Lacing:
    • Front - Cross 2
    • Rear - Cross 2
  • Recommended spoke tension:
    • Front - 115-130 kgf
    • Rear - 110-125 kgf
